12PSB Mechanical Pump Testing Machinery Europe2 Fuel Injection Pump Testing Bench With CRT Screen Display and LED Digital Screen
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
12PSB Europe 2 Fuel Injection Pump Test Bench Inline Pump Testing Machine for Truck Repair Service
-
11KW 15KW 18.5KW 12PSB -BFB Fuel Injection Pump Tester Europe 2 Pump Testing Machine for Truck Repair Service
-
11KW 15KW 18.5KW 12PSB Diesel Injection Pump Test Bench With Touch Screen Max 12 Cylinders Pump Testing Machine
-
11KW 15KW 18.5KW 12PSB-BFB Fuel Injection Pump Testing Machinery With Touch Screen Diesel Pump Tester for Truck Repairing
-
12PSB-BFB 11KW, 15KW, 18.5KW Diesel Injection Mechanical Pump Tester VE Pump Testing Machinery With Touch Screen
-
11KW 15KW 18.5KW 12PSB-BFB Diesel Injection Pump Test Bench With Touch Screen Mechanical Pump Tester
Product Description

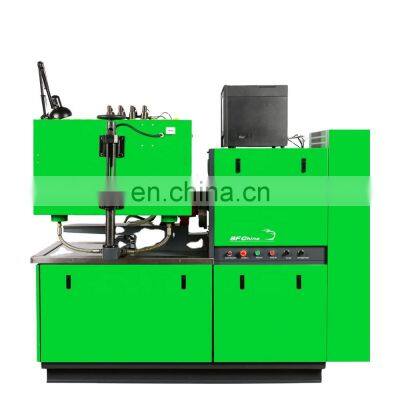

12PSB Mechanical pump testing machinery Europe2 fuel injection pump testing bench with CRT screen display and LED digital screen
Product display
Technical Parameters
Beifang 12PSB-BFB diesel pump testing equipment | ||
Name | BFB diesel fuel injection pump test bench | |
Main motor power | 15kw | |
Host machine source | 380V/50-60HZ 3Phase(220V/50-60HZ 1Phase,220V/50-60HZ 3Phase) | |
Test bench rotated speed | 0-4000 rpm/min | |
Oil supply | 10L/min , 20L/min | |
Oil supply high pressure | 0-3.5Mpa | |
Oil supply low pressure | 0-0.35Mpa | |
Air supply pressure range | 0-0.18Mpa | |
DC power | 12V or 24V(Allow short circuit) | |
Shaft centre height | 125 MM | |
Test bench height from the ground | 830 MM | |
Oil tank capacity | 50 L | |
Fuel oil temperature | 40±2℃ | |
Overall size(mm) | 2150*750*1850 | |
Weight(kg) | 950 | |
Features
1.Three styles, two language screen interface for thee operator to choose.
2.The main motor frequency control, manual and automatic two modes of operation.
3.12V, 24V DC power supply for solenoid calve drive and detection.
4.The test oil temperature automatic control, can reduce the temperatire on the amount of oil precision.
5.Automatic mode can be multi-speed preset speed. Low noise,high pressure supply system.
2.The main motor frequency control, manual and automatic two modes of operation.
3.12V, 24V DC power supply for solenoid calve drive and detection.
4.The test oil temperature automatic control, can reduce the temperatire on the amount of oil precision.
5.Automatic mode can be multi-speed preset speed. Low noise,high pressure supply system.
Function
1.Test the speed of each cylinder under the oil supply;
2.Statically check the fuel tank time;
3.Check mechanical governor performance;
4.Distribute pump solenoid valve test;
5.The injection pump sealing test;
6.Measurement distribution pump body pressure, return pressure;
7.Check the pressure compensator performance;
8.Check the pneumatic governor performance;
9.Check the air film governor negative pressure performance.
2.Statically check the fuel tank time;
3.Check mechanical governor performance;
4.Distribute pump solenoid valve test;
5.The injection pump sealing test;
6.Measurement distribution pump body pressure, return pressure;
7.Check the pressure compensator performance;
8.Check the pneumatic governor performance;
9.Check the air film governor negative pressure performance.
Packing & Delivery
Packaging : wooden case with water-proof membrane
Delivery: within 7 days after receiving the deposit
Delivery: within 7 days after receiving the deposit
Our Services
1. Common rail injector technical support ;
2. We have training center for teaching common rail system service;
3. Factory sell directly.
Welcome to visit our Factory.
2. We have training center for teaching common rail system service;
3. Factory sell directly.
Welcome to visit our Factory.
