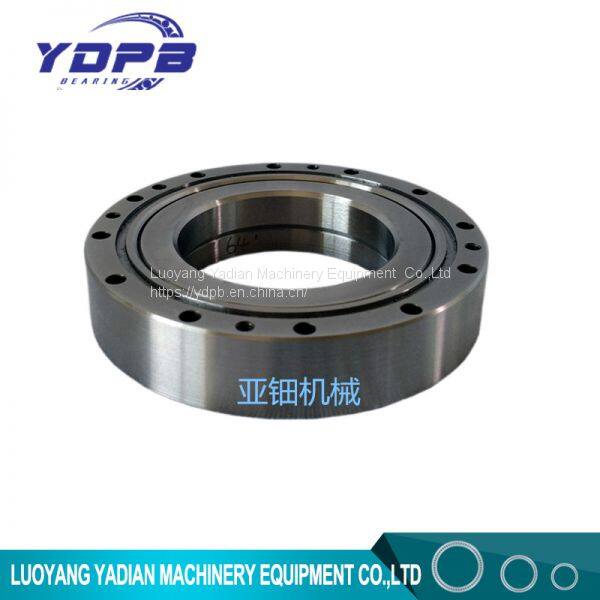

SHG50 Crossed Roller Bearing China Shf Harmonic Drive Special for Robot Suppliers
US$ 1 - 100000
/ Piece
1 Piece(Min. Order)
- shanghai
- T/T L/C
- 7 days
You May Like
-
XU050077 xu Series Crossed Cylindrical Roller Slewing Ring Bearings Brand
-
XU060094 Bearing China Cross Roller Slewing Ring Manufacturers YDPB
-
XU080120 Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
-
XU080149 Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
-
XU120179 Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
-
XU120222 Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
Product Details
| Brand Name | OEM | Place of Origin | China | |
| Model Number | SHG50 | Number of Row | Single Row | |
| Precision Rating | P5 | Outside Diameter | 9, 135 | |
| Bore Size | 55, 160 |
Product Description
Harmonic drive use crossed roller bearing
SHF(SHG) series(Outer ring integraty,inner ring integraty)
Outer ring and inner ring are all integraty structure,mounting will have no affect on performance ,it can abtain stable running accurancy and torque.suitable for every kinds of SHF(SHG) series harmonic drives.
SHG50 crossed roller bearing Parameters
| Bearings Model | Dimension（mm） | Basic Load rating（KN） | Weight | ||||||||||
| d | D | T | D1 | D2 | D3 | d1 | d2 | d3 | t | Cr | Cor | Kg | |
| SHF(SHG)40 | 108 | 170 | 30 | 158 | 158 | 122 | 12-Ф6.6 | 6-M4 | (16-M6)+(4-M5) | 8/10 | 42.1 | 68.4 | 2.79 |
| SHF(SHG)50 | 135 | 214 | 36 | 200 | 200 | 154 | 12-Ф9 | 6-M5 | (16-M8)+(8-M5) | 10/12 | 69.8 | 121.6 | 5.19 |
Lubrication
Bearing with high quality compound lithium-based grease in factory,so under normal using condition there is no need to add grease.but for bearing running ,in the inital stage ,the frictional torque will increase temporarily, frictional torque will be stable when grease uniformly adhere to raceway and roller.
If the bearing using condition change,general grease can not meet your requirements ,pls contact us.
Mounting Method
