XU160405 Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
US$ 1 - 100000
/ Piece
1 Piece(Min. Order)
- shanghai
- T/T L/C PayPal
- 7 days
You May Like
-
XU080430 Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
-
XU300515 Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
-
384x646x86mm Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
-
380x480x26mm Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
-
336x474x46mm Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
-
215.9x311x25.4mm Crossed Roller Bearings Single Row Crossed Rollers Slewing Bearing Suppliers
Product Details
| Brand Name | OEM | Place of Origin | China | |
| Model Number | XU160405 | Number of Row | Single Row | |
| Precision Rating | standard | Outside Diameter | 40, 385 | |
| Bore Size | 55, 515 |
Product Description
Structure
Solid inner ring and outer ring structure ,with mounting holes ,without gear,with two side seals,cross cylindrical roller slewing rings bearing,suitable for inner ring and outer ring rotate.
Series Model NO..
XU050077,XU060094,XU060111,XU080120,XU080149,XU120179,XU120222,XU160260,XU080264,XU160405,XU080430,XU300515.
Related moldes.
XSU080168bearings,XSU080188bearings,XSU080218bearings,XSU080258bearings,XSU080318bearings,XSU080398bearings,
Applications
Vertical machining center,vibratory grinding unit,tandem roller etc. high precision parts

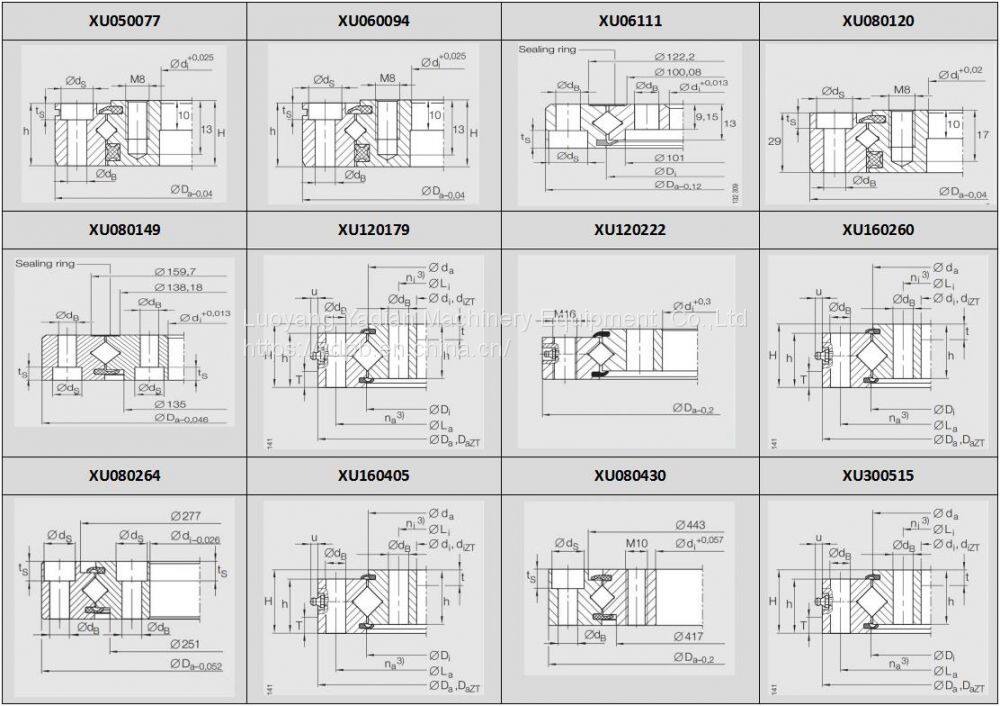

Structure and Parameters:
| Bearings Model | Boundary Dimensions | Basic load rating（axial） | Basic load rating（radial） | Weight | |||||||||
| Inner ring | Outer ring | Roller pitch circle diameter | Width | φLa | na | φLi | ni | Ca | C0a | Cr | Cor | Kg | |
| d | D | dp | B | KN | KN | KN | KN | ||||||
| (mm) | (mm) | (mm) | (mm) | ||||||||||
| XU160405 | 336 | 474 | 405 | 46 | 450 | 30-φ14 | 360 | 30-φ14 | 270 | 550 | 172 | 270 | 25 |
| XU080430 | 380 | 480 | 430 | 26 | 462 | 20-φ9 | 398 | 20-M10 | 110 | 280 | 70 | 138 | 12 |
| XU300515 | 384 | 646 | 515 | 86 | 598 | 18-φ26 | 432 | 18-φ26 | 720 | 1370 | 455 | 670 | 115 |
More information ,pls check
