F50 Flexible Deformation Bearing for Harmonic Drive Reducer 88.9x122.71x18.09mm F65 Bearing
US$ 1 - 300
/ Piece
1 Piece(Min. Order)
- LUOYANG
- T/T PayPal Other
- 3 days
You May Like
-
M25 Flexible Bearing for Harmonic Drive Reducer Full Balls High Rigidity 45.212X61.341X9.015/6.35mm
-
M32 Flexible Robots Bearing for Harmonic Drive Reducer Full Balls With Higher Rigidity 58.928x79.756x11.81/8.64mm
-
F14 Flexible Bearing for Harmonic Drive Reducer 25.07x33.896x6.095/6.35mm
-
F20 Flexible Bearing for Harmonic Drive Reducer35.56x49.073x7.24/8.13mm
-
F17 Flexible Bearing for Harmonic Drive Reducer 30.3x41.722x 6.16/6.68mm
-
904 Flexible Robots Bearing for Harmonic Drive Reducer 18.8x25x4mm
Product Details
| Brand Name | YDPB | Place of Origin | China | |
| Model Number | F50 | Number of Row | Single Row | |
| Seals Type | no seals | Precision Rating | P5 P4 P6 | |
| Outside Diameter | 33, 300 | Bore Size | 10, 220 |
Product Description

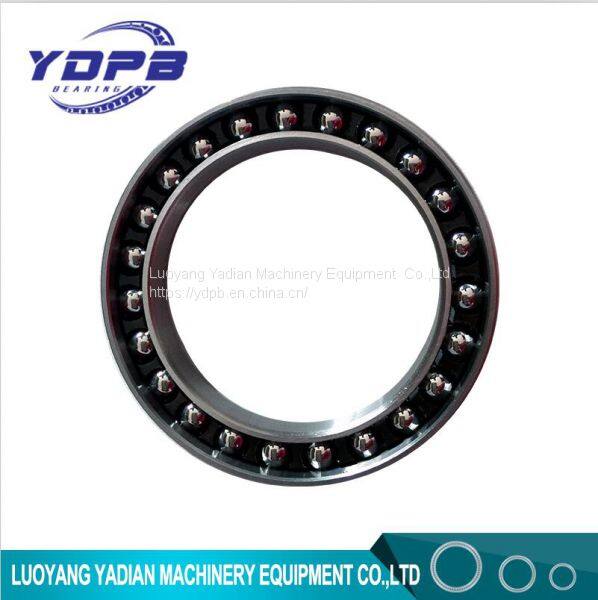

Industrial robots bearings
Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.
Note: Some bearings we have use new structure( with cage and cover,convenient for you to install)
Other Dimension
Industrial Robots Use Flexible Bearings Regular models
With cage

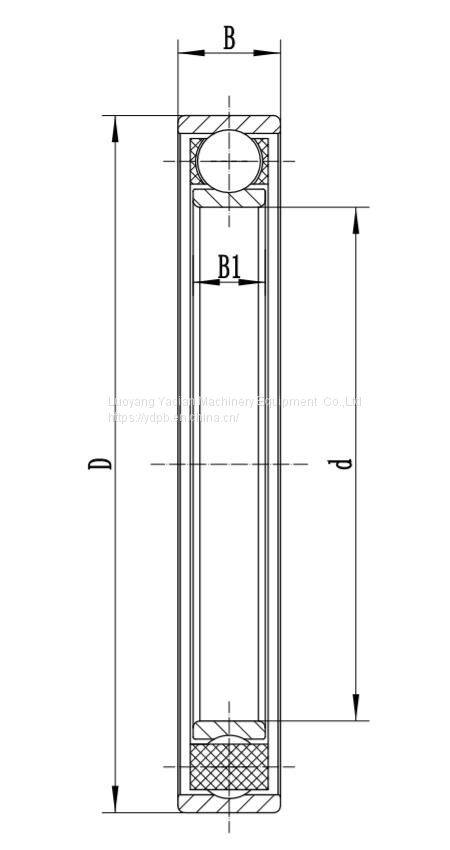

| Bearings Model | Outer ring | Inner ring | Dynamic load rating | Static load rating | Radial Deformation | Input rotate speed | Output torque | ||
| Model | D | B | d | B1 | Cr | Cor | Max. mm | r/min | N.m |
| F45 | 110.4 | 16.28 | 79.4 | 11.42 | 40.2 | 40.56 | 0.8 | 3000 | 320 |
| F50 | 122.71 | 18.09 | 88.9 | 12.7 | 45.03 | 46.09 | 1 | 3000 | 450 |
Note: Full balls flexible bearing with high rigidity ,if need,pls contact us .
