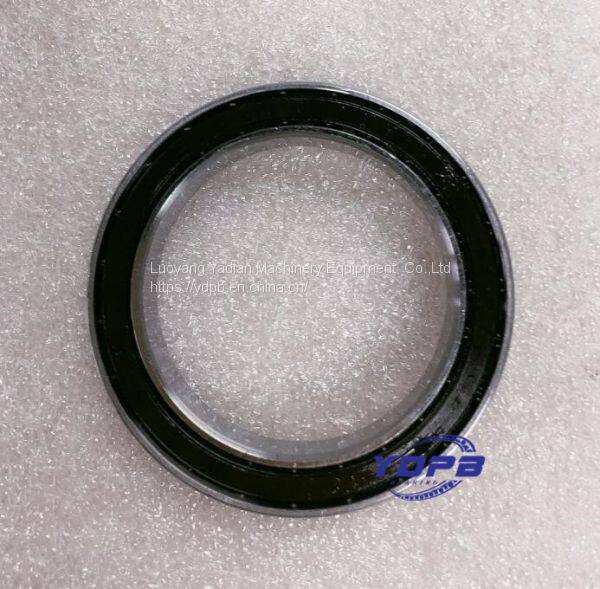

45.7x61.8x9.5mm Flexible Robots Bearing for Harmonic Drive Reducer
US$ 1 - 300
/ Piece
1 Piece(Min. Order)
- LUOYANG
- T/T PayPal Other
- 3 days
You May Like
-
48x63x9.7mm Flexible Robots Bearing for Harmonic Drive Reducer Ydpb Flexible Deformation Bearings High Precision
-
60x80x12mm Flexible Robots Bearing for Harmonic Drive Reducer Ydpb Flexible Deformation Bearings High Precision
-
57x75x12mm Flexible Robots Bearing for Harmonic Drive Reducer Ydpb Flexible Deformation Bearings High Precision
-
60x80x12mm Flexible Robots Bearing for Harmonic Drive Reducer Ydpb Flexible Deformation Bearings
-
70x95x15mm Flexible Robots Bearing for Harmonic Drive Reducer Ydpb Flexible Deformation Bearings
-
75x100x15mm Flexible Robots Bearing for Harmonic Drive Reducer Ydpb Flexible Deformation Bearings
Product Details
| Brand Name | YDPB | Place of Origin | China | |
| Model Number | 45.7x61.8x9.5mm | Number of Row | Single Row | |
| Seals Type | no seals | Precision Rating | P5 P4 P6 | |
| Outside Diameter | 33, 300 | Bore Size | 10, 220 |
Product Description
Flexible bearings for harmonic reducer are mainly used in harmonic reducer. Harmonic transmission includes three basic components: wave generator, flexible wheel, rigid wheel and flexible bearing.
Flexible bearings are the core components, and the transmission meets the performance requirements of high deceleration ratio through the elastic deformation of bearings.
| Bearings Model | Outer ring | Inner ring | Dynamic load rating | Static load rating | Radial Deformation | Input rotate speed | Output torque | ||
| Model | D | B | d | B1 | Cr | Cor | Max. mm | r/min | N.m |
| 25 | 4 | 18.8 | 4 | 3.75 | 3.12 | 0.2 | 3000 | 2 | |
| 32 | 5 | 24 | 5 | 4.74 | 3.75 | 0.2 | 3000 | 6 | |
| 40 | 6 | 30 | 6 | 7.12 | 5.83 | 0.3 | 3000 | 16 | |
| 48.2 | 8 | 35.8 | 8 | 9.93 | 8.36 | 0.3 | 3000 | 30 | |
| 50 | 8 | 37 | 8 | 12.63 | 12 | 0.3 | 3000 | 30 | |
| 60 | 9 | 45 | 9 | 12.89 | 11.55 | 0.4 | 3000 | 50 | |
| 61.8 | 9.5 | 45.7 | 9 | 12.89 | 11.55 | 0.4 | 3000 | 50 | |
| 63 | 9.7 | 48 | 9.2 | 12.89 | 11.55 | 0.4 | 3000 | 50 | |
| 80 | 12 | 60 | 12 | 27.19 | 28.18 | 0.5 | 3000 | 120 | |
| 75 | 12 | 57 | 12 | 14.76 | 13.18 | 0.5 | 3000 | 7.5 | |
| 80 | 13 | 60 | 13 | 15.51 | 14.44 | 0.5 | 3000 | 12 | |
| 95 | 15 | 70 | 15 | 22.38 | 21.57 | 0.6 | 3000 | 20 | |
| 100 | 15 | 75 | 15 | 26.4 | 25.67 | 0.6 | 3000 | 25 | |
| 120 | 18 | 90 | 18 | 34.7 | 34.94 | 1 | 3000 | 45 | |
| 150 | 24 | 110 | 24 | 43.55 | 45.63 | 1 | 1500 | 80 | |
| 160 | 24 | 120 | 24 | 57.02 | 57.75 | 1 | 1500 | 120 | |
| 175 | 30 | 130 | 30 | 81.59 | 86.1 | 1 | 1500 | 170 | |
| 200 | 30 | 150 | 30 | 91.6 | 102.67 | 1 | 1500 | 200 | |
| 220 | 35 | 160 | 35 | 115.66 | 127.59 | 1.25 | 1500 | 220 | |
| 240 | 35 | 180 | 35 | 130.04 | 146.47 | 1.5 | 1500 | 250 | |
| 250 | 40 | 190 | 40 | 139.96 | 160.42 | 1.5 | 1500 | 350 | |
| 280 | 45 | 210 | 45 | 173.15 | 210.91 | 1.5 | 1500 | 400 | |
| 300 | 45 | 220 | 45 | 181.72 | 231 | 1.5 | 1500 | 500 | |
Note: Full balls flexible bearing with high rigidity ,if need,pls contact us .
