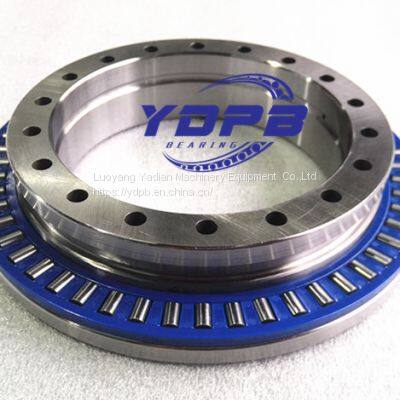

YRT50 Bearing With Nylon Cage for Rotary Tables in Machine Tools
- Shanghai
- T/T L/C D/P D/A
- 7 days
You May Like
-
YRT50 Bearing Anti-corrosion Custom Made for Rotary Tables in Automation Systems
-
YRT50VSP High Accuracy Axial Radial Rotary Table Bearings for Rotary Table
-
YRT Axial Radial Bearing YRC50 Rotary Table Bearings
-
YRT80P4 Rotary Table Thrust Bearings 80x146x35mm for Precision Rotary Grinding Machines
-
YRT80P2 Ina Rotary Table Bearings 80x146x35mm Industrial Robotic Arms Bearings
-
YRT80VSP Bidirectional Axial-radial Precision Roller Bearings for Rotary Grinding Machines
Product Details
| Brand Name | YDPB | Place of Origin | China | |
| Model Number | YRT50P2 | Number of Row | Double Row | |
| Seals Type | no | Precision Rating | P2 | |
| Outside Diameter | 100, 1200 | Bore Size | 150, 1500 |
Product Description

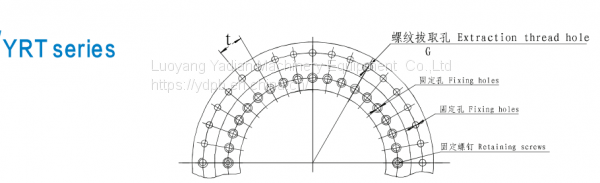

YRT bearings (rotary table bearings) axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.
YRT bearing precsion include P5 P4 P2 and VSP
We also have YRTS(High speed rotary table bearings),YRTM( with angle measuring systems) and dimension custom made.
Applications:
?Precision machine tools
?precision Turntable, NC rotary table
?Rotation part of Machine tools
?Inspection instrument,Medical equipment
?Indexing plate of other precision machines etc
Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.
Main parameters

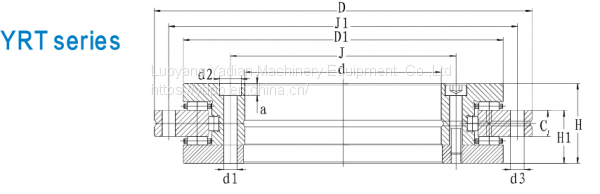

Bearing Model number | Boundary dimensions | Basic load rating(KN) | Limiting Speed (Grease) | Bearing frictional torque (Nm) | Weight (kg) | Axial/Radial Runout (μm) | ||||||||||
| Axial load | Radial load | |||||||||||||||
| d | D | H | H1 | C | D1 | J | J1 | dynamic | static | dynamic | static | |||||
| unit: mm | Ｃａ | Coa | Cr | Cor | r/min | |||||||||||
| YRT50 | 50 | 126 | 30 | 20 | 10 | 105 | 63 | 116 | 38 | 158 | 28.5 | 49.5 | 440 | 2.5 | 1.6 | 2 |
| YRT80 | 80 | 146 | 35 | 23.35 | 12 | 130 | 92 | 138 | 56 | 255 | 42.5 | 100 | 530 | 3 | 2.4 | 3 |
| YRT100 | 100 | 185 | 38 | 25 | 12 | 160 | 112 | 170 | 76.5 | 415 | 47.5 | 120 | 430 | 3 | 4.0 | 3 |
| YRT120 | 120 | 210 | 40 | 26 | 12 | 184 | 135 | 195 | 102 | 540 | 52 | 143 | 340 | 7 | 5.3 | 3 |
| YRT150 | 150 | 240 | 40 | 26 | 12 | 214 | 165 | 225 | 112 | 630 | 56 | 170 | 320 | 10 | 6.2 | 3 |
| YRT180 | 180 | 280 | 43 | 29 | 15 | 244 | 194 | 260 | 118 | 710 | 69.5 | 200 | 280 | 12 | 7.7 | 4 |
| YRT200 | 200 | 300 | 45 | 30 | 15 | 274 | 215 | 285 | 120 | 765 | 81.5 | 220 | 260 | 14 | 9.7 | 4 |
| YRT260 | 260 | 385 | 55 | 36.5 | 18 | 345 | 280 | 365 | 160 | 1060 | 93 | 290 | 200 | 20 | 18.3 | 6 |
| YRT325 | 325 | 450 | 60 | 40 | 20 | 415 | 342 | 430 | 275 | 1930 | 120 | 345 | 170 | 40 | 25 | 6 |
| YRT395 | 395 | 525 | 65 | 42.5 | 20 | 486 | 415 | 505 | 300 | 2280 | 186 | 655 | 140 | 55 | 33 | 6 |
| YRT460 | 460 | 600 | 70 | 46 | 22 | 560 | 482 | 580 | 355 | 2800 | 200 | 765 | 120 | 70 | 45 | 6 |
| YRT580 | 580 | 750 | 90 | 60 | 30 | 700 | 610 | 720 | 490 | 4250 | 228 | 965 | 80 | 140 | 89 | 10 |
| YRT650 | 650 | 870 | 122 | 78 | 34 | 800 | 680 | 830 | 1040 | 8000 | 490 | 1800 | 65 | 200 | 170 | 10 |
| YRT850 | 850 | 1095 | 124 | 80.5 | 37 | 1018 | 890 | 1055 | 1000 | 8650 | 455 | 1730 | 50 | 300 | 253 | 12 |
| YRT950 | 950 | 1200 | 132 | 86 | 40 | 1130 | 990 | 1160 | 1290 | 11400 | 530 | 2040 | 40 | 600 | 312 | 12 |
| YRT1030 | 1030 | 1300 | 145 | 92.5 | 40 | 1215 | 1075 | 1255 | 1380 | 12000 | 620 | 2650 | 39 | 800 | 375 | 15 |
More information ,pls contact us ~
