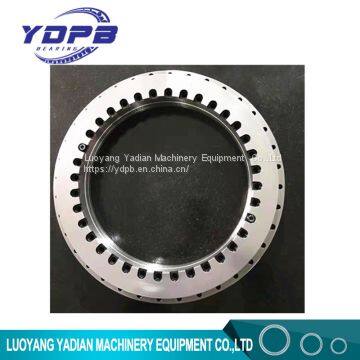

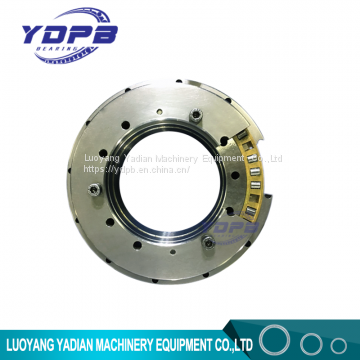

YRT120P4 High Precision Rotary Table Bearing Combined Needle Roller Bearings
- Shanghai
- T/T L/C D/P D/A
- 7 days
You May Like
-
YRT150P4 Rotary Table Bearings Multi-directional Loads For Precision Rotary Tables
-
YRT200P4 Rotary Table Bearings Skf for NC Rotary Table YRT Turntable Bearing
-
YRT260P4 Bearing Radial and Axial Loads Yrt Rotary Bearings YDPB Bearing
-
YDPB YRT325 China Axial and Radial Bearing 325X450X60mm Bearing for ROTARY TABLES FOR MACHINE TOOLS
-
YRT100P2 Mechanical Rotary Tables Bearings China YRT Bearings Manufacturer
-
YRT100VSP CNC Rotary Table Indexer Bearings Luoyang Bearings China
Product Details
| Brand Name | YDPB | Place of Origin | China | |
| Model Number | YRT120 | Number of Row | Double Row | |
| Seals Type | no | Precision Rating | P4 | |
| Outside Diameter | 100, 1200 | Bore Size | 150, 1500 |
Product Description
YRT bearings structure
It consists of a thrust/radial housing washer,a thrust/radial shaft washer,two axial needle roller and cage assemblies and cage assemblies and a group of radial cylindrical roller, housing washer and shaft washer have equally spaced fitting bolt holes.
YRT bearings advantages
This kind of bearings have high axial load and radial load ,and high tilting rigidity and high precision.
YRT bearings applications
This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration, this bearing requires higher quality of the parts to match it .you can control screw tightening torque when install it.

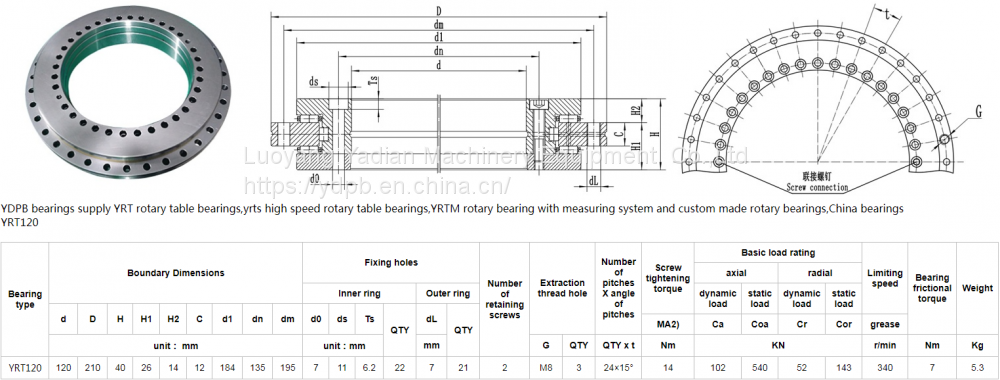

YRT120 Parameters
YRT bearings Different cage material we have
1.Brass cage bearing
2.Nylon cage with lower cost
4.Custom made YRT bearing with Gear ,dimesion custom made also available
