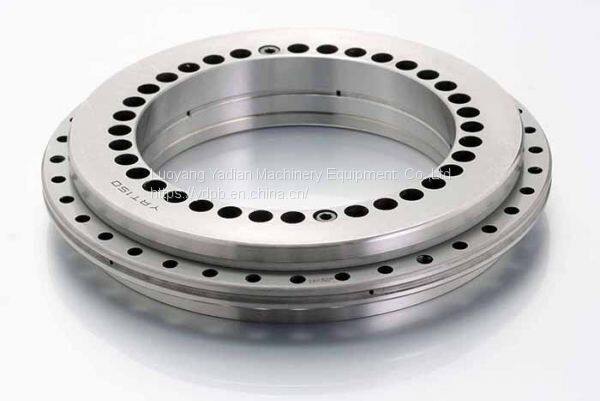

YRT1030 Custom Made Rotary Table Bearing Precision Cylindrical Roller Bearings For NC Rotary Tables
US$ 100 - 15000
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T L/C D/P D/A
- 30 days
You May Like
-
YRT50P4 Rotary Table Bearing 50X126X30mm China Turntable Bearing Machine Tools Bearing
-
YRT50P2 Precision Cylindrical Roller Bearings High Precision Rotary Table Bearing
-
YRT50 Custom Made Slewing Ring Bearing Size Precision Cylindrical Roller Bearings For NC Rotary Tables
-
YRT50P4 Double Direction Thrust Bearings 50X126X30mm YRT Bearings Nickle Plated Bearing
-
YRT50 Bearing With Nylon Cage for Rotary Tables in Machine Tools
-
YRT50 Bearing Anti-corrosion Custom Made for Rotary Tables in Automation Systems
Product Details
| Brand Name | YDPB | Place of Origin | China | |
| Model Number | YRT1030 | Number of Row | Double Row | |
| Seals Type | no | Precision Rating | P4 | |
| Outside Diameter | 100, 1200 | Bore Size | 150, 1500 |
Product Description

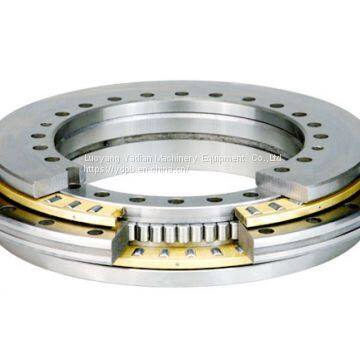

Axial radial bearings YRT are axial and radial combined cylindrical roller bearings, including two thrust needle roller bearings and a radial cylindrical roller bearing with the combination of axial and radial preload, For the convenience of transportation and fixing, two or three symmetrical screws are fastened to the two rings in order to prevent rollers and rings generating collisions which influence bearing accuracy.
| Applications | ?Precision machine tools ?precision Turntable, NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ?Indexing plate of other precision machines etc | |||||||||||||||||
Main Models
YRT-50 Bearings,YRT-80 bearings,YRT-100 bearings,YRT-120 bearings,YRT-150 bearings,YRT-200 bearings,YRT-260 bearings,YRT-325 bearings,YRT-395 bearings,YRT-460 bearings,YRT-580 bearings,YRT-650 bearings,YRT-850 bearings,YRT-950 bearings,YRT-1030 bearings,YRT-1200 bearings.
Main parameters
| Bearing type | d (mm) | D (mm) | H (mm) | Screw tightening torque(Nm) | Axial dynamic Load(KN) | Radial dynamic Load(KN) | Weight (KG) |
| YRT-50 | 50 | 126 | 30 | 8.5 | 38 | 28.5 | 1.6 |
| YRT-80 | 80 | 146 | 35 | 8.5 | 56 | 42.5 | 2.4 |
| YRT-100 | 100 | 185 | 38 | 8.5 | 76.5 | 47.5 | 4.1 |
| YRT-120 | 120 | 210 | 40 | 14 | 102 | 52 | 5.3 |
| YRT-150 | 150 | 240 | 40 | 14 | 112 | 56 | 6.2 |
| YRT-180 | 180 | 280 | 43 | 14 | 118 | 69.5 | 7.7 |
| YRT-200 | 200 | 300 | 45 | 14 | 120 | 81.5 | 9.7 |
| YRT-260 | 260 | 385 | 55 | 34 | 160 | 93 | 18.3 |
| YRT-325 | 325 | 450 | 60 | 34 | 300 | 120 | 25 |
| YRT-395 | 395 | 525 | 65 | 34 | 355 | 186 | 33 |
| YRT-460 | 460 | 600 | 70 | 34 | 490 | 200 | 45 |
| YRT-580 | 580 | 750 | 90 | 68 | 490 | 228 | 89 |
| YRT-650 | 650 | 870 | 122 | 116 | 1040 | 490 | 170 |
| YRT-850 | 850 | 1095 | 124 | 284 | 1000 | 455 | 253 |
| YRT-950 | 950 | 1200 | 132 | 284 | 1290 | 530 | 312 |
| YRT-1030 | 1030 | 1300 | 145 | 284 | 1380 | 620 | 375 |
