Home > Products > Planetary Gear Motor > PMDC 12V 60rpm 130CAV dc Planetary Gear Motor Engine 5kg Torque for Smart Lock
PMDC 12V 60rpm 130CAV dc Planetary Gear Motor Engine 5kg Torque for Smart Lock
US$ 5 - 6.5
/ Piece
50 Pieces(Min. Order)
- T/T Credit Card
You May Like
-
High Torque PMDC Dia42mm 775PA Planetary Gear Motor for Automatic Curtain
-
3V 12V 24V High Torque Brush DC Planetary Gear Motor for Precision Instrument
-
Eccentric 10mm Plastic Gearbox M20 Micro dc Planetary Gear Motor
-
Micro Permanent Magnet dc Gear Motor, 10mm Diameter Planetary Gear Motor
-
M10 Brush DC Motor Plastic Planetary Gear Motor for Smart Lock
-
1215 N20 Planetary Gear Motor 3v,4.5v,5v,6v for Lock
Product Details
| Brand Name | SFL | Place of Origin | Guangdong, China | |
| Model Number | 16GR260-130CAV-14500 |
Product Description
Product Description
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | ON LOAD | STALL | ||||||
| RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | |||
| V | r/min | mA | r/min | mA | mN.m | g.cm | mN.m | g.cm | A | |
| 16GR260-130CAV | 12 | 1700 | 106 | 1500 | 200 | 0.2 | 2 | 2 | 20 | 1.44 |
Remarks:Other parameters: according to customer demand for design

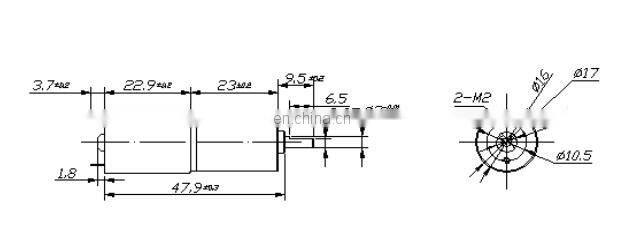

Appearance Size/ Unit: mm
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
