Home > Products > Spur Gear Motor > n20 mini high torque low rpm dc gear motor with customized M4 M5 screw rod shaft
n20 mini high torque low rpm dc gear motor with customized M4 M5 screw rod shaft
USD $1.9 - $3.3
/ Piece
100 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
n20 dc gear motor 6v 3v 7.5rpm with 1000 gear reduction
-
180SH 20mm mini 12v 6v high torque dc spur gear motor for drive vending
-
6v Smart lock motor N20 mini dc gear motor for clutch
-
12v 37mm gear motor 60rpm dc electric motor with gear reduction 3530
-
3530 high torque 12v dc gear motor with 37mm gearbox
-
12 volt mini dc electric gear motors reductor 130VA for model trains
Product Details
| Brand Name | SFL | Place of Origin | Guangdong, China | |
| Model Number | 12GA1000-N20VA |
Product Description
Product Description
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | ON LOAD | STALL | STARTING VOLTAGE | ||||||||
| OPERATING RANGE | Rated | SPEED | CURRENT | SPEED | CURRENT | OUTPUT | TORQUE | TORQUE | CURRENT | ||||
| r/min | mA | r/min | mA | W | mN.m | g.cm | mN.m | g.cm | mA | V | |||
| 12GA298-N20VA | 2.0-4.0v | 3.0V | 47 | 60 | 40 | 230 | 0.69 | 40 | 400 | 250 | 2500 | 750 | 1.8 |
| 12GA150-N20VA | 1.5-3.7v | 3.0v | 50 | 30 | 35 | 120 | 0.36 | 20 | 200 | 50 | 500 | 280 | 1.0 |

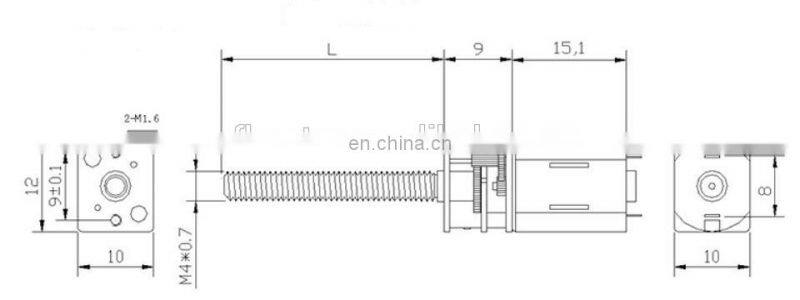

Appearance Size/mm
Production Process
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
