Home > Products > Spur Gear Motor > M10 6v Reduction Toy Motor 10mm Diameter Micro Gear Brushed dc Motor Home Appliance
M10 6v Reduction Toy Motor 10mm Diameter Micro Gear Brushed dc Motor Home Appliance
US$ 3.57 - 4.28
/ Piece
100 Pieces(Min. Order)
- T/T Credit Card
You May Like
-
N20 12V DC 200 RPM High Torque 10x24mm Reversed Gearbox Mini Electric Reduction Geared Motor With 10mm Output Shaft
-
12V GM24-N20 Reversed Gear Motor 10x24mm Mini Metal Reduction dc Motor for Hotel Smart Door Lock Toy Models DIY Robot
-
N10 Double Shaft Right Angle 3v Mini dc Worm Low Rpm Gear Motor for DIY rc Hobby
-
3v Mini dc Low Rpm Double Shaft dc Worm Gear Box Motor N20
-
Self-lock BLDC Worm Gearbox Motor 4058-3650 High Torque and Long Life 5840 Worm Gear Motor
-
12v 24v Double Shaft 555 DC Worm Gear Motor With Encoder 58mm Gearbox
Product Details
| Brand Name | SFL | Place of Origin | Guangdong, China | |
| Model Number | 10GA-M10 |
Product Description
Product Description
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | Rated | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| SGM10F-M10VA-06205-250 | 3.0-5.0v | 4.5V | 89 | 0.05 | 64.1 | 0.128 | 25.4 | 258.7 | 0.17 | 50 | 500 | 0.33 |
| SGM10F-M10VA-06220-250 | 2.0-4.0v | 3.0V | 45 | 0.06 | 30 | 0.11 | 48 | 500 | 0.082 | 93.8 | 957 | 0.22 |
| SGM10F-M20VA-06180-250 | 2.0-4.0v | 3.0V | 41 | 0.025 | 29.9 | 0.067 | 25.3 | 258.4 | 0.079 | 93.8 | 957 | 0.18 |

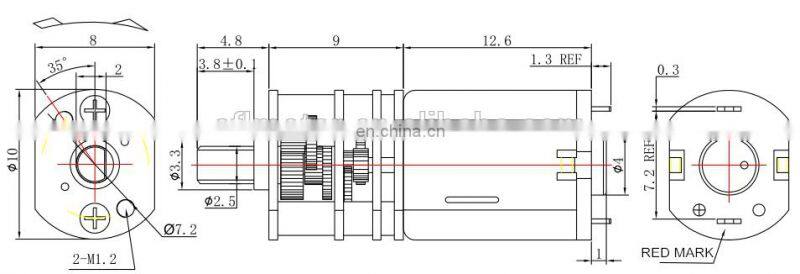

Appearance Size/mm
Production Process
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
