Home > Products > Spur Gear Motor > Factory Wholesale 12mm N20 dc Motor Encoder 3V 6V 12V With Lead Screw Shaft
Factory Wholesale 12mm N20 dc Motor Encoder 3V 6V 12V With Lead Screw Shaft
US$ 3.5 - 5.5
/ Piece
50 Pieces(Min. Order)
- T/T Credit Card
You May Like
-
37mm Low Rpm Speed High Torque 555 550 dc Electric Motor 12v With Gear Reduction
-
N20 Mini High Torque Low Rpm dc Gear Motor With Customized M4 M5 Screw Rod Shaft
-
N20 dc Gear Motor 6v 3v 7.5rpm With 1000 Gear Reduction
-
180SH 20mm Mini 12v 6v High Torque dc Spur Gear Motor for Drive Vending
-
6v Smart Lock Motor N20 Mini dc Gear Motor for Clutch
-
12v 37mm Gear Motor 60rpm dc Electric Motor With Gear Reduction 3530
Product Details
| Brand Name | SFL | Place of Origin | Guangdong, China | |
| Model Number | 12GA100-N20VASB |
Product Description
Product Description
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | ON LOAD | STALL | STARTING VOLTAGE | ||||||
| OPERATING RANGE | Rated | SPEED | CURRENT | SPEED | CURRENT | OUTPUT | TORQUE | CURRENT | |||
| r/min | mA | r/min | mA | W | mN.m | g.cm | mA | V | |||
| 12GR210-N20VA | 3.5-6.0v | 6.0 V | 18000 | 30 | 85 | 34 | 1.65 | 1.8 | 18 | 708 | 0.4 |

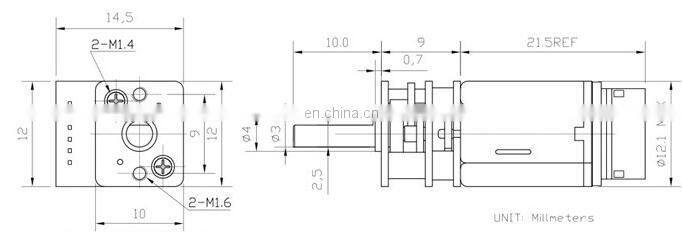

Appearance Size/mm
Production Process
Company Information
About us
- More than 50 sets automatic manufacturing equipment and detecting instruments.
- R&D engineer group with practised experience, and long-term customization
- Professional technical experience and reliable after-sale service
- Good cost control and high cost performance
- ISO9001 quality management system certification
- Up to 50,000 motors daily output
Our Services
Customization service as below are available
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
