Home > Products > Hardness Tester > PHR-1ST Portable Rockwell metal Hardness Tester

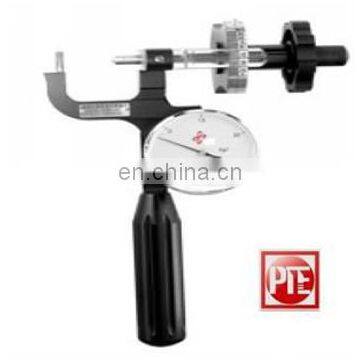

PHR-1ST Portable Rockwell metal Hardness Tester

FOB Price

USD $300 - $600 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port jinan
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	PTE		Place of Origin	Shandong, China
Model Number	PHR-1ST

Product Description

PHR-1ST Portable Rockwell metal Hardness Tester

Product Description

Application:

Test the superficial hardness of thin wall pipe

Apply 15kg test force, Small indentation, no effect to the application of most work pieces, used for finished work piece NDT test directly.

Tests thin-wall slim pipes 4.8mm, thickness>0.15mm

The test principle and accuracy comply with standard ISO6508.

Capable of testing copper, brass, Aluminum, Aluminum alloys, stainless steel, silver pipe.

Test softer pipe with larger ball penetrator.

Test standard block or plate with flat adaptor installed on the anvil.

Can be used on table by put into bench stand.

Copper, copper alloys, Aluminum, Aluminum alloys, silver, silver alloys, stainless steel, etc.

Features:

Initial Test Force: 3kg

Total Test Force: 15kg

Force Applying Method: By Screw

Indenter: 1.588mm carbide ball

Accuracy: Meets the requirement of ISO 6508

Resolution: 0.5HR

Testing Range: HR15T, HR15W, HR15X, HR15Y

Standard Package

Tester
Bench stand
1.588mm carbide ball indenter
HR15T Superficial Rockwell test blocks
Flat Adaptor
Flat anvil
Carrying case

Optional Accessories

Carbide ball indenter (Dia1.588mm, 3.175mm)
Steel ball indenter (Dia6.35mm, 12.7mm)
HR15T Superficial Rockwell test blocks
Spare magnifier

Packaging & Shipping

Packaging Detail:

1. Inner package: dust-proof plastic bag
2. Outer package: standard export wooden case with pallet
3. Special packages: according to buyer's requirements

4. The packages suitable for international transport by sea, by air or any other delivery methods

Company Information

OUR COMPANY--

PTE- A Material Testing Machine Manufacturer

About PTE

JINAN PRECISION TESTING EQUIPMENT CO., LTD is one of the top-ranking manufacturers and suppliers of testing technologies worldwide. With many years experience in this filed, we can supply standard and customized solutions for many test, measurement and quality control tasks required in the world of modern materials testing.

The main products from JINAN PRECISION TESTING EQUIPMENT include hardness testers, universal testing machines, Sample preparation equipment, non-metal materials testing equipment, which can used for testing metals, plastics, rubber, textiles, paper, paint, cement, concrete and packaging materials, etc. Their usage is very wide.

Welcome to enquiry and prompt reply will be done by our professional technical and sales person.

Our Services

1. Pre-service

--24 Hours online service for your consult.

--Help choose right model,and a series of service,person,advise.

2. Middle service

--Give you best offer

--Provide discount for many sets order

--Do customer's request:

--Choose payment term you convienent.

--Promptly production and delivery,inform you in time.

--Can provide invoice value as you like to decrease your tax.

3. After sale service

--1 year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Free change for some parts

--Remote control technical consult

--Free installation DVD

--Maintenance plan

FAQ

Certificate:

more products:

WAW-C Hydraulic unviersal testing machine

Model	WE-100C
Max. Testing Load (kN)	100
Load range(kN) and Min Scale (kN/div)	0-20/0.05 0-50/0.1 0-100/0.2
Max. tensile space (Including piston Travel) mm	560
Max. Compression space (mm)	530
Max. Distance Between Two Fulcrums of Bending Test (mm)	400

-------------------------------------------------------------------------------------------------------------------------------------------------------

Compressive strength testing machine for concrete

Model	YES-1000
Load display accuracy	±1%
Distance between upper and lower platen	320mm
Diameter of lower platen	300 mm
Piston stroke	30mm
Pump nominated pressure	40MPa

-------------------------------------------------------------------------------------------------------------------------------------------------------

Fiber strength testing machine (single column):

Model	WDW-E1,E2, E3, E5, E10, E20, E30, E50, E100
Max. Load	1kN,2kN,3kN,5kN,10kN,20kN
Deformation accuracy	≤±0.5%
Load speed	0.005-500mm/min
Total crosshead travel (mm)	1075
Spacing of grip to grip(mm)	750

-------------------------------------------------------------------------------------------------------------------------------------------------------

PLG 300C PC Control High Frequency Fatigue Testing Machine

Model	PLG-10C PLG-20C PLG-50C PLG-100C PLG-200C PLG-300C
Mean load max(kN)	±10 ....
Load step	1,2,5
Accuracy of static load	≤±1%
Range of frequency(Hz)	60~300HZ
Power	380V, 3phs,

-------------------------------------------------------------------------------------------------------------------------

WAW Computer Control Servo Hydraulic Universal Testing Machine

Model	WAW-300E WAW-600E WAW-1000E WAW-2000E
Max. Testing Load (kN)	300 ....
Load Accuracy	≤±1% from 2% to 100% of full scale
Strain accuracy	≤±0.5%
Load frame Type	4-column and 2-screw structure
Max. tensile space (Including piston Travel) mm	690

-------------------------------------------------------------------------------------------------------------------------------------------------------

TORSION TESTING MACHINE

Item	NJS-30
Max torque(Nm)	30
Torque resolution (Nm)	0.01
Accurate measuring range of torsion (Nm)	0.6-30
Full-scale reading of torsion angle (º)	9999.9
Torsion angle resolution (º)	0.01

-------------------------------------------------------------------------------------------------------------------------------------------------------

PLS Dyanmic testing machine

Model	PLS-50
Static	±50
Dynamic	50
Function generator Range of frequency(Hz)	0.01~20HZ
Stroke of piston(mm)	±75
Distance between columns (mm)	500

RTH CREEP TESTING MACHINE

Working Temp. range	400°C~1200°C
Length of effective soaking zone	150mm
Furnace pipe:	φ90mm
Furnace:	φ300mm
Furnace life:	≥3000hours
Timing error	±0.2%
