Home > Products > Construction Material > Rocky Aluminium Profile for Windows and Doors
Rocky Aluminium Profile for Windows and Doors
- qingdao china
- T/T Credit Card
You May Like
Product Details
| Brand Name | Rocky | Place of Origin | Shandong, China | |
| Model Number | Rocky-2230 | Shape | Square | |
| Application | Door & Window | Alloy Or Not | Is Alloy | |
| Grade | 6000 Series | Temper | T3-T8 |
Product Description
Aluminum/Aluminium Extrusion Profile for Curtain Wall Section
Popular Series

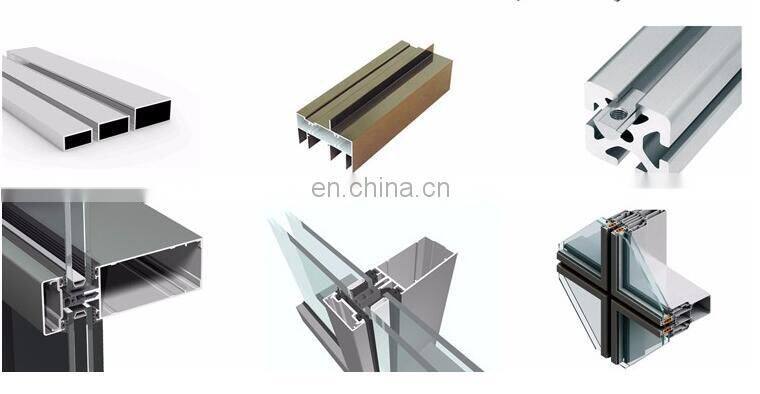

Curtain Wall Series | Door and Window Series | Industrial Profiles | Aluminum Sheet |
80-200 series glass curtain walls | GR50, 508, 55, 65 and 65A series broken bridge profiles for casement system | Automotive profiles | CNC processing, PVDF coating, pressing available for customized design |
Aluminum and plastic curtain walls | |||
Point-supported curtain walls | GR85, 958, 90, 95 and 966 series broken bridge profiles for sliding system | Electronic profiles | |
Hook type curtain walls | |||

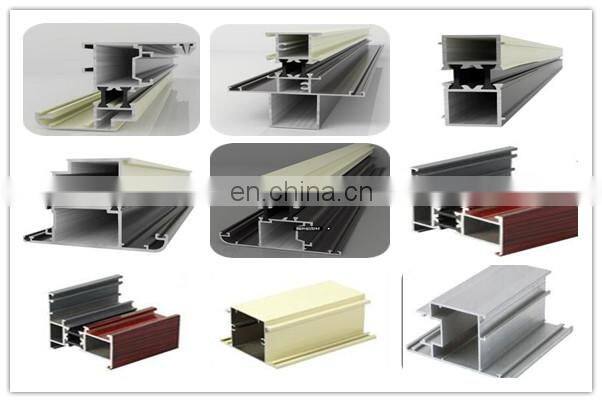

Heat-insulating broken bridge curtain walls | YG868, 968, 90A, 50B, 50C, 50E and other series for ordinary sliding and casement systems | Mechanical profiles |
Thermal Break
| Anodization | Electrophoresis | Mechanical Polishing | Powder Coating | |
| Execution Standard | GB5273.2-2008 | GB5237.3-2008 | GB5237.4-2008 | |
| Film Grade | AA10, AA15, AA20 | A Grade (anod min. 10µm/paint min. 12µm/compound Film min. 21µm; B Grade (anod min. 10µm/paint min. 7µm/compound Film min. 16µm; | According to Surface Pattern | Coating thickness min. 40µm, max. 120µm |
| Ingot Status | Industrial Standard YS67-93 | Industrial Standard YS67-93 | Industrial Standard YS67-93 | Industrial Standard YS67-93 |
| Chemical Composition | GB/T3190-96 | GB/T3190-96 | GB/T3190-96 | GB/T3190-96 |
| Surface Pattern | Matte, flat | Matte, flat | Anodized, electro | Highly/medium polished, flat |
| Features | Corrosion-proof, wear-resisting, shining and decorative | Strongly corrosion-proof against acid, alkaly and salt mist, with smooth surface and sharp colors | corrosion-proof, wear-resistent, high brightness | Flexible application, wide range of shade and color |
Material Reference:
| Material | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | <0.35 | <0.1 | <0.1 | 0.45-0.9 | <0.1 | <0.1 | <0.1 | <0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | <0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | <0.1 | <0.1 | 0.40-0.6 | <0.1 | <0.1 | <0.1 | <0.15 | Rest |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Do you make customized products based on our design drawings?
A:Yes, we are a professional factory with an experienced engineering team to make custom products as customers request
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:What is the difference between anodized and mill finished?
A: Mill is the raw state of aluminum as extruded - no surface treatment. Anodized (also known as Satin Clear or Clear Anodized) is an electrolytic process. This process increases corrosion resistance and weather resistance.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q :What are the advantages of using the 6000 series of alloys in aluminum extrusions?
A: The 6000 series, which incorporates magnesium and silicon, provide good extrudability, strength, corrosion resistance, formability and machinability
Q: What is your terms of payment ?
A: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Q: What is Quality Control system?5 steps:
A, After order confirmed, we have a meeting with the main peoples who work for workshop before production,investigate all the workmanship and some technical problems, ensure all of them have related ways to settle and control.
B, Inspect all the materials when arrived, ensure they will be catched up customers's requirements.
C, Inspect the semi-finished goods.
D, Inspect the finished products.
E, Final inspection when pack up all the goods.if there is not any problems for this step,our QC will issue the inspection report and release this products
