Home > Products > IRON VALVE > DN500 ductile cast iron PTFE lined resillient seat lug type butterfly valve

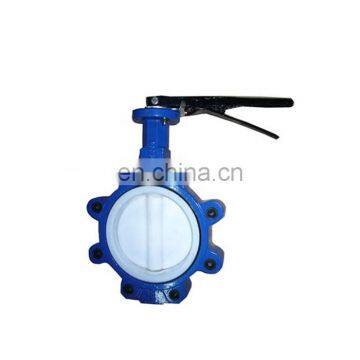

DN500 ductile cast iron PTFE lined resillient seat lug type butterfly valve
US$ 600 - 800
/ Ton
1 Ton(Min. Order)
- Xingang Tianjin /Qingdao any port as per customers's requirement
- T/T Credit Card
You May Like
-
ductile cast iron ggg50 dn100 lug butterfly valve with worm gear box operator
-
ductile cast iron ggg50 dn100 gear operated lug type butterfly valve
-
DN100 PN16 ductile cast iron wafer type butterfly valve with worm gear box operator
-
DIN3352 large diameter dn900 pn20 ductile cast iron ggg50 resilient seated flanged gate valve
-
ISO 5752 series 20 inch ductile cast iron wafer butterfly valves Italy
-
ductile iron material handle wheel worm gear operated wafer butterfly valve dn350 PN16
Product Details
| Brand Name | MDS | Place of Origin | Shanxi, China | |
| Model Number | butterfly valve | |||
| Application | General | Structure | Butterfly | |
| Power | Manual | Port Size | DN50-DN1200mm | |
| Temperature of Media | Normal Temperature |
Product Description
DN500 ductile cast iron PTFE lined resillient seat lug type butterfly valve
| NO | Parts Name | Manufacturing high quality ductile iron wafer type butterfly valve |
| 1 | body | Cast iron/ductile iron/stainless steel/carbon steel |
| 2 | upper shaft | SS416/carbon steel/tianium steel/ SS316/monel |
| 3 | disc | AI-Bronze/monel/CF8M/WCB/ductile iron |
| 4 | seat | EPDM/PTFE/buna/hypalon/viton/neoprene |
| 5 | bushing | P.T.F.E/lubricating |
| 6 | O-ring | EPDM/buna/hypaion/viton/neoprene |
| 7 | pin | SS416/carbon steel/tianium steel/SS316/monel |
Outline Dimensions&Connection Dimensions(mm)&Weight(kg)
| SIZE | A | B | C | D | d0 | L | ISO5211 | K | E | 4-d | D0 | N-M | HXH | & | Weight(kg) |
| 2'' | 161 | 80 | 42 | 52.7 | 12.6 | 32 | F07 | 90 | 70 | 4-9 | 125 | 4-M16 | 11×11 | 90 | 3.8 |
| 2.5'' | 175 | 89 | 45.8 | 64.4 | 12.6 | 32 | F07 | 90 | 70 | 4-9 | 145 | 4-M16 | 11×11 | 90 | 4.2 |
| 3'' | 181 | 95 | 45.8 | 74.7 | 12.6 | 32 | F07 | 90 | 70 | 4-9 | 160 | 8-M16 | 11×11 | 45 | 4.7 |
| 4'' | 200 | 114 | 52 | 104 | 15.77 | 32 | F07 | 90 | 70 | 4-9 | 180 | 8-M16 | 11×11 | 45 | 9.0 |
| 5'' | 213 | 127 | 55 | 123.3 | 18.92 | 32 | F07 | 90 | 70 | 4-9 | 210 | 8-M16 | 14×14 | 45 | 10.9 |
| 6'' | 226 | 139 | 55.8 | 155.6 | 18.92 | 32 | F07 | 90 | 70 | 4-9 | 240 | 8-M20 | 14×14 | 45 | 14.2 |
| 8'' | 260 | 175 | 61.6 | 202.5 | 22.1 | 45 | F10 | 125 | 102 | 4-12 | 295 | 12-M20 | 17×17 | 30 | 18.2 |
| 10'' | 292 | 203 | 67.2 | 250.5 | 28.45 | 45 | F10 | 125 | 102 | 4-12 | 355 | 12-M24 | 22×22 | 30 | 26.8 |
| 12'' | 337 | 242 | 76.9 | 301.5 | 31.6 | 45 | F10 | 140 | 102 | 4-12 | 410 | 12-M24 | 22×22 | 30 | 40 |
| 14'' | 368 | 267 | 76.9 | 333.3 | 31.6 | 45 | F10 | 140 | 102 | 4-12 | 470 | 16-M24 | 22×22 | 22.5 | 56 |
| 16'' | 400 | 309 | 86.5 | 389.6 | 33.15 | 52 | F14 | 197 | 140 | 4-18 | 525 | 16-M27 | 27×27 | 22.5 | 96 |
| 18'' | 422 | 328 | 105.6 | 440.5 | 38 | 52 | F14 | 197 | 140 | 4-18 | 585 | 20-M27 | 27×27 | 18 | 122 |
| 20'' | 480 | 361 | 131.8 | 491.6 | 41.15 | 65 | F14 | 197 | 140 | 4-18 | 650 | 20-M30 | 36×36 | 18 | 202 |
| 24'' | 562 | 459 | 151.36 | 592.5 | 50.65 | 70 | F14 | 276 | 165 | 4-20 | 770 | 20-M33 | 36×36 | 18 | 270 |
Product Drawing
Detailed Images
