Hand-held Alloy Analyzer

 (TrueX Gold)

Performance Features:

 Name:  Gold Tester Machine Handheld Xrf Analyzer For Sale

1. Small, light and easy to carry.

2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.

3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.

4. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will automatically sense whether there is a sample at the measurement window.

5. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are opreating machine in some particular environment.

6. TrueX utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. It also integrates the new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm. These features allow it to measure elements faster, with higher accuracy and greater repeatability.

7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.

8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover, TrueX has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; TrueX will also give out alarm when ambient temperature or humidity exceeds the scope of application.

9. TrueX adjusts air pressure factor automatically based on altitude it has detected. This function increases excitation effect of light elements by 40% and that of rare earth elements by 30%.

10. TrueX is supportive to battery hot plug, hence battery can be replaced without powering off the machine.

11. On TrueX, users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of products and batch number).

12. TrueX is built with double beam technology which can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. The brightness of the display of TrueX is automatically regulated according to environment brightness.

13. TrueX can be configured and maintained in a remote way via Internet.

14. TrueX can build a three dimensional element content distribution graph allowing for a fast estimate of mineral reserves or the extent of geological disaster with the built-in GPS for latitude and longitude reading combined with a 3rd party GIS analysis software.

15. TrueX's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.

16. TrueX Ultra-short optical™ path design can significantly improve light element excitation effects, without the fall/fill condition.

17. TrueX has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.

Application Features:

1. Excellent Performance

TrueX shows element symbols in both English and Chinese. With high precision, high testing speed and comparable results to even that of laboratory equipment, TrueX displays alloy grade and elements percentage content (up to three decimals) and ppm content in an apparent way.

2. One-touch operation

TrueX test lasts only a few seconds and identification of alloy grades takes only 1 or 2 seconds. This facilitates operation by non-technical users.

3. Nondestructive testing (NDT)

TrueX test does not damage or have any adverse effect on the use of samples. No damage is foreseen in the entire test process.

4. Drawell analysis software

Drawell analysis software is a professional analysis software which enables the users to easily configure passwords, customize analysis reports attached with company LOGO and implement remote control of machine; users can edit alloy grade library, add their own grade number or define their own company's alloy brands; the software also allows automatic calibration of instrument and diagnosis of problems in a remote way; the software can be updated via Internet.

1. Scrap metal recycling and sorting

Scrap metal recycling, reuse, and on-site analysis and sorting. TrueX offers a rapid and reliable identification of the scrap metals when scrap metals are transacted between buyers and sellers. TrueX delivers quantitative element analysis of iron alloy, copper alloy, aluminum alloy, copper-iron alloy,lead-tin alloy, mixed alloys, etc, and rapid identification and sorting of these alloys on the site.

2. Application fields, safety and standards

TrueX is suitable for alloy material identification (PMI) for incoming inspection;material inventory management;re-inspection of construction materials in petrochemical construction, metal smelting, pressure vessel, power plant, petrochemical industry, fine chemical, pharmaceutical, aerospace and other industries to avoid serious safety accidents resulting from mixed or unqualified materials. TrueX is in compliance with ANTM standard, China National Standard (GB), UNS, electric industry standard (DL), API, JIS, GMP, TSG, Mechanical Industry standard (JB), etc.

3. Quality Control, Quality Assurance (QC/QA) and Error-proofing(PKKA - YOKE)

In metal processing and manufacturing industry, quality control and quality assurance (QC/QA) and error proofing (PKKA - YOKE) of materials (raw materials), semi-finished products and finished products is indispensable. Use of mixed or unqualified materials will bring losses to the company. This is true to companies ranging from small metal processing plants to large aircraft manufacturers.

8. Data Processing and Enterprise Resource Planning (ERP)

Data can be transferred via USB, WIFI and Bluetooth and stored in excel, pdf or other formats. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of goods and batch number); i-cloud data storage service is optional. Data can transport to Enterprise Resource Planning (ERP) system.

 Instrument specification:

The ARM architecture Cortex-A8 1 GHZ

System Processor: The Android 4.2 operating system/80MHZ ADC digital pulse processor/4096 MCA channel , 32GB memory

Display: Industrial resistive touch screen with screen size of 4.3"

Data storage: Built-in 32gb memory, 300,000 spectral data and spectrum can be stored

Operating Temperature: -20℃~+50℃

Operating Humidity: ≤90%Limit of

Library of extensible and customizable alloys

Ability to make measurements on pipes, flat surfaces, surface integrals and welds

Method of analysis: the x-ray energy dispersive method for analysis of fluorescence

Simultaneously detect elements: simultaneously detect dozens of elements

Processor and RAM:

CPU: 1GB

RAM: 1GB

The standard configuration: 32G

Range content: ppm ~ 99.99%

15 seconds reading time

GPS, WIFI: integrated into the system

Battery: lithium battery, which can be loaded with a maximum capacity of our 6800Ah can operate continuously for 8 hours; Equipped with high voltage (110V-220V) adapter, can work under current alternative

Sensor resolution: solid, liquid, powder

Sensor resolution: low resolution can be 139eV

Excitation source: 40KV / 100mA-Ag window miniature tube anode X of light and high voltage source

Collimator and filter: sights of 4.0 or 2.0 of diameter, automatic switch of 8 filter. 12 kinds of groups, plus mode consisting of world, can satisfy different types of tests of samples

Display: touchscreen TFT - LCD, resolution of 640 * 480.

Protection against water, dust and shock

Test window: 12mm.

Charging system gas: Helium charging system of ordinary pressure.

Security: standalone password manager mode.

data transmission: digital multi-channel technology, the transmission of data SPI, a quick scan, count rate, waterproof miniature USB, which can be connected to the desktop computer.

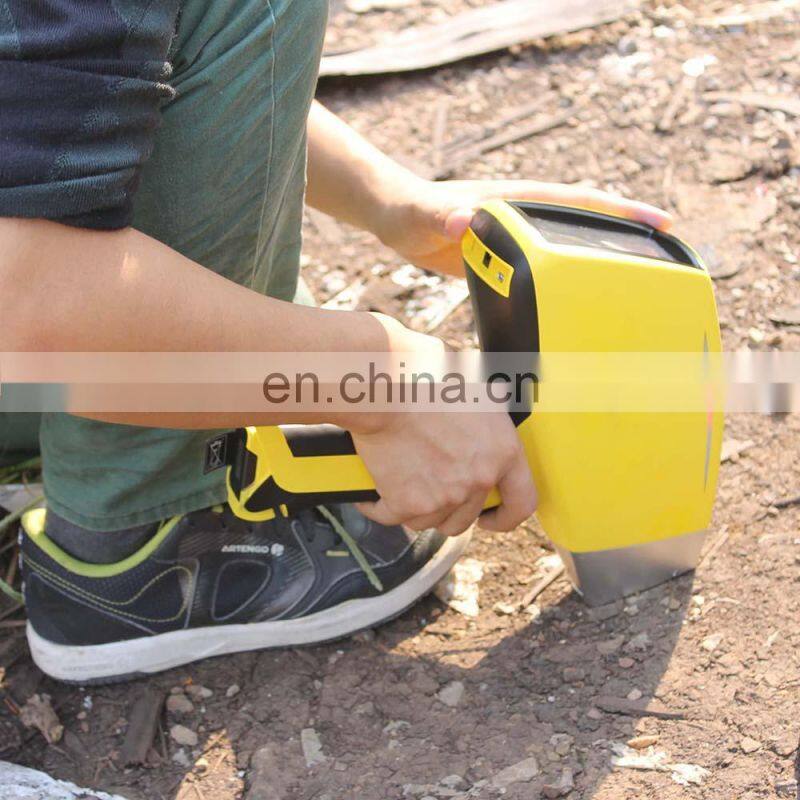

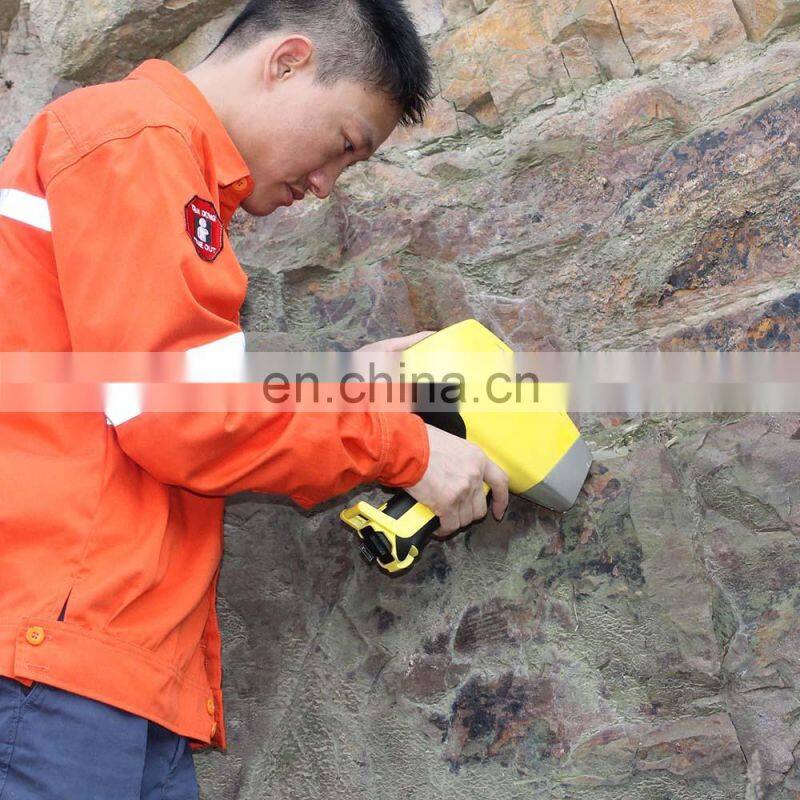

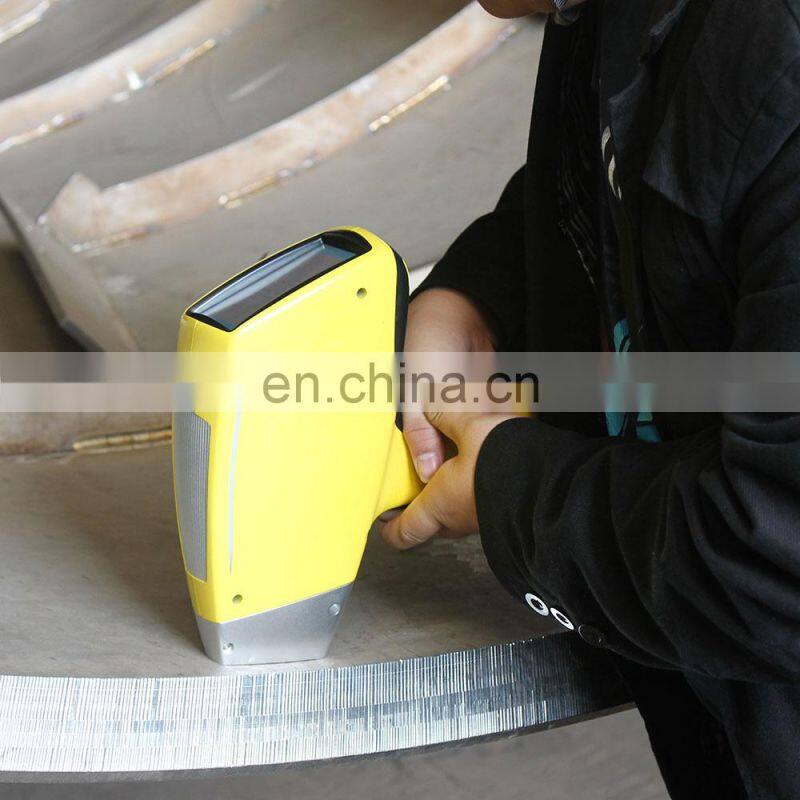

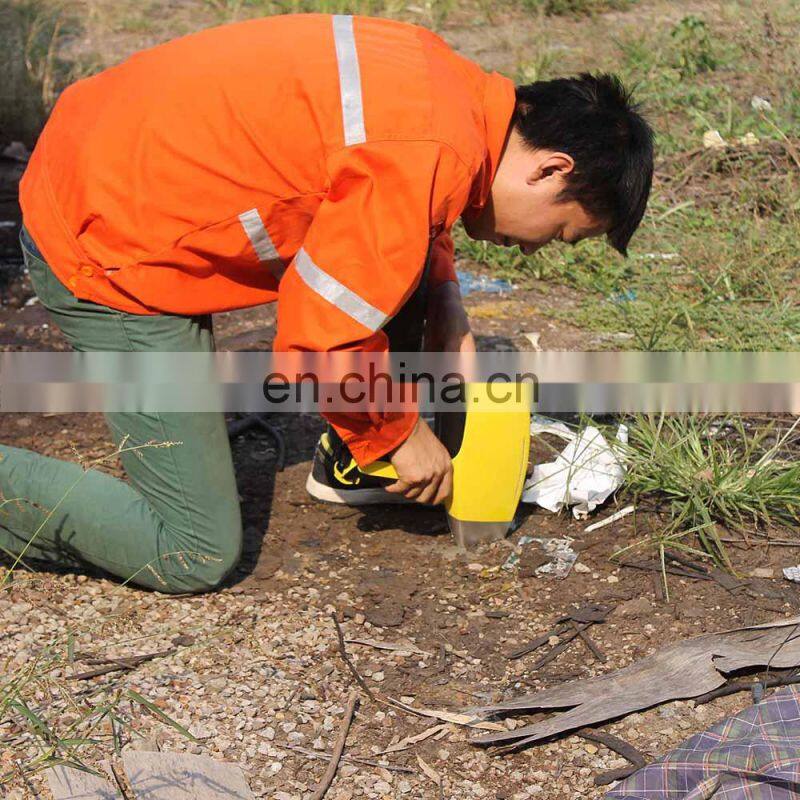

Product Show:
