DW-BP-9010A  Wavelength Dispersion WD-XRF

Product overview:

The wavelength dispersive X-ray fluorescence spectrometer (WDXRF) is a high-tech product developed by our company based on the experience and fruits of domestic R&D on similar instrument over years, and absorbing the international advanced technology, The technical performance indexes have reached the level of international similar products. It  can be used in any field that requires analysis of elements or compounds from Na to U, such as building materials (cement, glass, ceramics), metallurgy (iron and steel, non-ferrous metals), petroleum (trace elements such as S, Pb, etc.), chemical industry, geological mining, commodity inspection, quality inspection and even human trace elements inspection and so on. It is a reliable tool for macroanalysis and microanalysis. It is also used in universities and research institutes.

DW-BP-9010A is well-designed laboratory equipment that absorbs foreign advanced experience and integrates domestic technical advantages. Its excellent performance can meet the analysis requirements of different customer. The extremely attractive enables the users to benefit from the low-cost analysis process.

At present, our instruments have been widely used in the building materials (cement, glass, ceramics) industry, non-ferrous metals, steel, petrochemical and other fields. The application effect is good and meets the actual needs of users.

Application scope:

l DW-BP-9010A  is very suitable for quality process control in large, medium and small cement plants (single and double kilns). It can be used for the analysis of primary and secondary oxides in raw materials (such as limestone, sand, bauxite, magnesite and other minerals);Determination of CaO, SiO2, Al2O3, Fe2O3, MgO, SO3, K2O, Na2O, Cl and other conventional elements in raw materials, clinker and cement.

l Application in steel industry: measuring: The element Si, Mn, P, S, Cu, A, Ni, Cr, Mo, V, Ti, W and Nb can be determined according to GB/T 223.79-2007.

l Application in other industries: Determination of S and P in petroleum, glass, ceramics, non-ferrous metals, mining, chemical industry, quality inspection, etc.

Feature:

l Highly automated analysis saves time and effort

Suitable for the research and management of raw materials, new materials, products, etc. It only takes about 3 minutes to complete the quantitative analysis of more than a dozen elements in one sample, as the high stability of the instrument fully ensures the automatic analysis.

The analysis results can be obtained quickly. After data processing, the quality inspection and specification judgment can be made, which can be applied to the production management analysis (especially bath analysis).

Quality control:

l Quickly analyze the samples collected from the production line. The analysis result (proportion calculation) is used as the control data of raw material preparation for the feedback, which is used to improve and stabilize the quality

Advantage

l Fixed multi-channel spectrometer: It is ingenious in the design of spectroscopic system, the collection and detection technology, and effectively improves the counting rate and stability of the instrument.

l Intelligent fault detection device: It can monitor the instrument parameters in real time, control and protect the instrument and automatically alarm!

l Advanced collimation technique: The spectral collimator adopts the advanced design technology of Bruker in Germany to optimize the optical path.

Ultra-short optical path: Using ultra-short optical path, the power of the X-ray tube is reduced, the service life of the X-ray tube is prolonged, and the structure of the cooling system is simplified. Greatly save maintenance costs.

l Stable regulating system of air flow density: It adopts American control component. It can automatically control the flow rate and density of air, greatly improves the control accuracy, the stability and repeatability of peak and element content detection.

l Electrical pulse signal acquisition card: It adopts the international advanced electrical pulse acquisition signal algorithm to eliminate the background noise and interference peak, and improves the reliability and effectiveness of peak position determination accuracy and peak position drift correction.

l Automatic safety protection device: It effectively protects the X-ray tube and high-voltage power supply.

l The Analyzing crystal adopts plane and bent conf

iguration of PET, InSb, Ge, LiF, etc., which ensures the measurement accuracy of each element. For Na and Mg elements, the most high-grade multi-layer crystal, it effectively protects the crystal from moisture.

l Software: simple operation without any special requirements for operators.

Software feature:

(1)The self-developed Chinese(other language is also supported.) software system is suitable for Windows operating system. The software is simple and has no special requirements for operators;

(2)Intuitive operation interface, permit conducting multitasks simultaneously, man-machine dialogue, easy to modify and set various parameters;

(3)Using full spectrum detection, real-time intelligent correction of the instrument drift to the best running state;

            (4)Using the most advanced mathematical model algorithm to calibrate the work

curve, easier procedure and more in line with the production process characteristics of users;

(5)Powerful database system support, to achieve a variety of matrix, background interference correction;

             (6)  Equipped with online batching ratio feedback adjustment & calculation and

cement component measurement module for cement industry, statistical measurement of samples to help the process engineers to analyze the batching  changes;

(7)Powerful historical record inquiry function, master the change of production process dynamically at any time;

(8) Powerful self-diagnosis function, real-time monitoring of instrument status, automatic protection function;

               (9)With the popular DCS communication protocol, which is convenient to share data with DCS system.

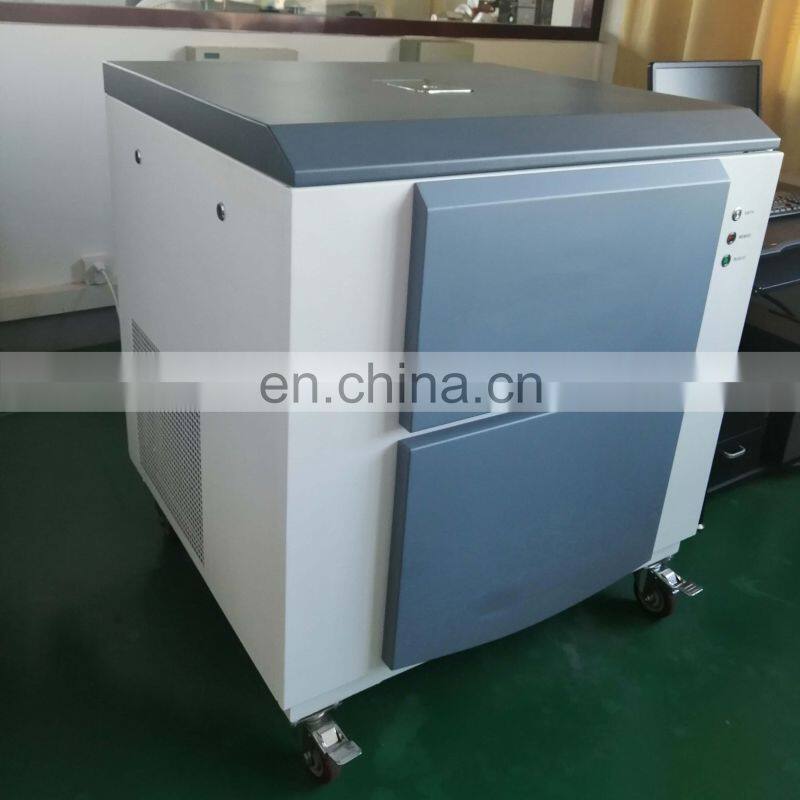

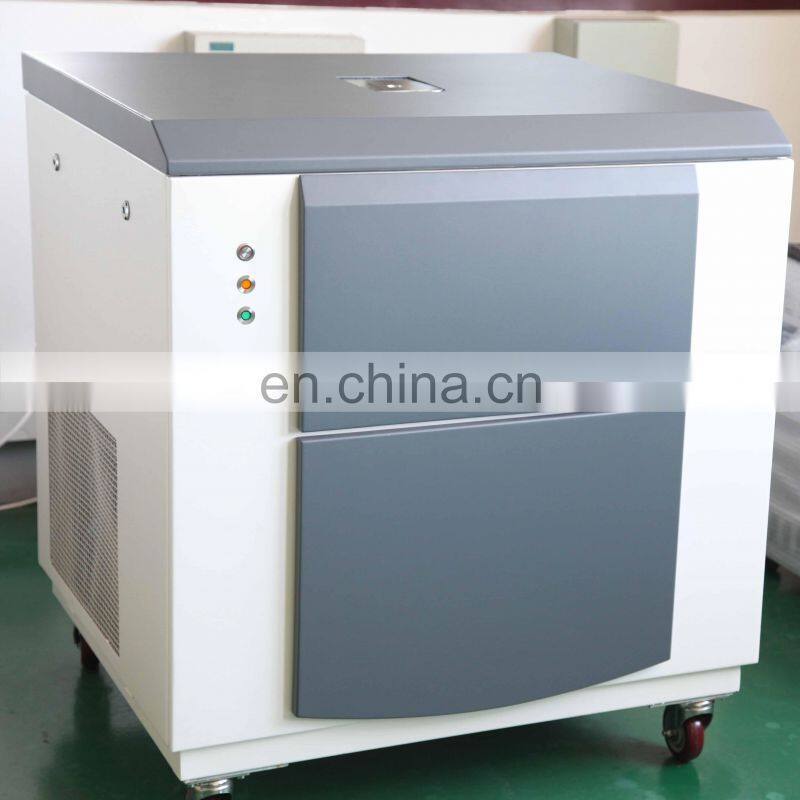

Product Show:
