Home > Products > ON-line sales > 42ZYT04C high speed Dc Motor 10000rpm 92w
42ZYT04C high speed Dc Motor 10000rpm 92w
USD $14 - $14
/ Piece
100 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
63mm high torque 12v dc electric motor rated 250mNm 2800rpm
-
42mm High Torque Brush Pmdc Motor 12v 24v 36v 40v, rated torque upto 100mNm
-
42ZYT04A O.D 42mm High Torque Carbon Brush Dc Motor 12v 24v 25w 3350rpm 70mNm
-
O.D80mm Electric Dc Motor rated 2600rpm 0.6N.m 160w CE/ROHS
-
80mm Equivalent to GR80 Dc Motors 100w 200w 300w China Manufacturer
-
80ZYT01C 12v 24v Brushed DC Motor high power, high speed rated 6000rpm to 7000rpm, 0.6N.m, power 300w~500w
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 42ZYT04C | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 100mNm | |
| Usage | Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | customed | Speed(RPM) | no load 10000rpm | |
| Commutation | Brush |
Product Description

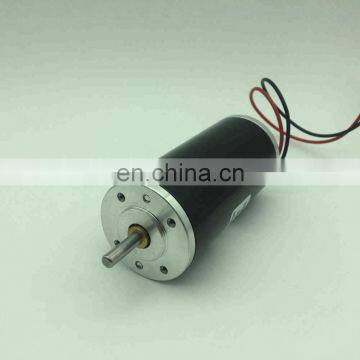

Permanent Magnet Brush DC Motor 42ZYT04C
Motor Specifications:
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Contact Us
- Changzhou Smart Automation Motor Manufacturing Co., Ltd.
