Home > Products > brushed dc motors > 42ZYT02A 12v 24v dc motor 57mNm 3100rpm 20w

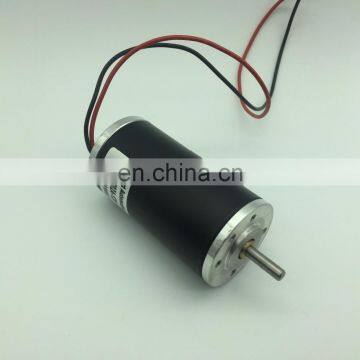

42ZYT02A 12v 24v dc motor 57mNm 3100rpm 20w
USD $6 - $15
/ Piece
5 Pieces(Min.Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
63mm high torque dc micro motor 24 v 3000rpm 310mNm 100w
-
OD63mm high torque Permanent Magnet Brushed Dc Motor 12V 24V 36V 40V 48V 60v power 50w 100w 150w 200w
-
63ZYT01A Brush Dc Micro Motor Equivalent to GR 63x25 Rated 0.14Nm 50W
-
63ZYT01C high torque high speed 10000rpm 12V 24V dc Motor 200w
-
63ZYT02A high torque Brushed 3000rpm dc Motor, rated 0.31Nm 100W
-
63ZYT03A high torque Brushed electric dc Motor, rated 0.40Nm 3000rpm 126W
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 42ZYT02A | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 57mNm | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Protect Feature | Drip-proof | Voltage(V) | 12v, 24v~40v | |
| Output Power | 20w | Continuous Current(A) | customed | |
| Speed(RPM) | 3100~3700rpm | Commutation | Brush |
Product Description
Permanent Magnet Brush DC Motor 42ZYT02A
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Model | 42ZYT02A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3750 | 3100 | 3400 |
Continuous rated torque | mN.m | 53 | 57 | 57 |
Continuous current | A | 2.7 | 1.2 | 0.8 |
Starting torque | mN.m | 320 | 330 | 360 |
Starting current | A | 13.2 | 5.68 | 3.97 |
No load speed | rpm | 4550 | 3800 | 3950 |
No load current | A | 0.44 | 0.18 | 0.12 |
Demagnetization current | A | 24 | 10.5 | 6.3 |
Rotor inertia | Gcm2 | 110 | 110 | 110 |
Weight of motor | g | 490 | 490 | 490 |
Motor length | Mm | 80 | 80 | 80 |
