Home > Products > brushed dc motors > O.D42mm High Torque 12 volt dc motor, 24 volt dc motor

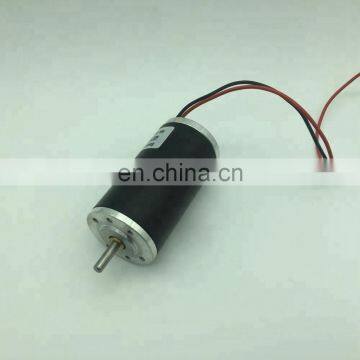

O.D42mm High Torque 12 volt dc motor, 24 volt dc motor
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
63zyt dc electric motor 12 volt 24 volt power 50w 100w upto 350w
-
brushless or brushed high torque dc micro motor 12v 24v upto 220vdc,10w, 50w,100w, 200W
-
good quality brushless brushed dc electric motor with power 20w, 50w, 75w, 100w, 150w, 200w, 300w, 400w, 600w, 800w, 1000w
-
China original customized 12 volt brushless dc motor OPTION 24v 36v 48v
-
brushless / brushed high torque 24v dc motor; dc 24v motor dc 24 volt
-
High Torque 12v 24v 36v 48v Pmdc Dc Small Motors with Power 10w upto 800w
Product Details
| Brand Name | SmartAutomation | Place of Origin | China | |
| Model Number | 42ZYT | |||
| Certification | CE, ROHS | Torque | 39mNm ~ 100mNm | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12, 24~40v | Output Power | customed | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model | 42ZYT01A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3450 | 3600 | 3700 |
Continuous rated torque | mN.m | 39 | 38 | 39 |
Continuous current | A | 1.9 | 0.9 | 0.6 |
Starting torque | mN.m | 190 | 200 | 220 |
Starting current | A | 7.8 | 4 | 2.76 |
No load speed | rpm | 4350 | 4200 | 4400 |
No load current | A | 0.34 | 0.17 | 0.11 |
Demagnetization current | A | 14 | 6.5 | 4.1 |
Rotor inertia | Gcm2 | 71 | 71 | 71 |
Weight of motor | g | 390 | 390 | 390 |
Motor length | Mm | 70 | 70 | 70 |
Model | 42ZYT02A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3750 | 3100 | 3400 |
Continuous rated torque | mN.m | 53 | 57 | 57 |
Continuous current | A | 2.7 | 1.2 | 0.8 |
Starting torque | mN.m | 320 | 330 | 360 |
Starting current | A | 13.2 | 5.68 | 3.97 |
No load speed | rpm | 4550 | 3800 | 3950 |
No load current | A | 0.44 | 0.18 | 0.12 |
Demagnetization current | A | 24 | 10.5 | 6.3 |
Rotor inertia | Gcm2 | 110 | 110 | 110 |
Weight of motor | g | 490 | 490 | 490 |
Motor length | Mm | 80 | 80 | 80 |
Model | 42ZYT04A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3350 | 3350 | 3350 |
Continuous rated torque | mN.m | 70 | 70 | 70 |
Continuous current | A | 2.8 | 1.4 | 0.85 |
Starting torque | mN.m | 400 | 400 | 400 |
Starting current | A | 15.1 | 7.5 | 4.62 |
No load speed | rpm | 4000 | 4000 | 4000 |
No load current | A | 0.35 | 0.25 | 0.15 |
Demagnetization current | A | 24 | 10.5 | 6.3 |
Rotor inertia | Gcm2 | 193 | 193 | 193 |
Weight of motor | g | 600 | 600 | 600 |
Motor length | Mm | 90 | 90 | 90 |
