90mm heavy duty big power dc brushed motor, continuously running, long life, 300w 400w 500w
USD $25 - $60
/ Piece
5 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
42ZYT04C high speed permanent magnet brush Dc Motor no load 10000rpm, rated torque 100mNm
-
80mm High Torque Electric DC Motor dc 24volt 250w
-
DC Electric Motor 12v 24v with Power 200w 250w 300w 400w upto 500w
-
O.D80mm higher torque 24 volt electric dc motor 24v 300w with over 1 N.m torque
-
63mm series permanent magnet electric 12v dc motor 200w rated 0.44Nm 4400rpm
-
63mm high torque dc electric 24v motor over 250w rated 0.5Nm 5000rpm
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 90zyt | Type | Servo Motor | |
| Certification | CE, ROHS | Torque | 1-2Nm | |
| Usage | Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | customed | Speed(RPM) | 1500rpm~4000rpm | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NSK ball bearing
Protection class IP 50 Hard ferrite magnet, 4- poles
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
LONG LIFE, HEAVY DUTY
Motor Main Characteristics
Model | 90ZYT01A | 90ZYT-180 | 90ZYT02A |
Rated Voltage | 24v (option for 12v up to 230vdc) | ||
Rated Speed (rpm) | 3000 | 3000 | 3000 |
Rated Torque (Nm) | 1.2 | 1.6 | 1.8 |
No load speed (rpm) | 3600 | 3500 | 3600 |
Weight (Kg) | 3.5 | 4.0 | 4.5 |
Motor Length (mm) | 155 | 180 | 199 |
Output Power (W) | 377 | 503 | 565 |

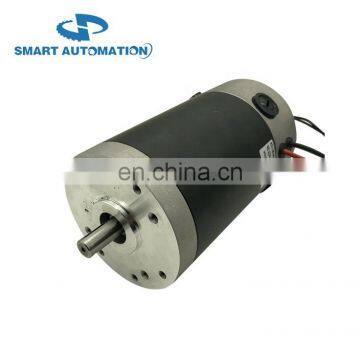

MOTOR PICTURES
DETAILED SPECIFICATION
MODEL 90ZYT01A
90ZYT02A
M
GEARED VERSION:
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
