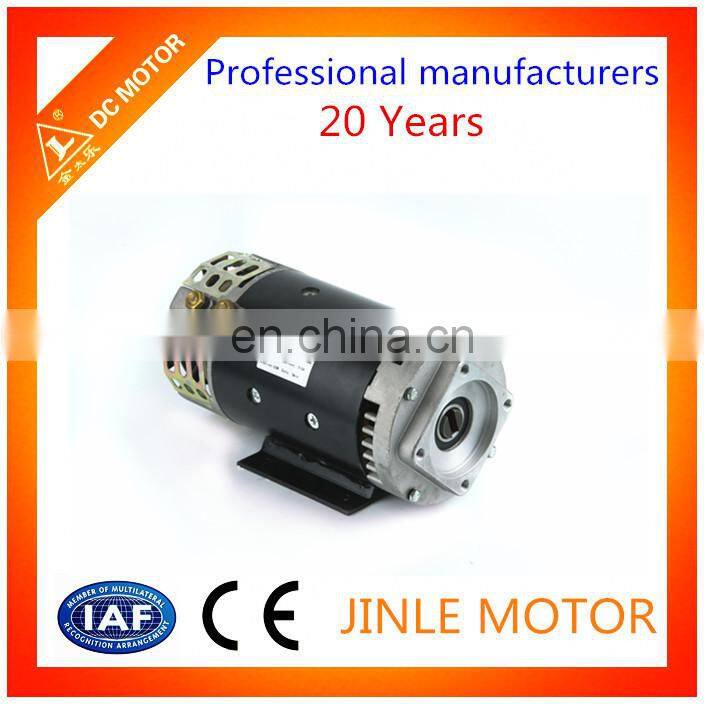

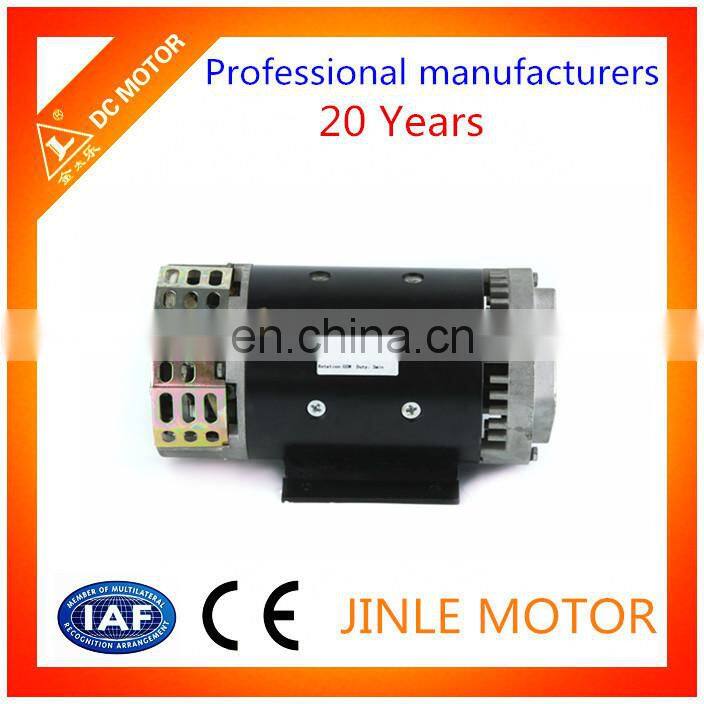

High Power 24 Volt 4.0KW Electric Hydraulic DC Motor
- T/T Credit Card
You May Like
Product Details
| Brand Name | JINLE | Place of Origin | Jiangsu, China | |
| Model Number | XQD-3C | Type | Micro Motor | |
| Certification | CE | Torque | 10N.m | |
| Usage | Boat, Car, Electric Bicycle, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 4 | Protect Feature | Drip-proof | |
| Voltage(V) | 24V | Output Power | 4.0KW | |
| Continuous Current(A) | Current | Speed(RPM) | 3100RPM | |
| Commutation | Brush |
Product Description
High Power 24 Volt 4.0KW Electric Hydraulic DC Motor
Features:
stable running
high efficiency
low noise
12V, 24V, 48V, etc. on your request
Customized production is available!
Customized color and package is accepted!
Supply for OEM Production!
nearly 20 years' manufacturing experience
We are OEM manufacturer of WAI Group!
Specification:
1) Type: XQD-3C
2) Voltage: 24V
3) Power: 3.5KW
4) Speed: 3100RPM
5) Rotation: CW
6) O.D. : 142mm
7) Operating mode: S2
8) Insulation Class: F
9) Protection Degree: IP 54
10) Torque: 10N.m
Technical Data
Type | Voltage | Power | Speed | Rotaion | O.D. |
W5692 | 12V | 1.6KW | 2500RPM | CW | 114mm |
W6599 | 12V | 1.7KW | 2720RPM | CW | 114mm |
W9789 | 12V | 1.6KW | 2500RPM | CW | 114mm |
ZD4201 | 48V | 2.0KW | 2700RPM | CW | 114mm |
ZD1223 | 12V | 2.0KW | 2800RPM | CW | 114mm |
ZD293 | 24V | 2.2KW | 3000RPM | CW | 114mm |
ZD2930 | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZD1221 | 12V | 2.0KW | 2900RPM | CW | 114mm |
ZD2931 | 24V | 2.0KW | 2600RPM | CW | 114mm |
ZD223A | 24V | 2.2KW | 2700RPM | CW | 114mm |
ZDY211 | 24V | 0.8KW | 3650RPM | CW | 80mm |
ZDY212 | 24V | 0.5KW | 2800RPM | CW | 80mm |
ZDY112 | 12V | 0.5KW | 2300RPM | CW | 80mm |
ZDY113 | 12V | 0.8KW | 3500RPM | CW | 80mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2973A | 24V | 3.0KW | 3100RPM | CW | 127mm |
ZD2373 | 24V | 3.0KW | 2850RPM | CW | 125mm |
XQD-3C | 24V | 3.5KW | 3100RPM | CW | 142mm
|
