Features of carbon brush 12v 1400w hydraulic dc motor:

100% copper wire

100% New

3-POST Bi-directional motor

20-Spline Shaft

Winch

Without overload device(OLP)

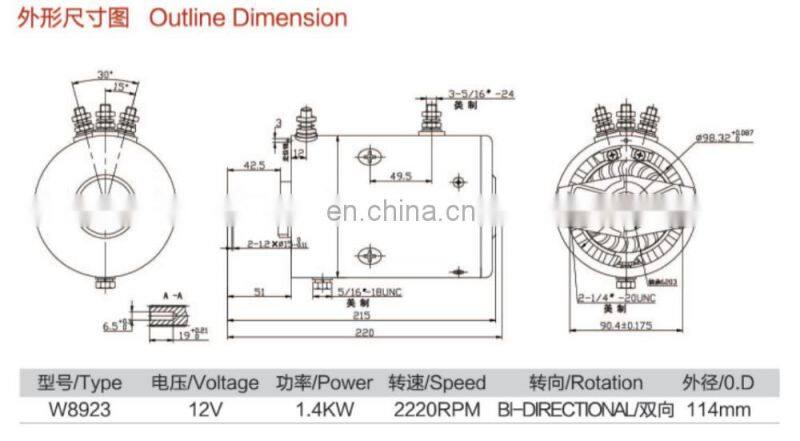

Specification of carbon brush 12v 1400w hydraulic dc motor:

1) Type: W8923

2) Voltage: 12V

3) Power: 1.4KW

4) Speed: 2250PM

5) Rotation: BI-DIRECTIONAL, forward & reverse

6) O.D. : 114mm

7) Operating mode: S3

8) Insulation Class: F

9) Protection Degree: IP 54

10) Torque: 6N.m

LESTER 10746

WAI 82-6867-1

PIC 160-800, 160-806

Replaces: Bosch 0-130-450-047, Letrika(Iskra)Tech. AMJ4635, Prestolite MRVB4, MRVB5, Wapsa 9130450047, 7536, 15747, 15877, 17102, 18184, W8923, 226626, 26629, D-2000, M-1900, 458058, 11212449, 7682, M-2401, 2401, M-2404, 2402

Applications: MXI2085,MI12000,MXI0000,MI0000,M8274(SUPERWINCH HUSKY SERIES)

1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time

5) Customization available

6) Robust construction for long and reliable service life
7) 100% copper wire

8) 12V, 24V, 36V, 48V,60V,72V as per customers' option

9) Factory established in 1996 with nearly 20 years' manufacturing experience
