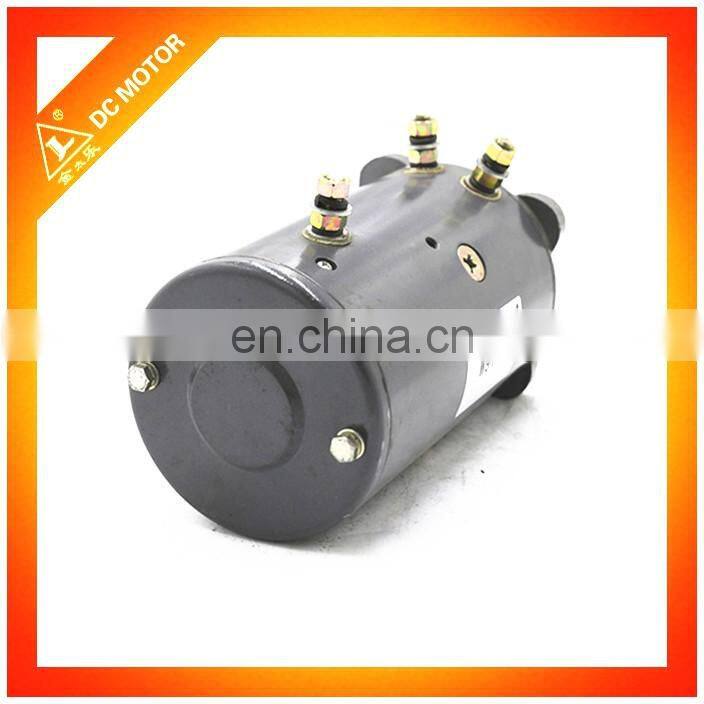

12V 1500W Electric DC motor Specifications

Specifications of 12V 1500W Electric DC motor Specifications :

1) Type: W9144

2) Voltage: 12V

3) Power: 1.5KW

4) Speed: 2150PM

5) Rotation: BI-DIRECTIONAL

6) O.D. : 114mm

7) Operating mode: S3

8) Insulation Class: F

9) Protection Degree: IP 54

10) Torque: 6N.m

LESTER 5687N-DBHD

WAI  82-6868-2

 12V 1500W Electric DC motor Specifications

1) Low noise
2) Easy brush replacement
3) OEM service avaliable
4) Efficient and long continuous running time

5) Customization available

6) Robust construction for long and reliable service life
7) 100% copper wire

8) 12V, 24V, 36V, 48V,60V,72V as per customers' option

9) Factory established in 1996 with nearly 20 years' manufacturing experience

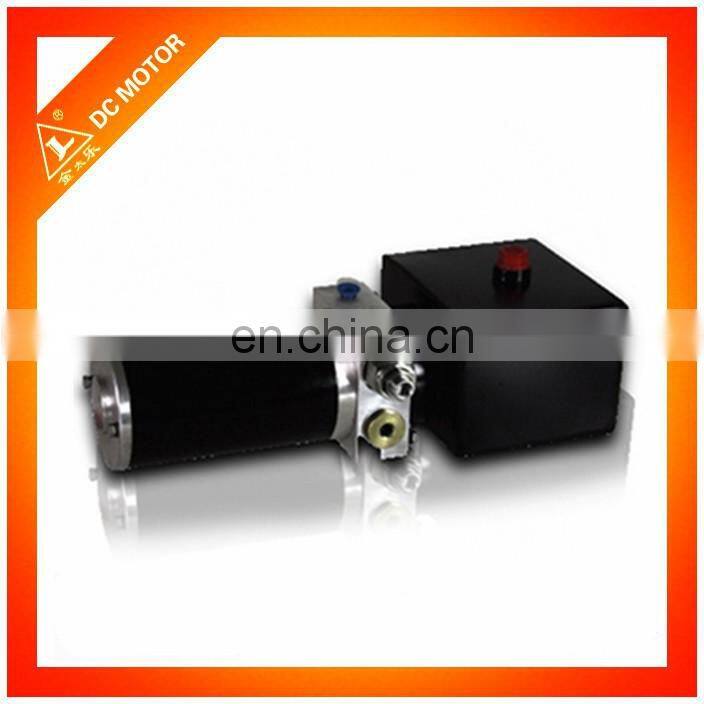

Other Kinds Of Hydraulic DC Motors you maybe interested in , you just need to click on the dc motor picture , then you can have a view of each model :

If you need our dc motor hydraulic catalog , welcome to send inquiry to me, we will send to you via email.

 Our factory was established in 1996,  professional in forklift motors, hydraulic power unit motors.

1. Business Type

a. Manufacturer located in Wuxi City, Jiangsu Province
b. Factory cover an area of 6000 square meterselectric forklift motor
c. Employees: over 70 in office & workshops

2. Certificates

CE, ISO9001 etc

3. How long could we get the goods?

a. 10-20days for mass production based on your quantity
b. 5~10days for Sampe orders

4. Quality Control

a. 100% inspection before packing electric forklift motor
b. Spot inspection before shipment
