Home > Products > Motor > 12V 24V 48V DC Type 1NM 3000RPM Brushless DC Motor BLDC S740 for Manufacturing Devices
12V 24V 48V DC Type 1NM 3000RPM Brushless DC Motor BLDC S740 for Manufacturing Devices
- T/T Credit Card
You May Like
-
12V 24V 48V DC Type 1NM 3000RPM Brushless DC Motor BLDC S740 for Manufacturing Devices
-
12V 24V 48V DC Type 1NM 24V DC 4000RPM Electric Motor Brushless DC Motor BLDC S754 for Automation
-
Mcmaster Factory Cost High Speed Low Torque Automation Permanent Magnet 48V Brushless dc Motor
-
S776 12V 24V High Speed Low Torque dc Motor 28mm Planetary Gear Motor
-
24V 48V 15W 0.24NM High Speed Low Torque 12v Brushless dc Motor S781
-
24V 48V 25W 0.45Nm High Speed Low Torque 12v Brushless dc Motor BLDC S782 for Medical Devices
Product Details
| Brand Name | McMaster | Place of Origin | Jiangsu, China | |
| Model Number | S740 | Type | Micro Motor | |
| Certification | CCC, ROHS | Torque | 1.05 N.m | |
| Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 2 | Protect Feature | Totally Enclosed | |
| Continuous Current(A) | 9 A | Speed(RPM) | 300 rpm | |
| Commutation | Brushless |
Product Description

DC Motor 48V High Speed Low Torque Brushless motor BLDC 48V

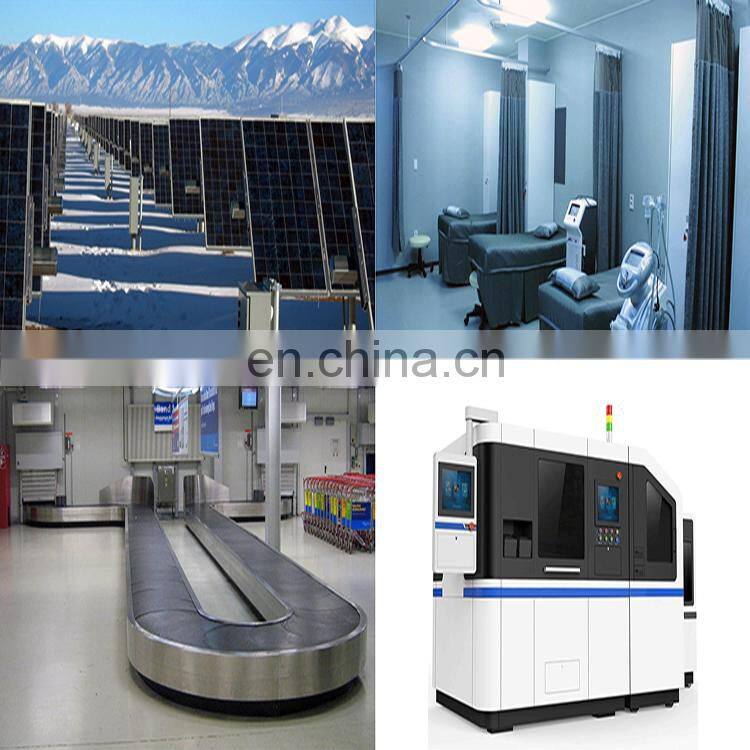

Product Application: brake motor, medical equipment, mechanical equipment, solar tracking device etc.
Model | Voltage (VDC) | No Load | Rated Load | Toque (N.m) | Cogging Toque (N.m) | Moment of Inertia (Kg.cm2) | Torque Constant (N.m/A) | Length (mm) | ||
Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | |||||||
S740 | 48 | 1.51 | 3488 | 9.16 | 3000 | 1.05 | 0.06 | 0.921 | 0.137 | 122 |

DC Motor 48V High Speed Low Torque Brushless motor BLDC 48V
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.


McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
12V 24V 48V DC type 1NM 3000RPM Brushless DC Motor BLDC S740 for manufacturing devices
DC Motor 48V High Speed Low Torque Brushless motor BLDC 48V
