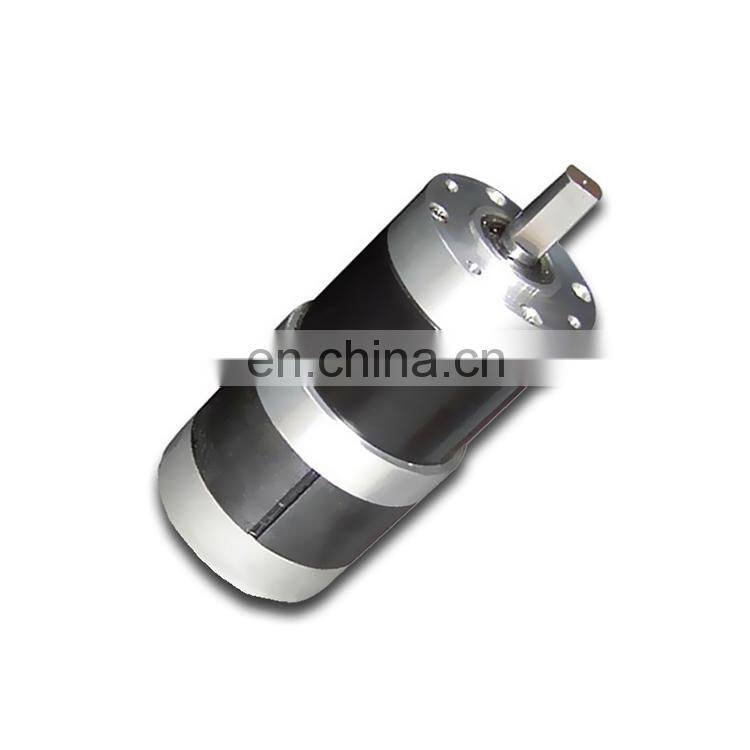

DC Motor 12v 24V 48V Brushless Planetary Reduction Gear Motor S922
- T/T Credit Card
You May Like
-
DC Motor 12v 24V 48V Brushless Planetary Reduction Gear Motor S906
-
12V 48v Brushless 200 Watt dc Motor With Planetary Gear S905
-
12V 24V 48v 200 Watt With Planetary Reduction Gear Brushless dc Motor S904
-
12V 24V DC Planetary Gear Motor With High Torque of 15NM 25NM
-
BMM80 Smart Lock Injector 15V Micro Permanent Magnet Linear Motor Stepping 35BY Series Robot
-
2020 Sensored Bldc 6374 5065 Motor Single Driver Speed Controller With 2.4g Remote Electric Skateboard Four-wheel Scooter
Product Details
| Brand Name | McMaster | Place of Origin | Jiangsu, China | |
| Model Number | S922 | Type | Gear Motor | |
| Certification | CCC, ROHS | Torque | 440Nm | |
| Usage | Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 2 | Protect Feature | Totally Enclosed | |
| Continuous Current(A) | 11.8A | Speed(RPM) | 3rpm | |
| Commutation | Brushless |
Product Description

Brushless DC Motor 24V Planetary Reduction Gear Motor Gear Motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
Model | Voltage (VDC) | No Load | Rated Load | Toque N.m | Ratio | Power (W) | Length (mm) | ||
Current(A) | Speed(r/min) | Current(A) | Speed(r/min) | ||||||
S922 | 24 | 2.70 | 4 | 11.79 | 3 | 439.3 | 836.86 | 137 | 205 |
Voltage (VDC) | No Load | Rated Load | Toque (N.m) | Moment of Inertia (Kg.cm2) | EMF constant (V/rpm) | torque constant (N.m/A) | Length (mm) | ||
Current(A) | Speed(r/min) | Current(A) | Speed(r/min) | ||||||
24 | 1.77 | 2941 | 11.79 | 2500 | 0.8 | 1.414 | 0.0083583 | 0.0798 | 86 |
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.


McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
