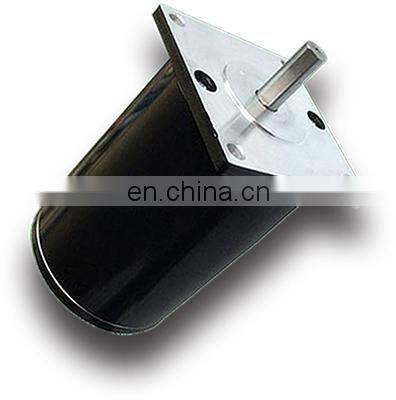

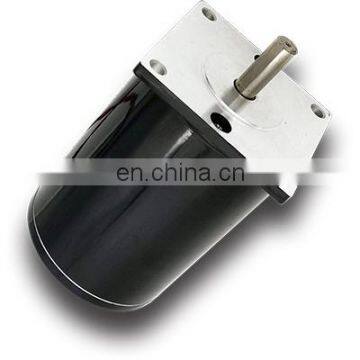

12v 24V 150w 76 Diameter 1900RPM High Speed dc Motor BMM76003E
US$ 25 - 50
/ Piece
2 Pieces(Min. Order)
- Shanghai Ningbo
- T/T Credit Card
You May Like
-
12V 200NM 14RPM Gear Motor High Torque Planetary DC Motor BMM12006M
-
BDVH012R-T-1 Smart Office Furniture Self Rising Multi-Motor Adjustable Table
-
12V 24V 76 Diameter 1100RPM High Speed dc Motor BMM76004E
-
SM12005W Durable 24v 48V High Torque Planetary dc Gear Motor
-
12V 24V 76 Diameter 3000RPM High Speed dc Motor BMM76005E
-
Durable 12v 48V High Torque 200NM 14RPM Planetary dc Gear Motors SM12006W
Product Details
| Brand Name | McMaster | Place of Origin | Jiangsu, China | |
| Model Number | BMM76003E | Type | Micro Motor | |
| Certification | CCC, ROHS | Torque | 0.6N.m | |
| Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 2 | Protect Feature | Totally Enclosed | |
| Continuous Current(A) | 12 A | Speed(RPM) | 2500rpm | |
| Commutation | Brush |
Product Description
Product:OD 88 mm 1500 rpm brushed 12v dc motor high speed permanent magnet motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
| Model |
VOLTAGE (VDC) |
NO LOAD |
RATED LOAD |
TORQUE (Nm) |
Power (W) |
O.D (mm) |
LENGTH (mm) |
||
|
CURRENT (A) |
SPEED (r/min) |
CURRENT (A) |
SPEED (r/min) |
||||||
|
BMM76003 |
12 |
1.3 |
2900 |
5.3 |
2500 |
0.6 |
150 |
76 |
137 |
For more information, you can visit our website
