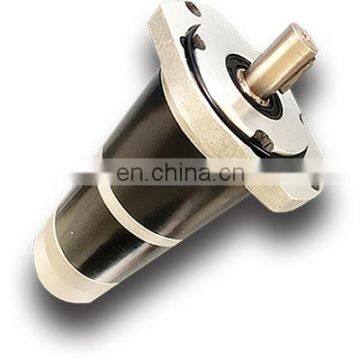

24V High Torque Planetary Gear DC Electric Motor With Gearbox for Robotics BMM5051E
US$ 85 - 139
/ Piece
2 Pieces(Min. Order)
- Shanghai Ningbo
- T/T Credit Card
You May Like
-
24V High Torque Gear Motor Planetary Reduction Direct Current Motor for Robots BMM5052E
-
12V Electric Winch Motor High Torque Planetary DC Motor With Gearbox BMM12002M
-
Durable WGB-M-4 Gearbox Irrigation System Gearbox Motor 50:1 Ratio Cast Iron RoHS Certified Worm Reduction Motor BMI008w
-
12V High Torque Geared DC Planetary Gearbox Motor BMM12003M
-
12V 24V 76 Diameter 2000RPM High Speed dc Motor BMM76001E
-
24V Standard Customizable Precision DC Electric Motor With High Torque Gear Planetary Motor Reducer BMM5054E
Product Details
| Brand Name | McMaster | Place of Origin | Jiangsu, China | |
| Model Number | BMM5051E | Type | Gear Motor | |
| Certification | CCC, ROHS | Torque | 6 N.m | |
| Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 2 | Protect Feature | Totally Enclosed | |
| Continuous Current(A) | 7.5 A | Speed(RPM) | 170RPM | |
| Commutation | Brush |
Product Description
Product:170 rpm High Torque DC Planetary Reduction Gear Motor 24v reducer motor
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
|
VOLTAGE (V) |
NO LOAD |
RATED LOAD |
Torque (N.m) |
RATIO |
STAGE |
Power (W) |
LENGTH (mm) |
|||
|
CURRENT (A) |
SPEED (r/min) |
CURRENT (A) |
SPEED (r/min) |
|||||||
|
BMM505 |
24 |
1.39 |
201 |
7.48 |
167 |
5.8 |
18 |
2 |
102 |
190 |
|

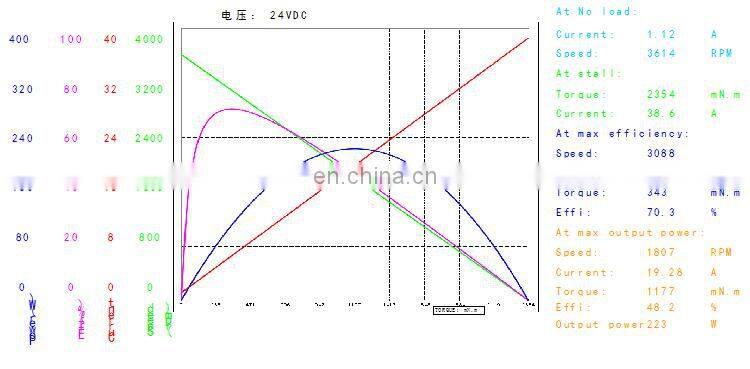

Voltage (VDC) |
No Load |
Rated Load |
Toque (N.m) |
EMF constant (V/rpm) |
torque constant (N.m/A) |
Length (mm) |
||
|
Current(A) |
Speed(r/min) |
Current(A) |
Speed(r/min) |
|||||
|
24 |
1.12 |
3614 |
7.48 |
3000 |
0.4 |
0.0065887 | 0.0629 | 115 |
