Home > Products > Solenoid Valve > 101DH1inch BSP female threaded inlet and outlet with flow control mechanism Plastic Electric Valves - The Right Choice in Valves
101DH1inch BSP female threaded inlet and outlet with flow control mechanism Plastic Electric Valves - The Right Choice in Valves
US$ 20 - 20
/ Piece
8 Pieces(Min. Order)
- Ningbo Sea Port Shanghai Sea Port Shanghai Air Port
- T/T Credit Card
You May Like
-
zanchen Sprinkler Z&W-RB01-DL DC Latching Solenoid coil for TBOS Battery Controllers solenoid head
-
plastic irrigation solenoid valve 076DH for water garden landscape suitable rain bird and hunter AC24 3/4 INCH DN20
-
3 inch (3" / 80 mm ) Plastic Irrigation Solenoid Valve for Agricultural irrigation
-
irrigation solenoid valve 2" inch DN50 PE63 for watering landscape suitable rain bird hunter bermad
-
solenoid controlled valve with 2-Way Internal Controls and Trio integrated Open-Auto-Close manual selector
-
plastic irrigation solenoid valve 076D landscaping agriculture watering magnetic pulse 3/4" DN20 AC24V 110 DC Latching
Product Details
| Brand Name | zanchen | Place of Origin | Zhejiang, China | |
| Model Number | 101DH | Material | Plastic | |
| Application | General | Structure | Pilot | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Port Size | 25mm | Media | Water | |
| Temperature of Media | Medium Temperature |
Product Description

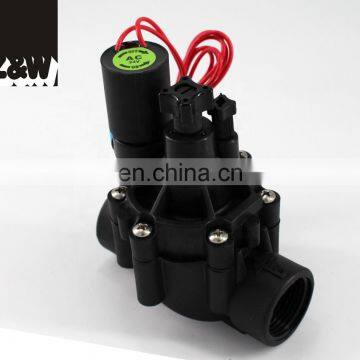

101DH1inch BSP female threaded inlet and outlet with flow control mechanism
Plastic Electric Valves - The Right Choice in Valves
Double-filtered pilot-flow design for maximum reliability.
Balanced-pressure diaphragm for long life.
Energy-efficient, low-power encapsulated solenoid with captured plunger and 200 micron solenoid filter.
Ease of Service
Flow control mechanism on 101DH model.
Manual On/Off
Internal bleed for spray-free manual operation.
External bleed screw to manually flush system of dirt and debris during installation and system start-up.
Versatility
Reliability
Rugged nylon body.
Stainless steel phillips head screws.
ELECTRICAL SPECIFICATIONS
2-Way Magnetic Latch Solenoid Actuator, 9VDC Latch, 2- Leads
Electrical Data:
Voltage Range: 6-24 VDC
Coil Resistance: 6Ω
Coil Inductance: 90 mH
Pulse Width: 20-100 mSec.
Required Capacitor: 4700μF
Operation Modes (electrical connections):
+Red & -Black: Latch Position
+Black & -Red: Released Position
