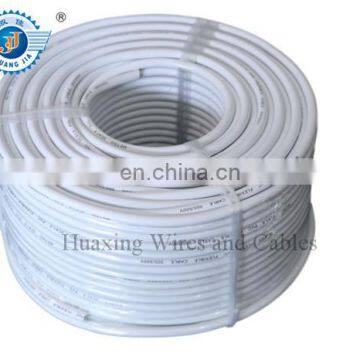

600/1000V Power flex Cable (0.6/1KV CU/XLPE/PVC) flexible conductor
USD $0.5 - $3
/ Meter
1000 Meters(Min.Order)
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | SHUANGJIA | Place of Origin | Henan, China | |
| Model Number | VV/VV22/VV32 | Type | Low Voltage | |
| Application | Construction | Insulation Material | XLPE | |
| Jacket | PVC | Conductor Material | Copper |
Product Description
Product Description
Specificate:
This product is widely used in the construction of buildings airports, power transportation, urban and rural power network refor
0.6/1kv PVC sheath cable.
Number Of core: 1 core, 2 core, 3 core, 4 core, 5 core
Voltage: 0.6/1KV
1) Copper (aluminum) cores / XLPE insulated / PVC(PE) sheathed power cable
2) Copper (aluminum) cores /XLPE insulated /steel tape armored/ PVC ( PE) sheathed power cable
3) Copper (aluminum) cores /XLPE insulated / thin steel wire armored/ PVC ( PE) sheathed power cable
4) Copper (aluminum) cores /XLPE insulated / thick steel wire armored/ PVC ( PE) sheathed power cable
The products can be produced according to our factory specification which is equivalent to the standard IEC60502. Their structures are simple. The permissible maximum operating temperature is 90C. It is convenient for using, and they can be laid with no restriction of different elevation.
Feature:
PVC insulated and sheath power cable
1) The long-term working tempeture of cable should be not higher than 70 degree.
2) When core is in short-circuit (Max. 5s), the tempeture should not exceed 160 degree.
3) While installation the ambient tempeture should not be lower than o degree, and bending radius should not be less than 10 times of outer diameter.
Model, name and application
Model | Name | Main Application |
V V VLV | PVC Insulated Sheathed Power Cable | For laying in doors, pipe and kin tunels, but unable to bear pulling force. |
V V22 VLV22 | PVC Insulated steel tape armoured and PVC sheathed power cable | For laying on in indoor, tunels and underground, able to bear pulling force and pressure |
V V32 VLV32 | PVC insulated fine steel wire armoured and PVC sheathed power cable | For laying indoor, tunels and water, bear certain axis pulling force |
ZR-V V ZR-VLV | PVC insulated PVC sheathed flame retardant power cable | For laying indoor, pipe and kin tunels, but unable to bear pulling force and pressure. |
ZR- VLV22 | PVC insulated steel tape armoured and PVC sheathed flame retardant power cable | For laying indoor, tunnels and underground, able to bear pulling force and pressure |
ZR-V V32 ZR-VLV 32 | PVC insulated fine steel wire armoured and PVC sheathed flame retardant power cable | For laying indoor, tunnels and water, able to bear pulling force and pressure. |
ZR-V V42 ZR-VLV42 | PVC insulated steel wire armoured and PVC sheathed flame retardant power cable | For laying tunels, water and other upright place, bear certain axis pulling force |
Packaging & Shipping
Packing: Standard wooden drum
Shipping: FOB/CIF QINGDAO
