0.6/1KV Aluminium Pvc Power Cable
- Qingdao
 - T/T Credit Card

You May Like
Product Details
| Brand Name | shuangjia | Place of Origin | Henan, China | |
| Model Number | VV VLV VV22 VV32 | Type | Low Voltage | |
| Application | Construction | Insulation Material | PVC | |
| Jacket | PVC | Conductor Material | Copper |
Product Description

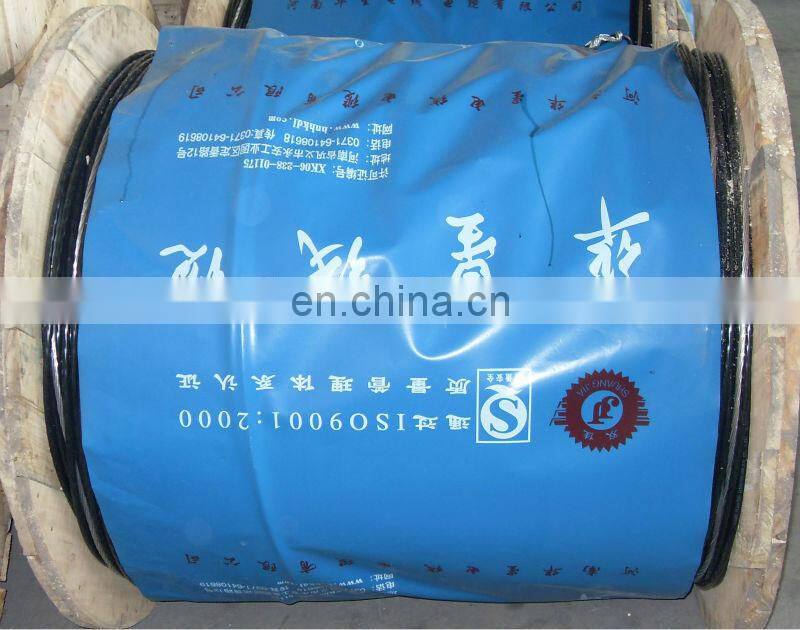

0.6/1KV aluminium pvc power cable With following features
pvc power cable is mainly for laying indoor, tunnel, channel and under ground, shaft with large differences of level and other conditions. Rated voltage 10-220kV XLPE insulated power cables have been widely used in our country with the advantages of excellent electric properties, high long term working temperature, strong ability to resist short circuit, long service life, light weight and without the limit of fall, easy to install, operate and maintain.
pvc power cable can be laid without the limit of fall with enough mechanical pull, But the single core cable cannot be laid in iron tube or cannot be fixed by circled iron tools around the cables
pvc power cable laying temperature of cables should not be lower than 0 C, When the ambient temperature is below 0 C, the cables should be heated up to 0 C Or higher with certain methods.
0.6/1KV aluminium pvc power cable Include following code and specification
Nominal sectional area mm 2  | Conductor No/Dia. mm  | Nominal Insulated thick mm  | Max overall Dia. mm  | Condcutor Resistance at 20  | Min insulated resistance at 70MΩ/km  | Weight Kg/km  | ||
Cu  | Al  | Cu  | Al  | |||||
1.5  | 1/1.38  | 0.7  | 3.3  | 12.1  | -  | 0.011  | 19.2  | -  |
1.5  | 7/0.52  | 0.7  | 3.5  | 12.1  | -  | 0.010  | 20.6  | -  |
2.5  | 1/1.78  | 0.8  | 3.9  | 7.41  | 11.8  | 0.010  | 30.8  | 15.0  |
4  | 1/2.25  | 0.8  | 4.4  | 4.61  | 7.39  | 0.0085  | 45.5  | 21.0  |
6  | 1/2.76  | 0.8  | 4.9  | 3.08  | 4.91  | 0.0070  | 65.0  | 29.0  |
10  | 7/1.35  | 1.0  | 7.0  | 1.83  | 3.08  | 0.0065  | 110.0  | 52.0  |
16  | 7/1.70  | 1.0  | 8.0  | 1.15  | 1.91  | 0.0050  | 170.0  | 70.0  |
25  | 7/2.14  | 1.2  | 10.0  | 0.727  | 1.20  | 0.0050  | 270.0  | 110.0  |
MOQ, Capacity& Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight
If you are interested in our products, pls supply more specification, such as, how many cores, nominal section area, conductor material(aluminum or copper) and usuage to me. Then,I will send our best quotation to you.
