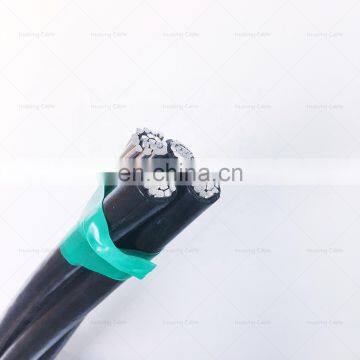

XLPE /PE insulated Aluminum conductor Aerial bundled ABC cable malaysia size
- qingdao
- T/T Credit Card
You May Like
-
Duplex Triplex ABC Cable Overhead Aerial Bundled Cable Aluminum Conductor XIPE Insulated
-
ABC Cable with AAAC Messenger Core 1*35+35 1*50+50
-
3 x150mm2 + 1 x 70mm2 XLPE Insulated Aerial Bundled Aluminum ABC Cable
-
ASTM Standard Aerial Bundled ABC DUPLEX TRIPLEX QUADRUPLEX CABLE
-
Aerial Bundled ABC CABLE SINGLE /TWO / THREE / FOUR PHASE
-
AL-steel/XLPE ABC light type Cable electrical cable wire JKLV/JKYJ 33kv overhead ABC cable
Product Details
| Brand Name | shuangjia | Place of Origin | Henan, China | |
| Model Number | abc | |||
| Application | Other | Insulation Material | PVC | |
| Jacket | PVC | Conductor Material | Aluminum |
Product Description
Standard: National Standard IEC and ASTM
Rated Voltage: 0.6/1KV
Construction: Phase conductor: aluminum stranded(AAC)
Neutral conductor: aluminum stranded(AAC), aluminum alloy stranded(AAAC), aluminum conductor steel reinforced(ACSR)
Insulation: XLPE or HDPE
Application: The cables are designed for aerial power lines and room-entrance wires with voltage up to and including 0.6/1KV.
Uesd for overhead service application such as street linghting, outdoor lighting and temporary service for cunstruction.which improves the safety and reliance of electrified wire netting.
| SPEC mm2 | conductor structure | Approx. | ||||||
| Phase | Neutral(Bare ACSR) | insulation | insulation | Overall | Approx. | packing | ||
| (Compacted AL) | Aluminium | Steel | material | Thickness | Diameter | Weight | Meters Per | |
| (No./mm) | (No./mm) | (No./mm) | (mm) | (mm) | (kg/km) | Drum | ||
| 1x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE | 1.2 | 12.5 | 121.9 | 250-4000m |
| 1x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 14.9 | 182.2 | 250-4000m | |
| 1x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 17.5 | 254.7 | 250-3500m | |
| 1x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 20.1 | 333.9 | 250-3000m | |
| 1x70+1x70 | 19/2.15 | 12/2.15 | 17/2.15 | 1.4 | 23.6 | 382.2 | 250-3000m | |
| 1x95+1x95 | 19/2.54 | 12/5.24 | 17/5.24 | 1.6 | 27.6 | 528.2 | 250-3000m | |
| 2x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | (HDPE) | 1.2 | 14.2 | 187.6 | 250-4000m |
| 2x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 16.7 | 273.8 | 250-3500m | |
| 2x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 19.7 | 386.9 | 250-3500m | |
| 2x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 22.5 | 506 | 250-3000m | |
| 2x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 26.1 | 617.2 | 250-3000m | |
| 2x95+1x95 | 19/2.54 | 12/5.24 | 7/5.24 | 1.6 | 30.5 | 850.9 | 250-3000m | |
| 3x16+1x16 | 7/1.72 | 6/1.72 | 1/1.72 | 1.2 | 16.3 | 253.3 | 250-3500m | |
| 3x25+1x25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 19.1 | 371.9 | 250-3500m | |
| 3x35+1x35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 22.5 | 519.1 | 250-3000m | |
| 3x50+1x50 | 7/2.92 | 6/2.92 | 1/2.92 | 1.4 | 25.7 | 678.1 | 250-3000m | |
| 3x70+1x70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 29.7 | 1024.3 | 250-3000m | |
| 2x95+1x95 | 19/2.54 | 12/2.54 | 7/2.54 | 1.6 | 34.6 | 1413.7 | 250-3000m | |
Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees ,our products have exported to more than 50 countries.
We are the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3) Treated wooden/steel-wooden drums for big diameter cables.
