Home > Products > Deep Groove Ball Bearings > Deep Groove Ball Bearing 6209 6209 z 6209 zz 6209 rs 6209 2rs , Size 45X85X19 mm

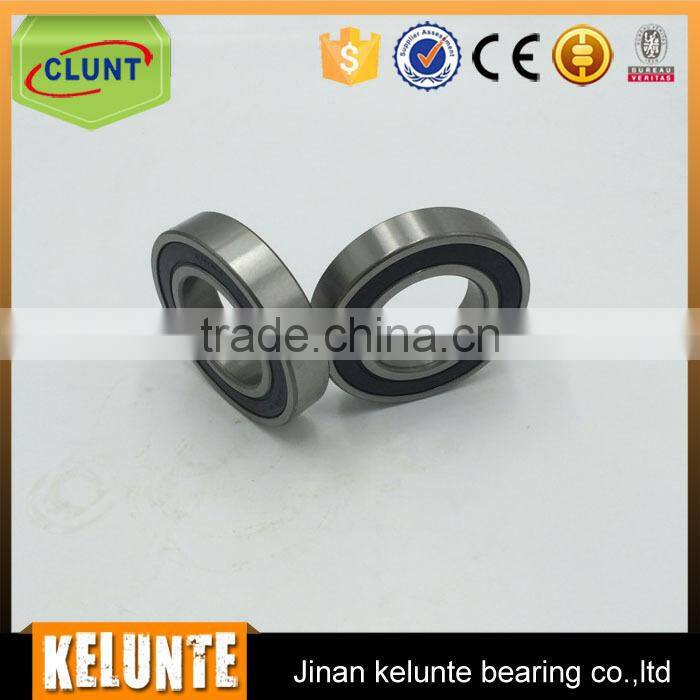

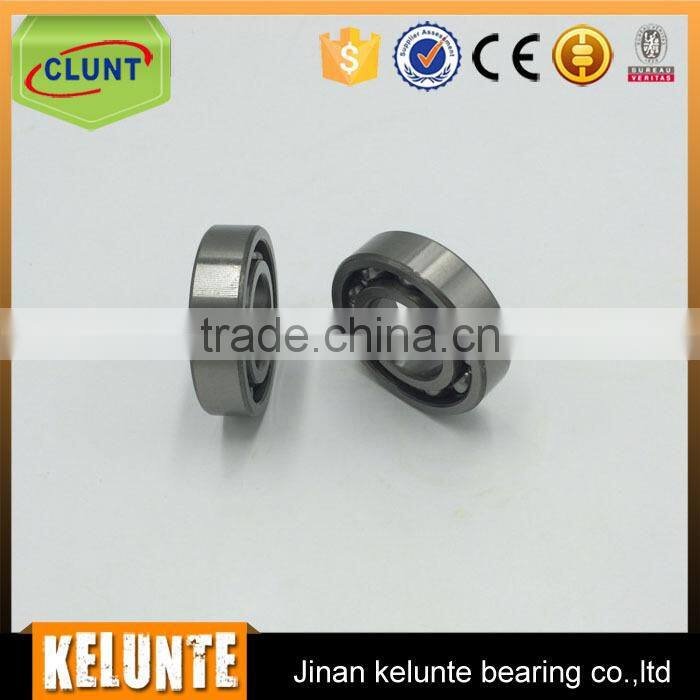

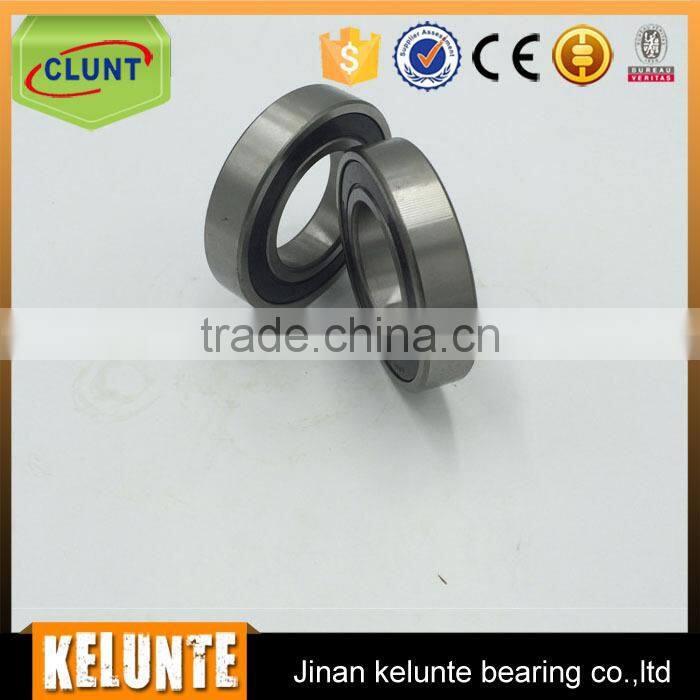

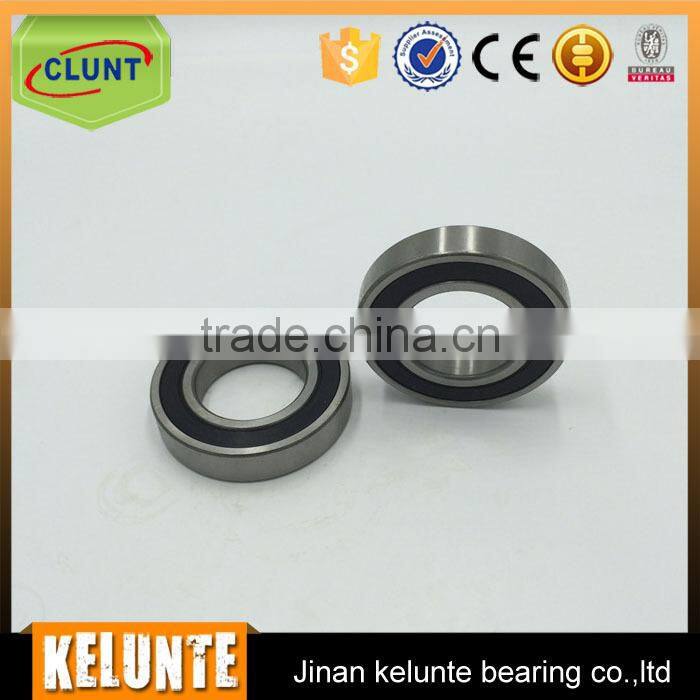

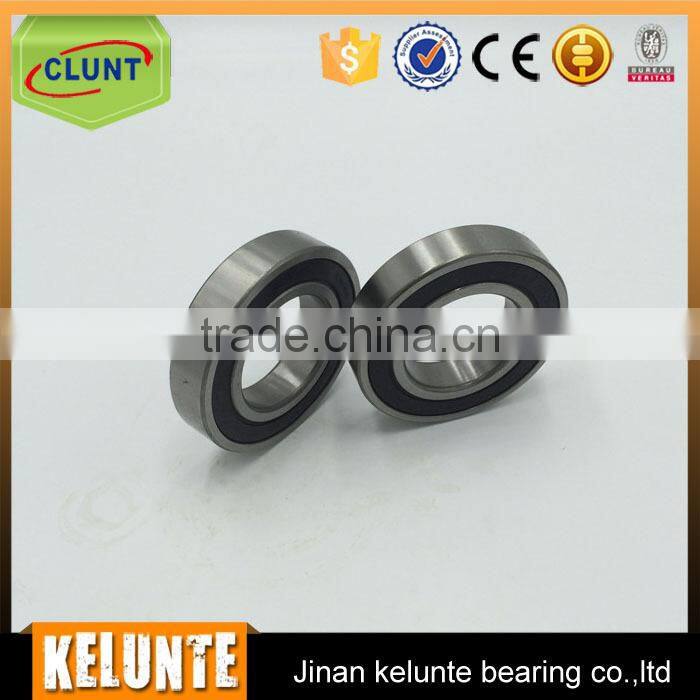

Deep Groove Ball Bearing 6209 6209 z 6209 zz 6209 rs 6209 2rs , Size 45X85X19 mm
- Shenzhen
- T/T Credit Card
You May Like
-
Deep Groove Ball Bearing 6200 Z 6200 ZZ 6200 RS 6200 2RS , Sliding Windows Used , Assessed China Supplier
-
Nylon Ball Bearing Wheel Ball Bearing 6000 China Produce
-
China Manufacturer Forklift Mast Roller Bearing
-
631 Series Ball Bearings 631 Stainless Steel 631 zz rs
-
5x16x5mm Deep Groove Ball Bearing 625 Miniature Bearing 625zz
-
China Manufacturer Spinning Machinery Rotor Complete Rotor Bearing
Product Details
| Brand Name | CLUNT | Place of Origin | Shandong, China | |
| Model Number | 6209 RS, 6209 RS | Number of Row | Single Row | |
| Seals Type | ZZ RS OPEN, OPEN ZZ RS | Precision Rating | P0 P2 P4 P5 P6 | |
| Outside Diameter | 84.99, 85 | Bore Size | 44.99, 45 |
Product Description
Deep groove ball bearing 6209 6209 z 6209 zz 6209 rs 6209 2rs , size 45X85X19 mm
Brand: | CLUNT |
Model: | 6209 ball bearing |
Sizes: | 45*85*19mm |
Weight: | 0.404KG |
Material : | Gcr15/Gcr11/stainless steel |
FOB Price: | USD $0.1-1,00/ Set |
Minimum Order Quantity: | 10Set/Sets |
Payment Terms: | L/C,T/T ,Western Union |
Delivery Time: | 3 to 45days after order confirmed(depend on the total amount) |
Supply Ability: | 50000sets per month |
Port: | Qingdao Shanghai Ningbo Yiwu Guangzhou China |
Packaging: | 1.Industry package: Plastic paper+Kraft paper,10pcs or 5pcs/roll 2.Plastic tube: 10pcs/tube or 5pcs/tube 3.Single box: plastic bag+single box, OEM supply 4.Single wooden box: plastic bag+single wooden box 5.Carton: or as your need. 6.Pallet: Wooden |
Application of inch taper roller bearing | Home appliances,low noise and high speed electric motors,automotive components, pumps, machinery. |

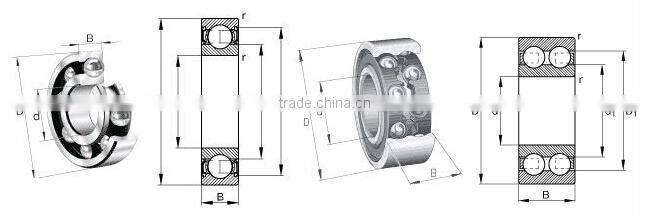

Model number
6200 SERIES BALL BEARINGS | LIGHT | |||||||||||||
NPB | Bore | Outside Diameter | Width | Max. | Balls | Static | Dynamic | ||||||
Frac. | Inch | Tol. | Frac. | Inch | Tol. | Tol. | +.0000 | No. | Diam. | ||||
Open | Seal/Shield | ||||||||||||
10 | .3937 | -.0003 | 30 | 1.1811 | -.0004 | 9 | .3543 | .025 | 8 | 3/16 | 500 | 885 | |
12 | .4724 | -.0003 | 32 | 1.2598 | -.0005 | 10 | .3937 | .025 | 7 | 7/32 | 595 | 1055 | |
15 | .5906 | -.0003 | 35 | 1.3780 | -.0005 | 11 | .4331 | .025 | 8 | 7/32 | 675 | 1180 | |
17 | .6693 | -.0003 | 40 | 1.5748 | -.0005 | 12 | .4724 | .025 | 8 | 1/4 | 890 | 1500 | |
20 | .7874 | -.0004 | 47 | 1.8504 | -.0005 | 14 | .5512 | .040 | 8 | 5/16 | 1390 | 2220 | |
25 | .9843 | -.0004 | 52 | 2.0472 | -.0005 | 15 | .5906 | .040 | 9 | 5/16 | 1565 | 2415 | |
30 | 1.1811 | -.0004 | 62 | 2.4409 | -.0005 | 16 | .6299 | .040 | 9 | 3/8 | 2255 | 3360 | |
35 | 1.3780 | -.0005 | 72 | 2.8346 | -.0005 | 17 | .6693 | .040 | 9 | 7/16 | 3070 | 4430 | |
40 | 1.5748 | -.0005 | 80 | 3.1496 | -.0005 | 18 | .7087 | .040 | 9 | 15/32 | 3520 | 5035 | |
45 | 1.7717 | -.0005 | 85 | 3.3465 | -.0005 | 19 | .7480 | .040 | 9 | 1/2 | 4005 | 5655 | |
50 | 1.9685 | -.0005 | 90 | 3.5433 | -.0006 | 20 | .7874 | .040 | 10 | 1/2 | 4450 | 6065 | |
55 | 2.1654 | -.0006 | 100 | 3.9370 | -.0006 | 21 | .8268 | .060 | 10 | 9/16 | 5630 | 7500 | |
60 | 2.3622 | -.0006 | 110 | 4.3307 | -.0006 | 22 | .8661 | .060 | 10 | 5/8 | 6955 | 9065 | |
65 | 2.5591 | -.0006 | 120 | 4.7244 | -.0006 | 23 | .9055 | .060 | 10 | 21/32 | 7665 | 9900 | |
70 | 2.7559 | -.0006 | 125 | 4.9213 | -.0008 | 24 | .9449 | .060 | 10 | 11/16 | 8415 | 10715 | |
Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings. Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing . and our brands:CLUNT.
