Roller Shutter Bearing Ball Bearing 6010 2Z/C3 Bearing
- Qingdao
- T/T Credit Card
You May Like
-
China Factory Supply Bearing 6206 C3 6206 2RS Radial Ball Bearing
-
Large Ball Bearing 6226 Bearing Generator Bearing
-
Deep Groove Ball Bearing 6211 6211 Z 6211 ZZ 6211 RS 6211 2RS 55X100X21 mm Motor Bearing 6211
-
Stainless Steel Bearing 12x26x8 Ball Stainless Bearing 12x26x8mm
-
All Types of Bearings Ball Bearing Sizes 6203 Deep Groove Ball Bearings 6203 2RS 17*62*17mm
-
Shielded Ball Bearings 6212 zz Deep Groove Ball Bearings 6212-zz
Product Details
| Brand Name | CLUNT OR OEM | Place of Origin | Shandong, China | |
| Model Number | 6010 2Z/C3 | |||
| Seals Type | Open,ZZ,2RS | Precision Rating | P0,P6,P5,P4,P2 | |
| Outside Diameter | 79.99, 80 | Bore Size | 49.99, 50 |
Product Description

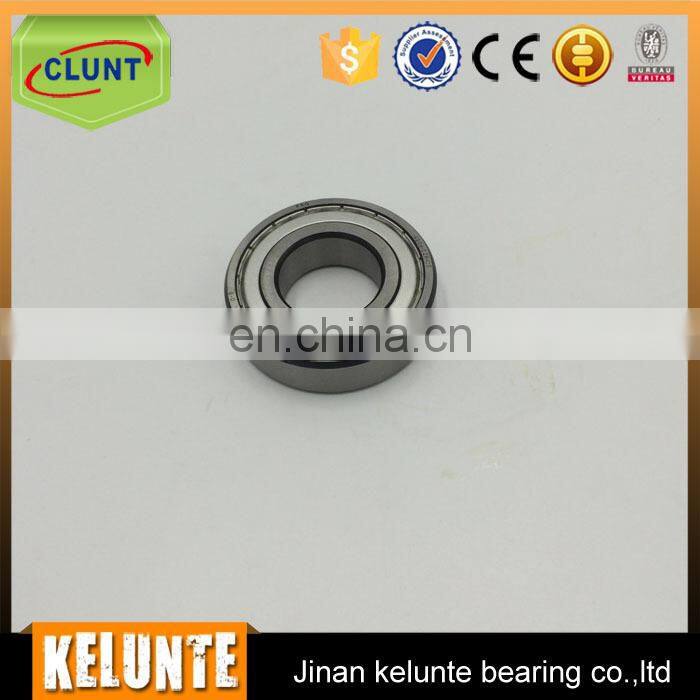

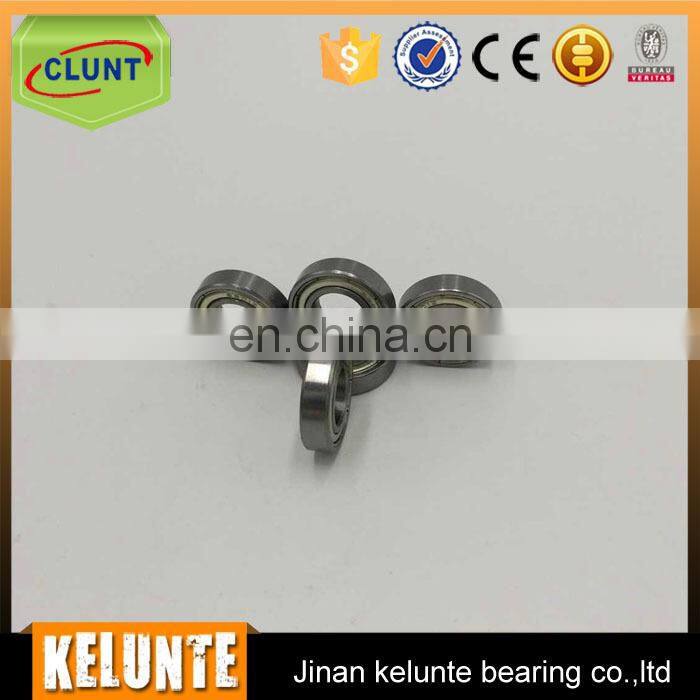

Roller Shutter Bearing Ball Bearing 6010 2Z/C3 Bearing
Specification of bearing 6010:
Ball Bearing 6010 :
| Ball Bearing Type | Deep Groove | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Dynamic Load Rating | 22.9kN | |
| End Type | Shielded | |
| Inside Diameter | 50mm | |
| Limiting Speed | 9000rpm | |
| Number of Rows | 1 | |
| Outside Diameter | 80mm | |
| Race Type | Plain | |
| Race Width | 16mm | |
| Reference Speed | 18000rpm | |
| Static Load Rating | 16kN |
Bore Size(mm):50
Outside Diameter(mm):80
Width(mm):16
Weight(kg):0.25
1, Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway, the bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings.
2, Deep groove ball bearing have various types in structure, beside open type bearings, shield or seals at both side can also be provided.
| Brand | CLUNT | CLUNT | CLUNT |
| Model | 6010 | 6010 ZZ | 6010 2RS |
| Type | Open Type | ZZ Seal | Ruber Seal |
| ID(mm) | 50 | 50 | 50 |
| OD(mm) | 80 | 80 | 80 |
| Thickness(mm) | 16 | 16 | 16 |
| Advantage | High quality, long service life, competitive price | ||
ball bearing 6010
| Product performance | |
|---|---|
| Dynamic load, C | 2,150 daN |
| Static load, C0 | 1,630 daN |
| Fatigue limit load, Cu | 74 daN |
| f0 | 15.4 |
| Nref | 8,900 rpm |
| Nlim | 11,000 rpm |
| Min operating temperature, Tmin | -20 °C |
| Max operating temperature, Tmax | 120 °C |
| Characteristic cage frequency, FTF | 0.43 Hz |
| Characteristic rolling element frequency, BSF | 7.08 Hz |
| Characteristic outer ring frequency, BPF0 | 5.6 Hz |
| Characteristic inner ring frequency, BPFI | 7.4 Hz |
High precision all size Deep groove ball bearings | |
Brand Name | QF or famous brand or according to your requirement |
Clearance | C2 C0 C3 C4 C5 |
Tolerance | ABEC1(P0) ABEC3(P6) ABEC5(P5) ABEC7(P4) ABEC9(P2) |
Vibration | Z1V1 Z2V2 Z3V3 Z4V4 |
Material | carbon steel, chrome, stainless steel, plastic, ceramic |
Sample Date | 3-5 days |
Delivery Detail | 2-15 days after contract |
Shipping | Express: DHL/EMS/By Sea |
Advantage | 1).Excellent and high quality control 2).Prompt delivery 3).Competitive price 4).Small order accepted 5).Customers' drawing or samples accepted 6).OEM service |
Payment Term: | A: 30% T/T In Advance, 70% T/T Against Copy Of B/L |
B: 100% L/C At Sight | |
Packing: | Industrial package or according to buyers requirement |
al
l bearing 6010
