Home > Products > Adapter sleeves > H216 Adaptor Sleeve With Lock Nut and Locking Device for 70mm Shaft

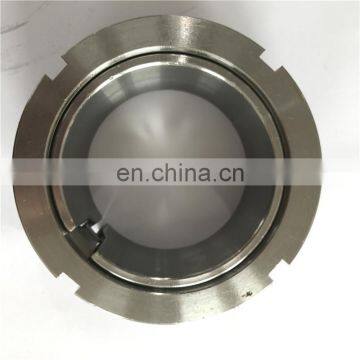

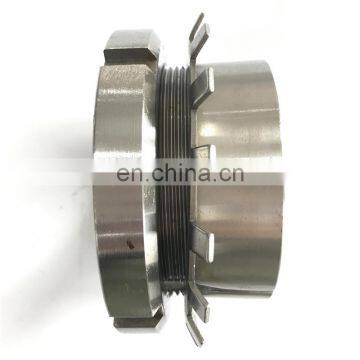

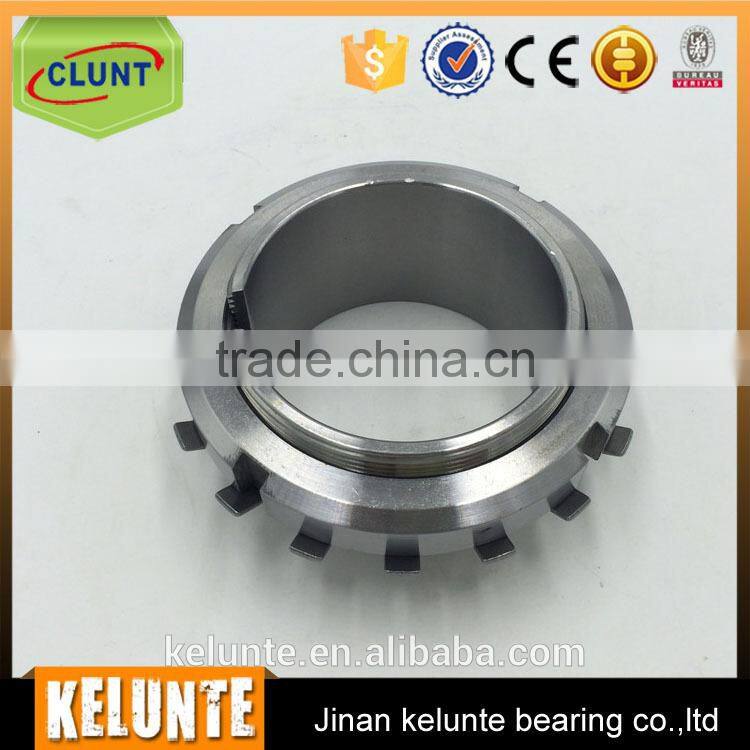

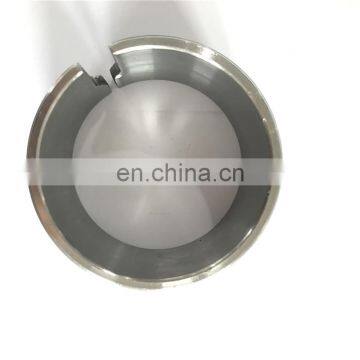

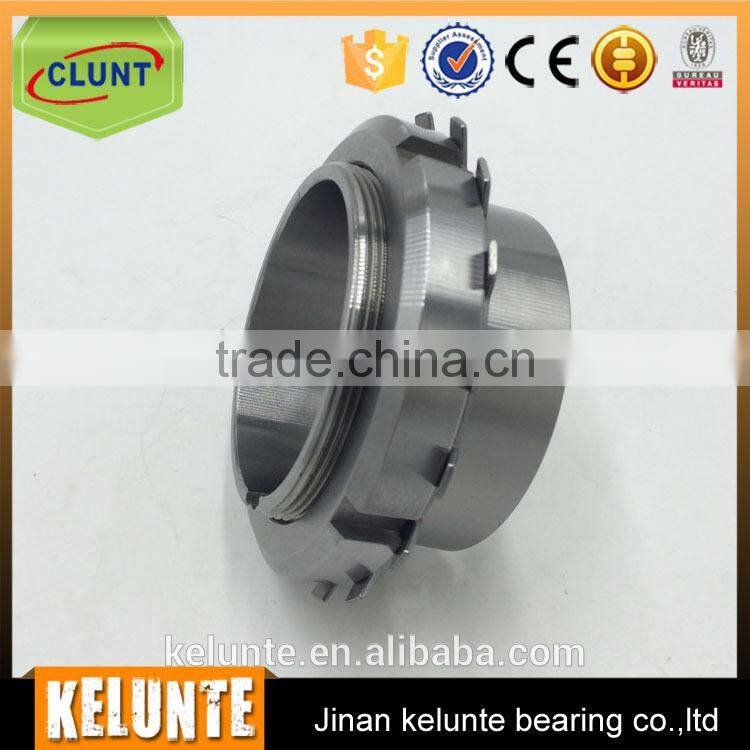

H216 Adaptor Sleeve With Lock Nut and Locking Device for 70mm Shaft
- Qingdao Guangzhou Shenshen Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | CLUNT | Place of Origin | Shandong, China | |
| Model Number | H216 Adaptor Sleeve |
Product Description
Adapter sleeves:
Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain or stepped shafts . They are easy to install and require no additional location on the shaft. When adapter sleeves are used on plain shafts, the bearing can be located at any position on the shaft. When used on stepped shafts together with an L-shaped spacer ring, bearings can be accurately positioned axially thereby facilitating bearing mounting and dismounting.
Some items of adapter sleeve bearings we can offer:
| Dimensions | ||||||
| Shaft Size (mm) d1 | Inner Diameter (mm) d | Overall Diameter (mm) d3 | Overall Length (mm) B1 | Width of Locknut and Washer (mm) B2 | Thread Size G | Manu. part no |
| 40 | 45 | 65 | 39 | 11 | M45 x 1.5 mm | H309 |
| 45 | 50 | 70 | 42 | 12 | M50 x 1.5 mm | H310 |
| 50 | 55 | 75 | 45 | 12.5 | M55 x 2 mm | H311 |
| 55 | 60 | 80 | 47 | 12.5 | M60 x 2 mm | H312 |
| 60 | 65 | 85 | 50 | 13.5 | M65 x 2 mm | H313 |
| 65 | 75 | 98 | 55 | 14.5 | M75 x 2 mm | H315 |
| 70 | 80 | 105 | 59 | 17 | M80 x 2 mm | H316 |
| 75 | 85 | 110 | 63 | 18 | M85 x 2 mm | H317 |
| 80 | 90 | 120 | 65 | 18 | M90 x 2 mm | H318 |
| 85 | 95 | 125 | 68 | 19 | M95 x 2 mm | H319 |
| 90 | 100 | 130 | 71 | 20 | M100 x 2 mm | H320 |
For more models, please send us inquiry freely!
Jinan Kelunte Bearing Co., Ltd. is a professional bearing manufacturer and is engaged in the imported bearings. Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing,Ceramic Bearing,cylindrical roller bearing, spherical roller bearing . and our brands:CLUNT.
