China Cnc Router Linear Bearing LM40UU
- Shenzhen
- T/T Credit Card
You May Like
-
SK8 Linear Rail Bearing Support Housing Linear Bearing Shaft 8mm
-
LM30UU Linear Motion Ball Bearings 30x45x64 mm LM30 Linear Bearing
-
Linear Motion Bearing LM6UU Ball Bushing 6mm Shaft Linear Bearing
-
LM8LUU Linear Resin Retainer Ball Bushings Bearings
-
The China Manufacture Bearing LB8A Linear Ball Bearing for Technogym Fitness Equipment
-
Original Linear Bearing LM6UU LM8SUU LM8UU for Submariner Watch
Product Details
| Brand Name | CLUNT | Place of Origin | Shandong, China | |
| Model Number | KH2030 | Precision Rating | ABEC 1 3 5 7 9 |
Product Description

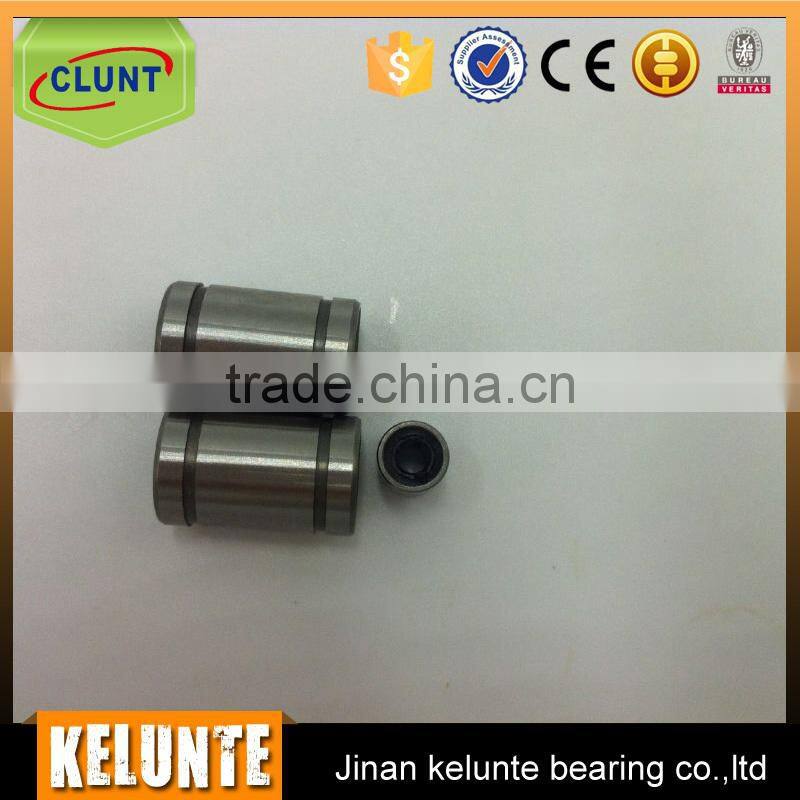

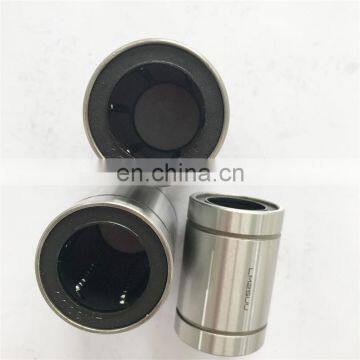

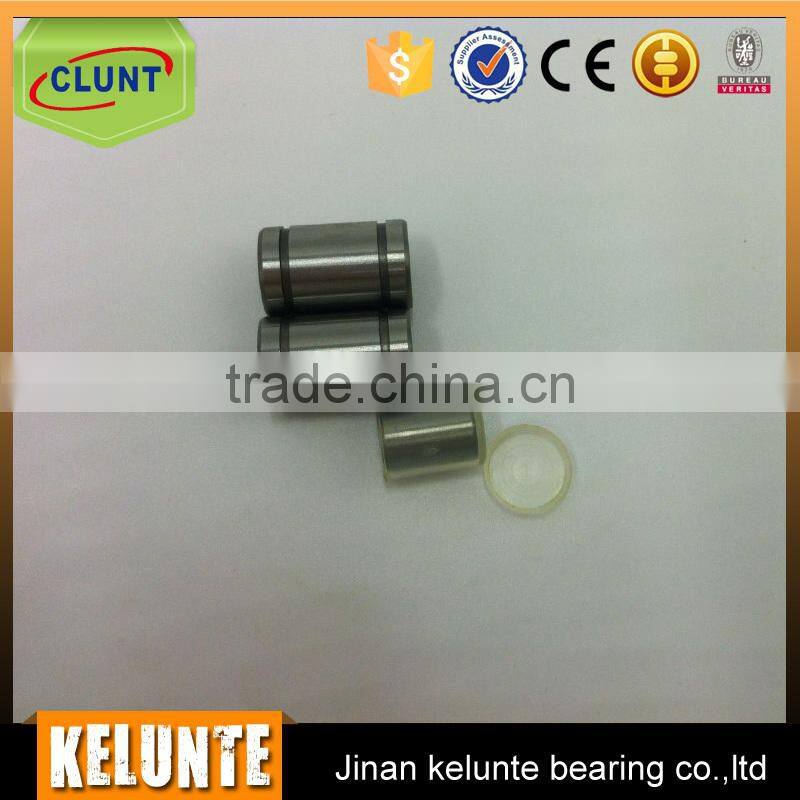

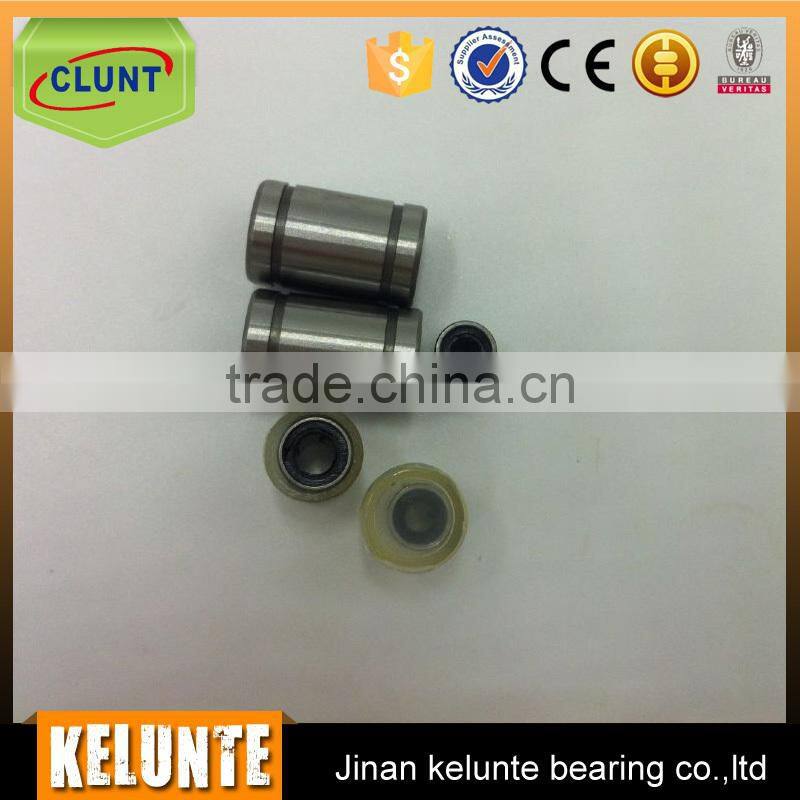

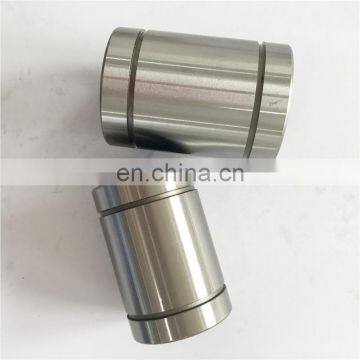

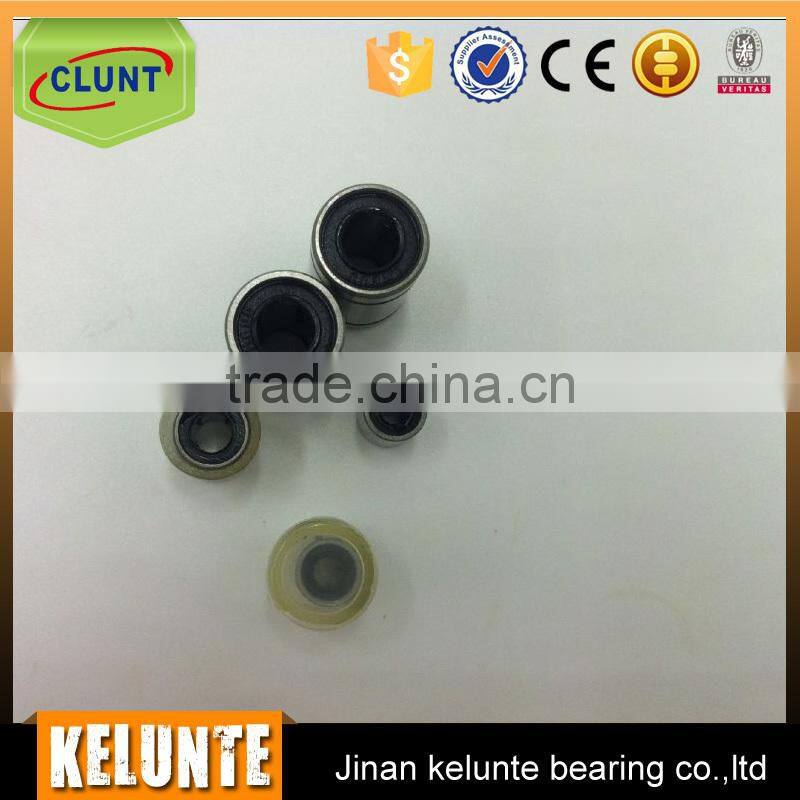

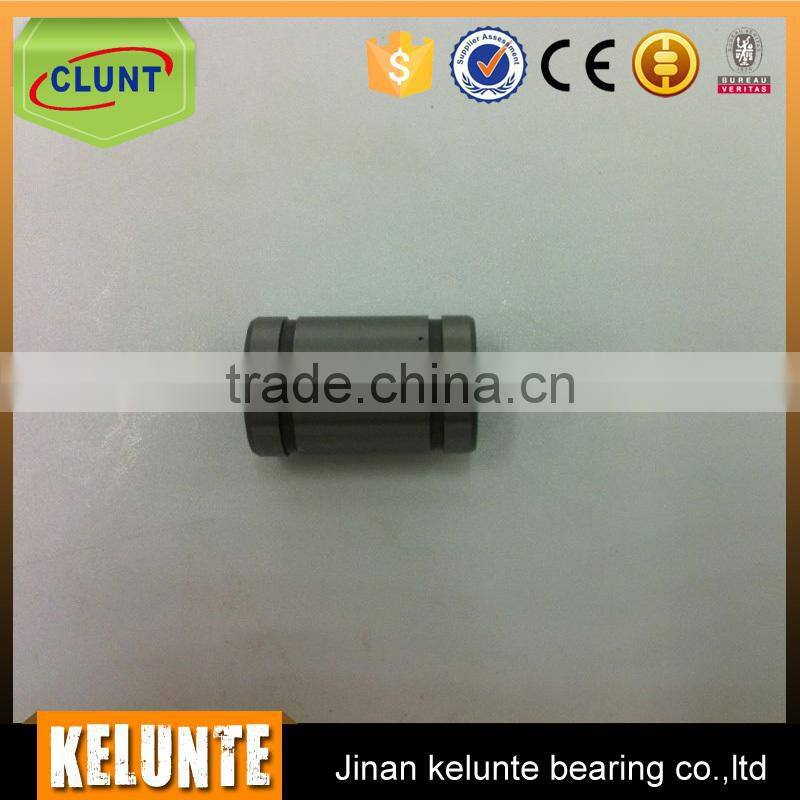

China cnc router linear bearing LM40UU
Descriptions of bearing LM40UU
Linear plain bearings are linear locating bearings for unlimited stroke lengths. These linear guidance systems are available as a miniature plain guidance system, linear plain bearings and linear plain bearing units as well as a flat guidance system
Linear block is divied to flange type and slim type without flange. Also, linear block is divided to high load capacity with standard block lenth and ultra high load capacity with longer block length.
"UU" means rubber seals on the both sides of the long type bearing
"LM" means metric standard type
"LME" means inch standard type
"OP" means open type
"AJ" means adjustment type*LM...UU: LM...(sylinder), LM...OP(open type), LM...AJ(clearance adustable)
*LME...UU: LME...(sylinder), LME...OP(open type), LME...AJ(clearance adustable), LM...UU & LME...UU: Long type
*KH: High-precision mini bearing
| Description | A linear-motion bearing is a kind of bearing that aims at offering free motion in one dimension. The structure of the liner motion bearing is that a retainer is built in the outer ring. And the retainer is equipped with many steel balls doing infinite circulatory movement. Besides, the two ends of the retainer are fixed with the spring collar. There is a side window in the straight track. This section is allowing the loaded balls and the axis to do the rolling contact. These products can move relatively under a very low coefficient of friction. Therefore, the linear motion bearings are appropriate for many mechanical equipments, automation equipments, and energy-saving equipments, etc. | ||||||||||||
| Use | Like many other kinds of bearing products, linear motion bearings have a quite wide range of application. At present, they are more widely used in the electronics, machinery, equipment, robots, tools, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machine tools, automobiles and many other mechanical industries. | ||||||||||||
| Category | There are various kinds of linear motion bearing. Generally, it can be divided into rolling-element bearings and plane bearings. The former has the characteristics of smooth motion, low friction, high rigidity and long life. It is quite easy to maintain and replace these products. The latter category is very similar in design with the rolling-element bearings. They can perform on hardened steel or stainless steel raceways. | ||||||||||||
| Feature | 1.Full range of profile sizes – miniature (3, 5, 7, 9, 12, and 15mm) and standard (15, 20, 25, and 30mm) | ||||||||||||
| Advantage | There are many advantages of using linear motion ball bearing. Firstly, the mobile access can make the starting friction resistance and dynamic friction resistance become extremely small. Thus, this can help to save energy and make easier to get a higher velocity. Secondly, it changes little under the increasing of loads. Besides, it is not sensitive to friction coefficient changes. Therefore, the friction coefficient is extremely small under the heavy load. Except for this, it can maintain the long-term accuracy which can lead to the longer life of the machines. Thirdly, the liner motion bearings have quite good interchangeability. It is easy to be installed. Besides, it makes the mechanical structures small and light. Fourthly, it can simplify the process of lubrication and maintenance. | ||||||||||||
Specifications of bearing LM40UU
| Bearing number | LM40UU | |
|---|---|---|
| brand | CLUNT | |
| balls | 6 | |
| (dr) | 40 mm | |
| details | D | 60 mm |
| L | 80 mm | |
| L1 | 60.5 mm | |
| L2 | 2.1 mm | |
| D0 | 57 mm | |
| basic load rating | Cr | 2150 N |
| Cor | 4010 N | |
| mass | 585 g | |
| Radial clearance tolerance | -13 um | |
Characteristic of bearing LM40UU
*The ball are circulate endlessly
*Strong in design
*Against high temperature
*High quality&good price
*Support heavy loads.
Application of bearing LM40UU
Linear bearings are widely used in electronic equipment, tensile testing machine
and the digital three-dimensional coordinate measuring equipment, precision equipment,
and multi axis machine tools, presses, tool grinder, automatic gas cutting machine,
printer, card sorting machine, food packing machines and other industrial machinery sliding components
LM linear bearing:
LM3UU, LM4UU, LM5UU, LM6UU, LM8UU, LM8S, LM10UU, LM12UU, LM13UU,
LM16UU, LM20UU, LM25UU, LM30UU, LM35UU, LM40UU, LM50UU, LM60UU,
LM80UU, LM100UU
LM Open Series linear bearing:
LM10OPUU, LM12OPUU, LM13OPUU, LM16OPUU, LM20OPUU, LM25OPUU,
LM3OOPU, LM35OPUU, LM40OPUU, LM50OPUU, LM60OPUU, LM80OPUU, LM100OPUU
LB linear bearing
LB6UU, LM8UU, LB10UU, LB12UU, LB13UU, LB16UU, LB20UU, LB25UU,
LB3OUU, LB35UU, LB40UU, LB50UU, LB60UU, LB80UU, LB100UU
KH type linear bearing:
KH0622PP, KH0824PP, KH1026PP, KH1228PP, KH1630PP, KH2030PP,
KH2540PP, KH3050PP, KH4060PP, KH5070PP
Steel Cage Linear Bearing:
LM12GA, LM16GA, LM20GA, LM25GA, LM30GA
LM12M, LM16M, LM20M, LM25M, LM30M
SDM series Steel cage linear bearing(As same as Ease SDM series):
SDM16, SDM20, SDM25, SDM30, SDM35, SDM40, SDM50, SDM60, SDM80, SDM100, SDM120,
SDM150
Flange type linear bearing:
LMF6UU, LMF8UU, LMF10UU, LMF12UU, LMF13UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU,
LMF35UU, LMF40UU, LMF50UU, LMF60UU, LMF80UU, LMF100UU
LMK6UU, LMK8UU, LMK10UU, LMK12UU, LMK13UU, LMK16UU, LMK20UU, LMK25UU, LMK30UU,
LMK35UU, LMK40UU, LMK50UU, LMK60UU, LMK80UU, LMK100UU
LMT6UU, LMT8UU, LMT10UU, LMT12UU, LMT13UU, LMT16UU, LMT20UU, LMT25UU, LMT30UU.
