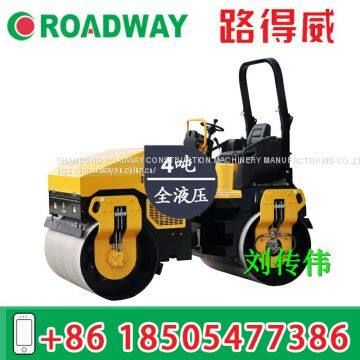

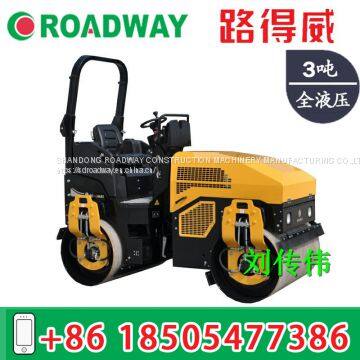

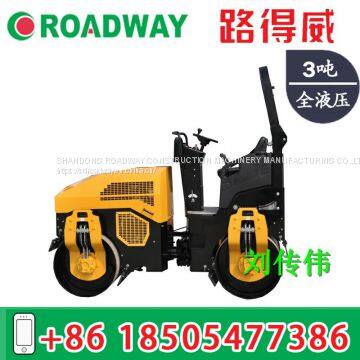

Ride-on Hydraulic Vibratory Roller RWYL61

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ROADWAY	Place of Origin	China
Model Number	RWYL61	Type	Double Drum Roller
After-sales Service Provided	Engineers available to service machinery overseas	Weight	2900kg
Dimension(LWH)	2800 × 1450 × 2100mm	Condition	New
Power(W)	26.9KW / 3000rpm	Grade Ability	40%
Travel Speed	0-12km / h	Static Linear Pressure	125/115 N / cm

VIDEO:/lnBjjKmloo-iqiiKBljlmSRnikqrroijniior-b885735062994c03ac373aed152e69b7

Technical Parameters

Run		Fuel tank volume	40L
Speed	0-12km / h	Lubricant L	6L
Turning radius	2600mm	Fuel consumption	263g / kWh
Climing capacity in theory	40%	Dimension
Compaction		Wisth of steering drum	1200mm
Static load forward/back	125/115 N / cm	Diameter of steering drum	700mm
Nominal amplitude	0.5mm	Tread	1760mm
Vibration frequency	60Hz	Total length	2495mm
Exciting force	30kN (front drum)	Total width	1310mm
Water tank volume	200L	Total height	2440mm
Engine		Packing size	2800 × 1450 × 2100mm
Model	Yanmar	Weight
Type	Diesel engine, water-cooled four-stroke, three-cylinder	Working weight	2900kg
Power	26.9KW / 3000rpm
