Home > Products > Solenoid valve > High Quality Waterproof Coil 2W Series Submersible Solenoid Valve

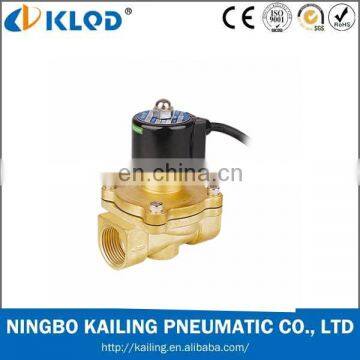

High Quality Waterproof Coil 2W Series Submersible Solenoid Valve
- 100000 Set / Sets per Month
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
VX22 Series Direct Acing Fuel Cut-Off Solenoid Valve
-
Stainless Steel 2WB Series Electrovanne Solenoid Valve
-
KL6014 Series Direct Acting Solenoid Valve 3/2 Way
-
KLQD Brand VX2130 Series Automatic Water Valve
-
Solenoid Valve Water Gas Air Stainless Steel Valve Parts
-
KLQD brand 3/4 inch 12V 24V DC direct acting hot water latching solenoid valve air ZBV model
Product Details
| Brand Name | KLQD | Place of Origin | Zhejiang, China | |
| Model Number | 2W250-25A | Material | Brass | |
| Application | General | Structure | Control | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Power | Solenoid | Port Size | 1" | |
| Media | Water | Temperature of Media | Medium Temperature |
Product Description
High Quality Waterproof Coil 2W Series Submersible Solenoid Valve
Submersible Solenoid valve
Model | 2W250-25A |
Working Medium | Air,Water,Oil,Gas |
Motion Pattern | Direct Drive Type |
Type | Normal Close Type |
Aperture of Flow Rate | 25 |
CV Value | 12 |
Joint Pipe Bore | 1" |
Operation Fluid Viscosity | 20CST Below |
Working-pressure | Air:0~0.7Mpa; Water,Oil:0~0.5Mpa |
Max Pressure Resistance | 1.0MPa |
Operating Temperture | -5~80°C |
Voltage Range | -10%~+10% |
Material of Body | Brass |
Material of Oil Seal | NBR,EPDM or VITON |
Specification
TYPE | 2W-025-06 | 2W-025-08 | 2W-040-08 | 2W-040-10 | 2W-160-10 | 2W-160-15 | 2W-200-20 | 2W-250-25 | 2W-350-35 | 2W-400-40 | 2W-500-50 |
THEAD G | 1/8" 1/4" | 1/8" 1/4" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" |
Aperture of flow rate mm | 2.5 | 2.5 | 4 | 4 | 16 | 16 | 20 | 25 | 35 | 40 | 50 |
Motion Pattern | direct dirve |
|
|
|
|
|
|
|
|
|
|
Cv | 0.23 | 0.23 | 0.6 | 0.6 | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
length mm | 40.5 | 40.5 | 40.5 | 52.5 | 69 | 69 | 73 | 99 | 115 | 120 | 154 |
height mm | 75 | 75 | 75 | 90 | 117 | 117 | 123.5 | 134.5 | 154 | 162 | 185 |
1. Is Sample Order Acceptable?
Yes,It Is Ok.
2.How to Place the Order?
You Can Send us Email or Inquiry At Alibaba Directly.
3.How Many Days for Delivery?
We have Stock for Standard Products.
4.How to Make the Payment?
We Accept BankT/T ,Western Union,Paypal or L/C.
5.How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air
C.Express Service
