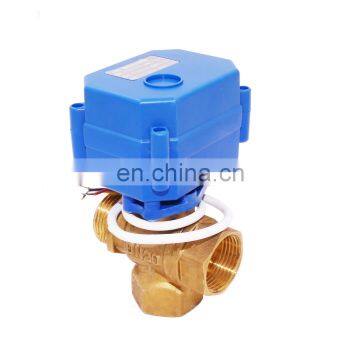

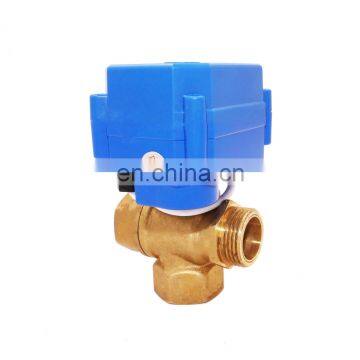

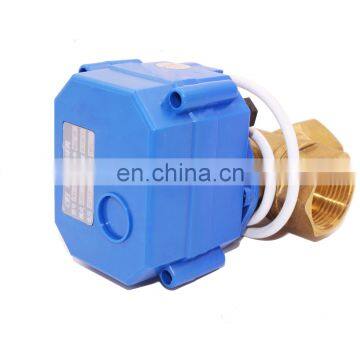

TF CWX-15Q 3-way Mini Control Motorised Ball Valve for Water Treatment,HAVC,automatic Control,water Filter
- T/T Credit Card
You May Like
-

                        TF CWX-15Q Mini Brass Electric Ball Valve DN15/DN20 for Water Treatment,IC Card Meters
-

                        Brass CWX-15Q/N DN15 1/2" Motorised Ball Valve 3ways
-

                        BSP NPT 5v 12v 24v Dn8 Dn10 Dn15 Dn20 Cwx15n Electric Automatic Water Shut off Valve for Irrigation
-

                        DC3-6V DC12V DN15 3-way Electric T-flow Valve for Mixing-flow Equipment
-

                        Brass DN15 1/2" CWX-15Q 3S Mini Electrovanne 12v Valve
-

                        Cwx-15n Dn15 Dn20 DC3.6V-DC24V Ss304 Stainless Steel Electric Battery Operated Water Valve
Product Details
| Brand Name | TF | Place of Origin | Tianjin, China | |
| Model Number | CWX-15 | Material | Brass | |
| Application | General | Structure | Ball | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Port Size | 1/2''-1'' | |||
| Media | Water | Temperature of Media | Normal Temperature |
Product Description
TF CWX-15Q 3-way Mini control motorised ball valve for water treatment,HAVC,automatic control,water filter
1,Metal gearbox and POM gear design, low noise, perform reliably .
2,Long service life: more than 100000 circles.
3,Electric limit and machinery limit design, located accurately, avoid gear run continuously.
4,Mufti-angle assembling, easy to install.
5,Float ball structure, no leakage,especially suitable for heavy pollution conditions.
1.Heat energy meters, fire work, save water system.
2.Auto control system, industrial mini auto control equipment.
3.Water saving equipment, drinking water equipment.
4.Air-conditioning fan coin(HVAC).
| Product Model | Rated Voltage | Working current | Output torque | Open/close time | Size |
| CWX-15Q | DC3-6V DC12V AC/DC9-24V AC220V AC85-265V | Max100mA (CR04 except Max150mA) | Max1.5NM | <3s | DN8-DN20 |
| CWX-15N | Max2.0NM | <5s | DN8-DN32 | ||
| Working pressure | Power | Medium temperature | Control mode | IP Grade | Special function |
| Max1.0Mpa | <3W | 0-90℃ | CR01 CR02 CR02+ CR03 CR03A CR04 CR05 | IP65 | CR01 CR02 CR03 CR04(with singal feedback) |
| Brass
 | Connection | Sizes | d | H | L |
| Both female thread Full-port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
| Vertical Three-way | DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
| Female-male thread | DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| DN32 | 20 | 76 | 50 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional
R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed the
ISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regions worldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing, we are confident in providing you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.


1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
