12 AWG Solar Panel Wind System Outdoor 1Wire DC Solar Cable 4mm2 PV Solar Cable 1x4mm2
- T/T Credit Card
You May Like
-
TUV Approved UV Resistance XLPE Double Insulated 2x4mm2 DC 2 Core Power Wire Cable Solar 1500V PV Cable
-
TUV Approved UV Resistance XLPE Double Insulation 4mm Solar Cable for PV Energy System
-
TUV Approved XLPE Double Insolation PV System 4mm2 Single Core Solar Wire Solar Cable
-
AWG 10 Solar Cable 6mm2 With TUV
-
TUV 2.5mm 4mm 6mm 10mm Solar Cell Cable
-
TUV Certificated AWG 10 Solar Wire 6mm2 for Solar Energy System
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | 1x4.0mm2 solar cable | Type | High Voltage | |
| Insulation Material | XLPE | |||
| Conductor Material | Copper |
Product Description

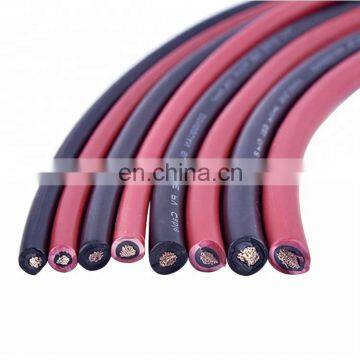

12AWG Solar Panel Wind System Outdoor 1Wire DC Solar Cable 4mm2 PV Solar cable 1x4mm2
Advantage:
·Dual wall insulation.Electron beam cross-linked
·Excellent resistance to U.V,oil,greases,oxygen and ozone
·Excellent resistance to abrasion
·Halogen free, flame retardant,low toxicity
·Excellent flexibility and stripping performance
·High Voltage and Current carring capacity
·TUV approved
Description:
| Copper wire : 99.7% copper, tinned | UV resistance |
| Insulation material : XLPE(XLPO) | High voltage and High current |
| Double walls insulated | Temperature range : -40℃~90℃ |
| Halogen-free material | Color : Black / Red / Blue |
|
Flame test according to : DIN EN 50265-2-1 / UL 1571(VW-1) |
Smallest permisssible bending radius : 5xD |
Technical Data of single core:
| Size | Cross Section |
Conductor Structure |
Outer Diameter |
Max. DC Resistance at 20℃ |
Rated Voltage |
Rated Current |
| mm2 | mm | mm | Ω/km | V | A | |
| 1x2.5mm2 | 2.5mm2 | 49xΦ0.25 | 5.1 | 8.06 | 1000/1500 | 30 |
| 1x4.0mm2 | 4.0mm2 | 56xΦ0.285 | 6.1 | 4.97 | 1000/1500 | 50 |
| 1x6.0mm2 | 6.0mm2 | 78xΦ0.3 | 6.4 | 3.52 | 1000/1500 | 70 |
| 1x10mm2 | 10mm2 | 74xΦ0.4 | 7.3 | 2.12 | 1000/1500 | 95 |
Technical Data of double core:
| Size | Cross Section |
Conductor Structure |
Outer Diameter |
Max. DC Resistance at 20℃ |
Rated Voltage |
Rated Current |
| mm2 | mm | mm | Ω/km | V | A | |
| 2x2.5mm2 | 2.5mm2 | 49xΦ0.25 | 5.1x10.9 | 8.06 | 1000/1500 | 30 |
| 2x4.0mm2 | 4.0mm2 | 56xΦ0.285 | 6.1x12.3 | 4.97 | 1000/1500 | 50 |
| 2x6.0mm2 | 6.0mm2 | 78xΦ0.3 | 6.4x12.9 | 3.52 | 1000/1500 | 70 |

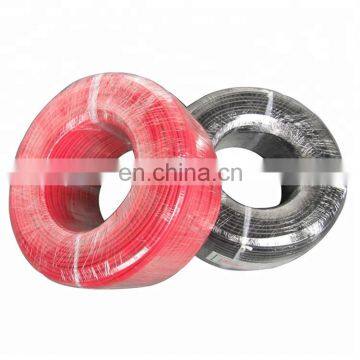

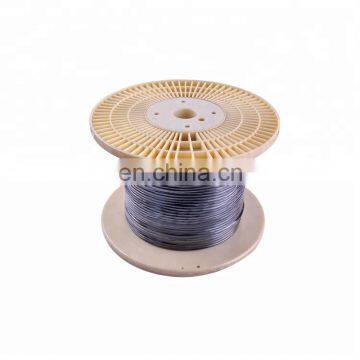

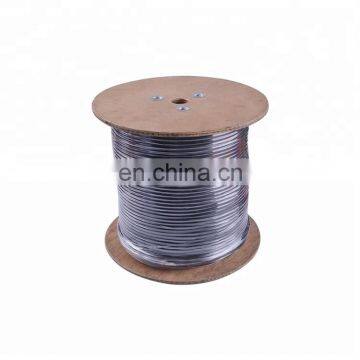

Pictures:

Our Projects :
If any inquiry, feel free to let me know !
FAQ
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables,PV Solar Connectors, PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 12 years experience.
Q2: How can I get the Quotation of the products ?
Send your Message to us by E-mail / TradeManager,We'll reply you within 2 hours in the Working Time.
Q3: How does your company do regarding Quality Control?
1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
If any inquiry, feel free to let me know !
