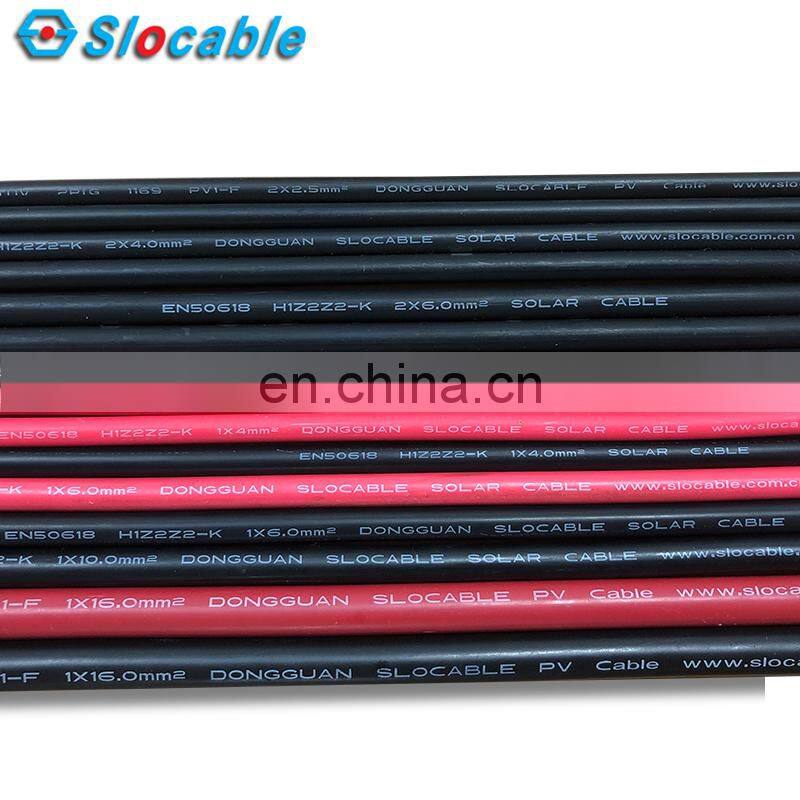

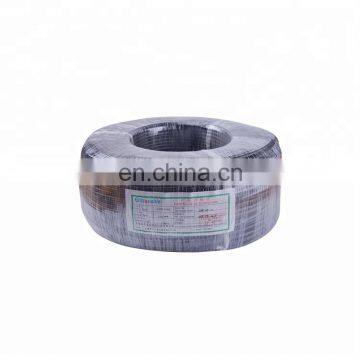

Slocable 1500V High Quality Halogen-free and UV Resistant 4.0mm2 Solar Cable Made in China

TYPE

Cross Section

Wire Struct

Conductor Diameter

Outer Diameter

Conductor Resistance

Rated

Voltage

Rated Current

mm²

No.OD (mm)

mm

mm

Ω/Km

V DC

A

1X2.5mm²

2.5

48XΦ0.25

2.0

5.2

8.06

1000/1500V

30

1X4.0mm²

4.0

56XΦ0.30

2.6

6.2

4.97

1000/1500V

50

1X6.0mm²

6.0

81XΦ0.30

3.3

7.2

3.52

1000/1500V

70

1X10mm²

10

74XΦ0.40

4.4

8.3

2.12

1000/1500V

95

2X2.5mm²

2.5

48XΦ0.25

2.0

6.2*9.90

8.06

1000/1500V

30

2X4.0mm²

4.0

56XΦ0.30

2.6

6.9*11.30

4.97

1000/1500V

50

2X6.0mm²

6.0

81XΦ0.30

3.3

7.1*14.50

3.52

1000/1500V

70

Certificate

Conductor Material

Class5, tinned copper

Insulation Material

XLPE

Rated Voltage

1000V / 1500V DC

Range of Nominal Cross Section

2.5--10mm²

Standard of Solar Cable

TUV 2PfG 1169/IEC

Temperature Range

-40℃~+90°C

Flame Test Standard

DIN EN50265-2-1 UL 1571(VW-1).

Smallest Permissible Bending Radius

5XD

Color of Solar Cable

Black/Red

Packing of Solar Cable

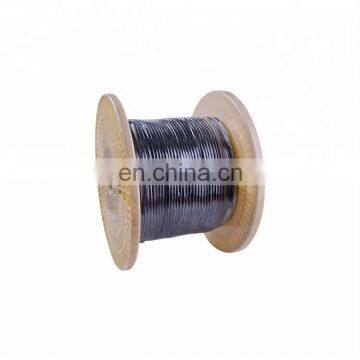

250 meter/roll for small size, wooden drum for big size, or as per requirement

Delivery Time

According to the order (3-10 working days)

Application of Solar Cable

These cables are used for solar power plant,

solar energy power station.

Types

Roll

N.W

Carton measure

Package

G.W.

2.5mm²

250m/roll

12.5kg

360*360*320mm

2 rolls/carton

26kg

4.0mm²

250m/roll

17kg

360*360*320mm

2 rolls/carton

35kg

6.0mm²

100m/roll

20kg

300*300*320mm

2 rolls/carton

41kg
