Slocable 2 PfG 1169 UV Resistance PV Tape Wire 6mm2 for Solar Energy System
- T/T Credit Card
You May Like
-
Slocable Single Core 4.0mm2 PV DC Solar Battery Panel Inverter Cables
-
Slocable Solar DC Power Cable UV Resistant Class5 Tin Plated 100% Copper Conductor Solar Twin Wire 2.5mm
-
Slocable UV Resistant Class5 Tin Plated 100% Copper Conductor Solar Power Cable 2x2.5mm
-
Slocable High Quality Customized XLPE Insulated TUV Single Core PV Cable Wire Solar Cable 6mm
-
Slocable TUV approved solar power energy system pv solar cable dc 2.5mm2
-
100% copper halogen free cable Photovoltaic wire solar energy cable 2x4mm2 two core
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | CA106B--PE Solar Cable | Type | Insulated | |
| Application | Overhead | |||
| Conductor Material | Copper | Conductor Type | Stranded |
Product Description
Slocable 2 PfG 1169 UV Resistance PV Tape Wire 6mm2 for Solar Energy System
Detail Information for 6.0mm Solar Cable
|
Technical Data of 6.0mm Solar Cable
| Type | Cross Section | Strand Design | Conductor Diameter | Conductor Resistance | Outer Diameter | Rated Voltage | Rated Current |
| PV-1x6mm2 | 6.0mm2 | 81x φ0.3mm | 3.3mm | 3.52 Ω/km | 7.2mm | 1000V | 70A |
(We also produce single core of 2.5mm2, 4mm2 and 10mm2, as well as dual cores,
please consult me directly if necessary)
Wire: Copper (Class 5, tinned) | UV resistance |
Insulation material: XLPE | High wear and abrasion resistance |
Double insulation | Flame test according to: DIN EN 50265-2-1 UL1571(VW-1) |
Halogen-free | Smallest permissible Bending Radius : 5 x D |
High resistance against oil, greases, oxygen and ozone | Temperature range: -40℃ ~ +90℃ |
Microde-resistant | Colours: Black, Red and blue |

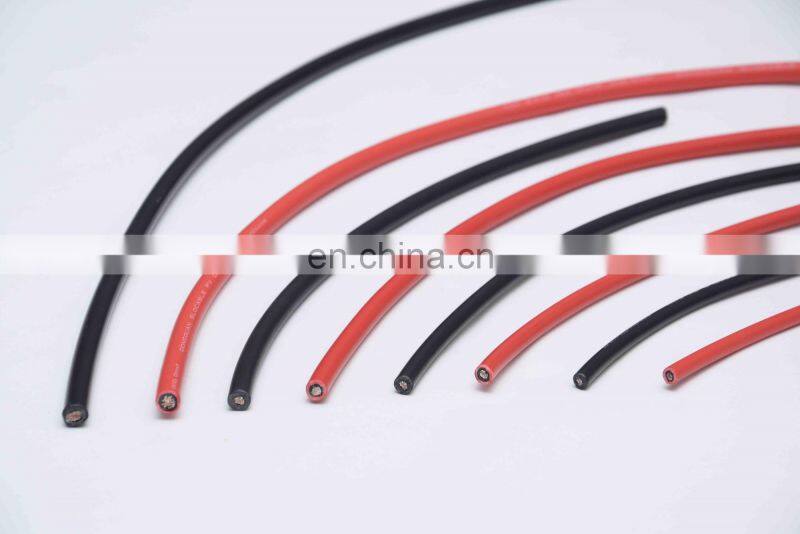

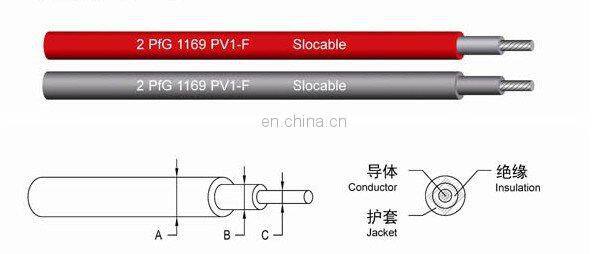

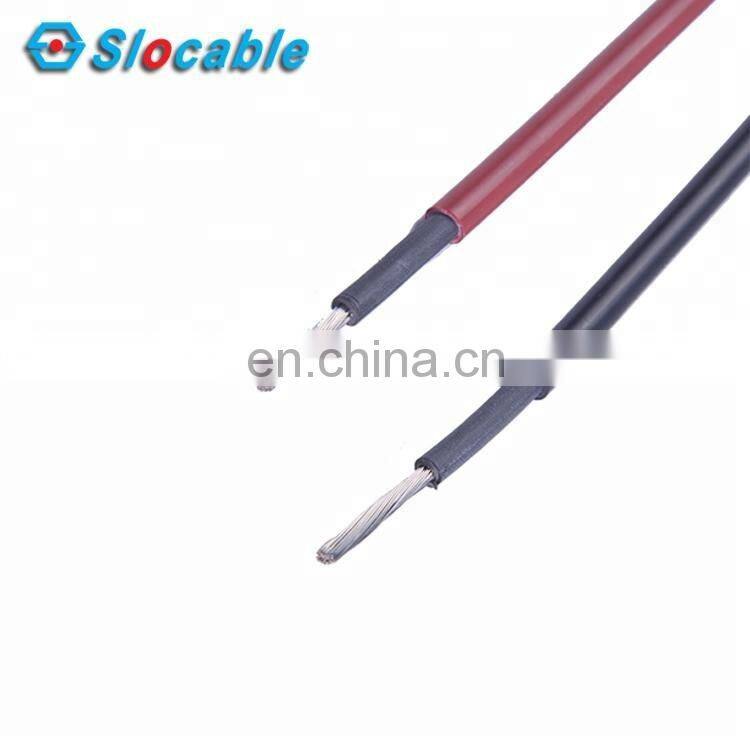

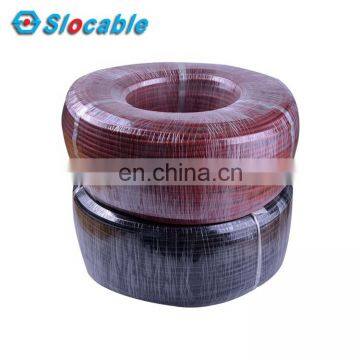

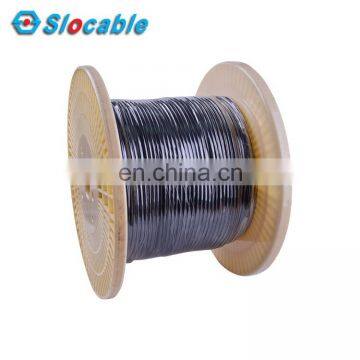

Pictures of 6.0mm Solar Cable
Click the following pictures to get more Slocable products:
Q1: What are your company's Main Products? You are the Manufacturer or the trader?
Solar Cables, Solar Connectors, PV Fuse Holder, Circuit breakers and other solar relative products. We're the Manufacturer with more than 12 years' experience.
1) All raw materials we selected are the highest quality.
2) Professional and skillful workers care for every detail in handling the production.
3) Quality Control Department is specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have a fully successful experience in OEM projects.
What's more, our R&D team will give you professional suggestions.
Q5: How could I get the Sample?
We are honored to offer you samples, which is free, but you will need to pay the international courier freight.
If you have a courier account or forwarder in China, you can send your courier to collect samples.
Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small orders: 3-10 Days;
3) For mass orders: 10-18 Days.
It is better to communicate with us if you are interested to place an order.
IF any inquiry, please do not hesitate to contact me!
