Home > Products > ALLOY STEEL PIPE > AISI 5120 20Cr Hot Forged Seamless Steel Short Pipe

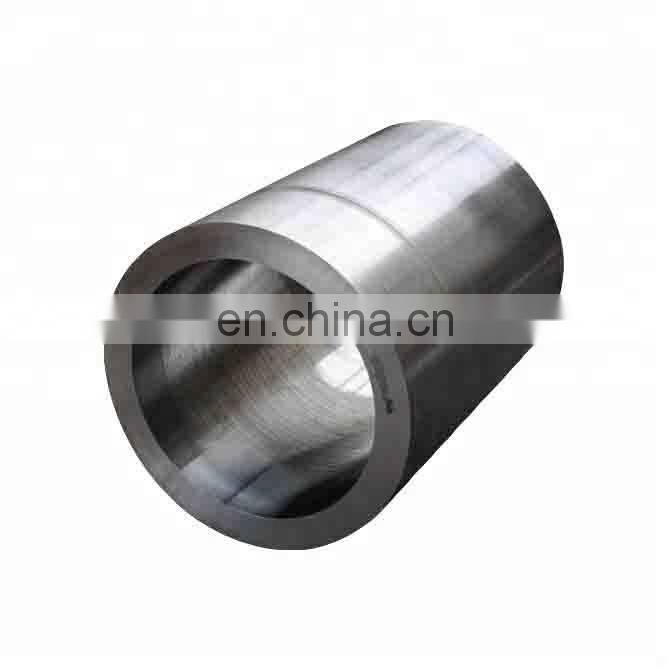

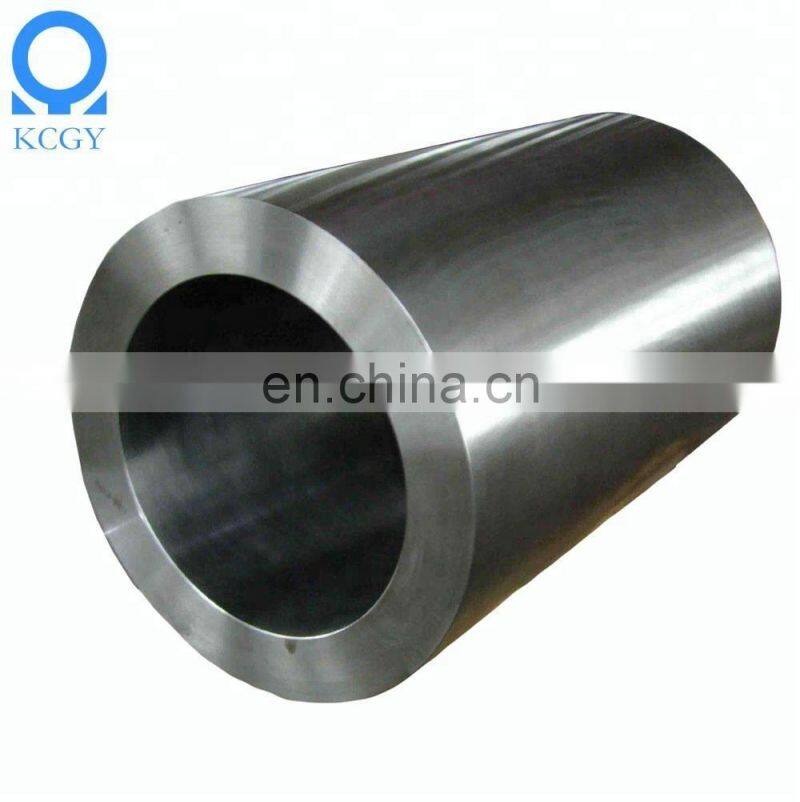

AISI 5120 20Cr Hot Forged Seamless Steel Short Pipe
- shanghai tianjin qingdao
- T/T Credit Card
You May Like
-
Alloy Material No 1.7027 DIN 20Cr4 Hot Forged Seamless Steel Short Pipe
-
ASTM A213 T11 T12 T13 Alloy Seamless Steel Tube for Boiler Superheater Tube
-
ASME SA335 P5 High Pressure Seamless Alloy Steel Boiler Tube
-
Alloy DIN 2528 Grade 12CrMo195 High Pressure Boiler Seamless Steel Pipe
-
ASME SA213 T5 Alloy Steel Seamless High Pressure Boiler Tube
-
Alloy Steel ASME SA335 Standard Grade P92 High Pressure Boiler Tube
Product Details
| Place of Origin | Shandong, China | Certification | BSI | |
| Thickness | 1.5, 50 | Application | Hydraulic Pipe | |
| Technique | Hot Rolled | |||
| Alloy Or Not | Non-alloy | |||
| Outer Diameter | 15 - 1915 mm | |||
| Secondary Or Not | Non-secondary | Special Pipe | API Pipe | |
| Section Shape | Round |
Product Description
ALLOY STEEL 5120 (GB 20Cr).
GENERAL CHARACTERISTICS OF ALLOY STEEL 5120
This is a low-carbon chromium-bearing, case-hardening alloy steel used where good wear resistance and toughness are required.
APPLICATIONS
This alloy is used for highly stressed parts with medium cross sections for automotive and general engineering applications, such as forged camshafts and gears, gear shafts, bushings and connecting rods.
FORGING
This alloy would be forged between 2200 and 1700ºF (1200 and 925ºC.)
HEAT TREATMENT
Annealing: This alloy is seldom annealed. Structures of better machinability are developed by normalizing or by isothermal transformation after forging.
Normalizing: 1650-1700ºF (900-930ºC.)
Carburizing: 1650-1740ºF (900-950ºC) and oil quench.
Hardening: Core: 1560-1620ºF (850-880ºC) and oil quench. Case: 1490-1540ºF (810-840ºC) and oil quench
Tempering: 340-410ºF (170-210ºC.)
Machinability: The alloy is best machined in the normalized condition prior to case hardening.
Weldability: The alloy is easily welded, but should be welded prior to case hardening.
LIAOCHENG KUNCHENG PIPE CO.,LTD
Honed Tube : JIS STKM13C, DIN ST52, SAE1020 ,DIN CK45 etc.
Alloy Seamless Tube: ASME SA-335 (P5, P9, P11, P22 P91) A213-T22/T12 etc.
Hllow seamless bar :ASTM 4130 ,ASTM 4140 etc.
Carbon steel pipe :ASTM A106 Gr.B
Stainless steel pipe : 304, 316, 316L & H grades etc.
Hollow section :S235JR, S275JR, S355JR, P265GH, P355N
Email:seller2(at)
Skype:mrhrc(at)
WhatsApp & Mobile:+8613184174934
