Home > Products > Other bearing > High quality bearing adapter sleeve H 3126 H3126 fyh adapter sleeve adapter sleeves for metric shafts

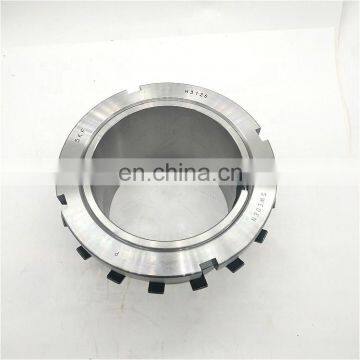

High quality bearing adapter sleeve H 3126 H3126 fyh adapter sleeve adapter sleeves for metric shafts
US$ 1 - 10
/ Piece
1 Piece(Min. Order)
- GuangZhou QingDao ShangHai NingBo
- T/T Credit Card
You May Like
-
MCGILL Cam follower bearing CFH3 CFH3SB Heavy Stud Cam Follower CFH 2 1/2 SB
-
MB 20 Metric Bearing and Shaft Lockwasher MB20
-
Agricultural bearings brand bearings F-232812 bearings
-
KOYO Brand Bearing Original 614 06-11 YSX Eccentric Bearing
-
CSK25PP 25mm Sprag Clutch bearing One Way Bearing with rich supplying
-
High quality lock nut HMV44E HMV44E Hydraulic nuts
Product Details
| Brand Name | FYH Or as your requires | Place of Origin | Shandong, China | |
| Model Number | H3126 |
Product Description
Product Description
High quality bearing adapter sleeve H 3126 H3126 fyh adapter sleeve adapter sleeves for metric shafts
Adapter Sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating, as they can be used on smooth or stepped shafts. Easy to mount and require no additional location on the shaft When used on smooth shafts, the bearing can be located at any position on the shaft
When used on stepped shafts together with a stepped ring, bearings can be accurately positioned axially and bearing dismounting is also facilitated
When used on stepped shafts together with a stepped ring, bearings can be accurately positioned axially and bearing dismounting is also facilitated
Model | d1H(mm) | Dm(mm) | l(mm) | Mass adapter sleeve assembly |
H2304 | 17 | 32 | 31 | 0.05 KG |
H2305 | 20 | 38 | 35 | 0.09 KG |
H2306 | 25 | 45 | 38 | 0.13 KG |
H2307 | 30 | 52 | 43 | 0.16 KG |
H2308 | 35 | 58 | 46 | 0.23 KG |
H2309 | 40 | 65 | 50 | 0.298KG |
H2310 | 45 | 70 | 55 | 0.36 KG |
H2311 | 50 | 75 | 59 | 0.435KG |
H2312 | 55 | 80 | 62 | 0.493KG |
H2313 | 60 | 85 | 65 | 0.57 KG |
H2314 | 60 | 92 | 68 | 0.92 KG |
H2315 | 65 | 98 | 73 | 1.06 KG |
H3120 | 90 | 130 | 76 | 1.81 |
H3121 | 95 | 140 | 80 | 2.09 |
H3122 | 100 | 145 | 81 | 2.32 |
H3124 | 110 | 155 | 88 | 2.70 |
H3128 | 125 | 180 | 97 | 4.46 |
Packing&Shipping
Packaging Details :
1 . Industrial tube packing + cartons + pallets
2 . Individual colorful or white box + carton + pallets
3 . As the clients ' requirement
Transportation :
1 . Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2 . 45 - 200KGS , we will send by air transport . (Fastest and safest, but expensive)
3 . More than 200 KGS, we will send by sea . ( Cheapest and common use )
2 . Individual colorful or white box + carton + pallets
3 . As the clients ' requirement
Transportation :
1 . Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2 . 45 - 200KGS , we will send by air transport . (Fastest and safest, but expensive)
3 . More than 200 KGS, we will send by sea . ( Cheapest and common use )
About Service
Company Information
Jinan KaiDong Bearing Co,Ltd . It is devoted on this filed for many years, Established in 2000, it is located in Tianqiao District of jinan and is specialized in manufacturing the bearings.
With an experienced and professiong team, we have exported our producted to many countries and regions all over the world.Especially Europe and other country. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
With an experienced and professiong team, we have exported our producted to many countries and regions all over the world.Especially Europe and other country. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
FAQ
Q: Why did you choose us?
A. To provide OEM service, we can customize it for you according to samples or drawings.
B. We provide the best quality bearings with reasonable price, low friction, low noise and long service life.
C. With sufficient stock and fast delivery, you can choose our freight forwarder or your freight forwarder.
D. The best service provided by well-trained international sales team.
Q: Do you accept small orders?
100% quality check, once your bearing is standard size bearing, even in one piece, we also accept.
Q: How long is your delivery time?
Generally, if the goods are in stock, it will be 1-3 days. If the goods are out of stock, it will be 15-20 days, depending on thequantity of the order.
Q: Do you provide samples? Is it free or extra?
Yes, we can provide a small amount of free samples. Would you mind paying the freight?
Q: What should I do if I don't see the type of bearings I need?
We have too many bearing series numbers. Sometimes we can't put them all on Alibaba. Just send us the inquiry and we will send you the bearing details.
You are welcome to contact me at any time!
B. We provide the best quality bearings with reasonable price, low friction, low noise and long service life.
C. With sufficient stock and fast delivery, you can choose our freight forwarder or your freight forwarder.
D. The best service provided by well-trained international sales team.
Q: Do you accept small orders?
100% quality check, once your bearing is standard size bearing, even in one piece, we also accept.
Q: How long is your delivery time?
Generally, if the goods are in stock, it will be 1-3 days. If the goods are out of stock, it will be 15-20 days, depending on thequantity of the order.
Q: Do you provide samples? Is it free or extra?
Yes, we can provide a small amount of free samples. Would you mind paying the freight?
Q: What should I do if I don't see the type of bearings I need?
We have too many bearing series numbers. Sometimes we can't put them all on Alibaba. Just send us the inquiry and we will send you the bearing details.
You are welcome to contact me at any time!
