Product Details
| Brand Name | KDwy FYH Or as your requires | Place of Origin | Shandong, China | |
| Model Number | AH222 |
Product Description
Product Description

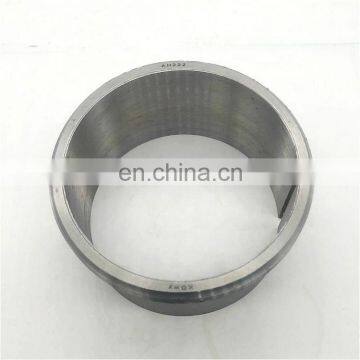

Adapter sleeves AH222 Withdrawal Sleeve AH 222
Adapter Sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating, as they can be used on smooth or stepped shafts. Easy to mount and require no additional location on the shaft When used on smooth shafts, the bearing can be located at any position on the shaft
When used on stepped shafts together with a stepped ring, bearings can be accurately positioned axially and bearing dismounting is also facilitated
When used on stepped shafts together with a stepped ring, bearings can be accurately positioned axially and bearing dismounting is also facilitated
Model | d1H(mm) | Dm(mm) | l(mm) | Mass adapter sleeve assembly |
H2304 | 17 | 32 | 31 | 0.05 KG |
H2305 | 20 | 38 | 35 | 0.09 KG |
H2306 | 25 | 45 | 38 | 0.13 KG |
H2307 | 30 | 52 | 43 | 0.16 KG |
H2308 | 35 | 58 | 46 | 0.23 KG |
H2309 | 40 | 65 | 50 | 0.298KG |
H2310 | 45 | 70 | 55 | 0.36 KG |
H2311 | 50 | 75 | 59 | 0.435KG |
H2312 | 55 | 80 | 62 | 0.493KG |
H2313 | 60 | 85 | 65 | 0.57 KG |
H2314 | 60 | 92 | 68 | 0.92 KG |
H2315 | 65 | 98 | 73 | 1.06 KG |
H3120 | 90 | 130 | 76 | 1.81 |
H3121 | 95 | 140 | 80 | 2.09 |
H3122 | 100 | 145 | 81 | 2.32 |
H3124 | 110 | 155 | 88 | 2.70 |
H3128 | 125 | 180 | 97 | 4.46 |
