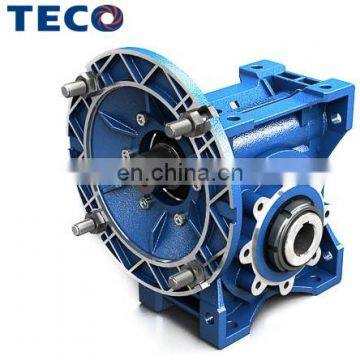

hot seal RV series NMRV power 025-063 Worm geared motor reducer

In 1957 The first motor factory in Taiwan took international standards for motor production.
In 1965 Automatic mass-production of motor @ below 30HP,and record of motor production at 1 set/4min.in Taiwan.
In 1971 Shared 44% motor market in Taiwan,and exported to Japan,America,Australia etc.
In 1977 Manufactured the largest indirect water cooling type motor @ 2000HP in Taiwan.
In 1995 Merged and Acquired Westinghouse Company in USA.
In 2000 TECO Suzhou was found,main products was small-scale motor.
In 2002 TECO Wuxi was founded,main products was larged-scale motor.
In 2004 TECO Jiangxi was set up through merging and acquisition with Jiangxi Sitong Motor Factory,main products was large scale motor.
In 2008 TECO Fujian was found to build the Motor's Supply Chain Center in Fuan.
In 2012 TECO Shanghai was found as the only Sales/Service Headquarter in China for TECO Group.
In 2015 TECO wholly-owned world famous Motovaria S.P.A.

CHARACTERISTICS

NMRV – Sizes: 025-030-040-050-130-150
NMRVpower – Sizes: 063-075-090-110
Available versions: fitted for motor coupling, with input shaft, with torque limiter
Power up to 18,5 kW
Cases up to 110 in die-cast aluminium alloy and over 130 in G200 grey cast iron
Ratios between 5 and 100
Max torque 1.550 Nm and admissible radial loads max 18.000 N
Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity
Worm wheel: bronze Cu Sn12 Ni2 (UNI7013-10)
Ground worm profile ZI (UNI4760)
Loading capacity in accordance with: ISO.14521, DIN.3996, BS 721, AGMA 6034, ISO 6336, DIN 3990, DIN 743, ISO 281
Size 030 and over are painted with RAL 5010 blue epoxy-polyester powder
Available with pre-stage unit: HA31 for NMRV040/NMRV050, HW 030/040 for NMRV-P Series
Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRVpower+NMRV, NRV+NMRV, NRVpower+NMRV, HA31+NMRV, HW/NMRVpower, IHW/NMRVpower
Options: protection cover, torque arm, output flange, output shaft kit, torque limiter, viton oil seals, low/high temperature and food grade oil, filling/drain/breather/level plug, reinforced output
