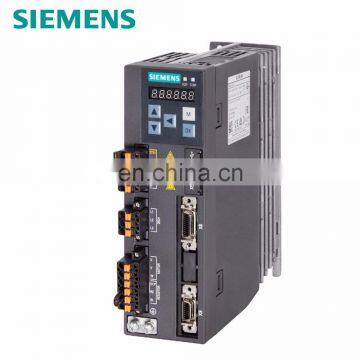

SIEMENS SINAMICS V90 Basic Servo Drive System

SINAMICS V90

The performance-optimized and easy-to-use servo drive system

The performance-optimized, user-friendly servo drive system comprises a SINAMICS V90 servo drive and a SIMOTICS S-1FL6 servomotor. Different frame sizes and motor shaft heights cover a wide range of applications for operation on single- and three-phase line supplies. There are eight servo drive frame sizes and seven motor shaft heights with power ratings ranging from 0.05 to 7.0 kilowatts, to realize a wide range of applications, with the focus on dynamic motion and processing – for example positioning, transporting and winding. In addition to operation in the TIA Portal V14 with the new SIMATIC S7-1500 T-CPU Advanced Controller, the servo drive system is also suitable for use with the SIMATIC S7-1500 Advanced Controller and the SIMATIC S7-1200 Basic Controller.

Optimized servo performance

• Advanced one-button tuning and real-time auto tuning enables machines to achieve a high dynamic performance

 • Automatic suppression of machine resonances

 • 1 MHz high-frequency pulse train input

• Different encoder types to address the requirements of your applications

Easy to use

• Simple connection to a control system

• Easy, all from a single source

 • Easy servo tuning and machine optimization

 • Easy commissioning with SINAMICS V-ASSISTANT

 • Parameter cloning

 • Easy integration via PTI, PROFINET, USS, Modbus RTU

Cost effective

• Integrated control modes: Pulse train positioning, internal positioning with traversing block or Modbus, speed and torque control modes

 • Integrated internal positioning function

 • Integrated braking resistor in all frame sizes

 • Integrated holding brake switch (for the 400 V version), no external relay necessary

Reliable operation

• High-quality motor bearings

• All motors have IP65 degree of protection and are equipped with oil seal

• Integrated Safe Torque Off (STO)
