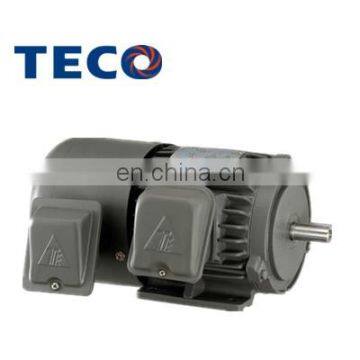

TECO brand 3-Phase 55kw 5~100HZ frequency converter Duty low voltage Induction Motor

TECO Inverter Duty Induction Motor

In 1957 The first motor factory in Taiwan took international standards for motor production.
In 1965 Automatic mass-production of motor @ below 30HP,and record of motor production at 1 set/4min.in Taiwan.
In 1971 Shared 44% motor market in Taiwan,and exported to Japan,America,Australia etc.
In 1977 Manufactured the largest indirect water cooling type motor @ 2000HP in Taiwan.
In 1995 Merged and Acquired Westinghouse Company in USA.
In 2000 TECO Suzhou was found,main products was small-scale motor.
In 2002 TECO Wuxi was founded,main products was larged-scale motor.
In 2004 TECO Jiangxi was set up through merging and acquisition with Jiangxi Sitong Motor Factory,main products was large scale motor.
In 2008 TECO Fujian was found to build the Motor's Supply Chain Center in Fuan.
In 2012 TECO Shanghai was found as the only Sales/Service Headquarter in China for TECO Group.
In 2015 TECO wholly-owned world famous Motovaria S.P.A.

Features:

Suitable for variable torque & constant torque
Reliable insulation systems
High impulse duty
The class H of AI wire coil, and twice varnishes process.

Type Code: AEHEVS TOP

3-Phase Inverter Duty Induction Motor
Low Voltage, TEFC, NEMA T-Frame, Design B or C
Output 1 ~ 300 HP
Pole (Speed) 2 ~ 6
Voltage below 600V
Frequency (Hz) 50, 60
Frame Size 143 ~ 449
Protection Enclosure IP 54
Design Standard: NEMA MG-1, MG-13
Environment: non-hazardous
Stator Insulation: Class F Insulation

Type Code: EVEF EVVF

3-Phase Inverter Duty Induction Motor
Low Voltage, TEFC, IEC standard
Output 1/4 ~ 270 HP
Pole (Speed) 2, 4, 6, 8
Voltage below 600V
Frequency (Hz) 50, 60
Frame Size 71 ~ 250M
Torque 60Hz ~ 10Hz Constant Torque
10Hz ~ 6Hz Variable Torque
Protection Enclosure IP 54 (main motor and forced cooling fan
Design Standard: IEC 34-1
Environment: non-hazardou
Stator Insulation: Class F Insulation
