ABB smoke-venting three-phase induction motors

FOB Price

USD $200 - $6,600 / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port ShangHai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ABB		Place of Origin	Shanghai, China
Model Number	M2SV

Product Description

Summary:

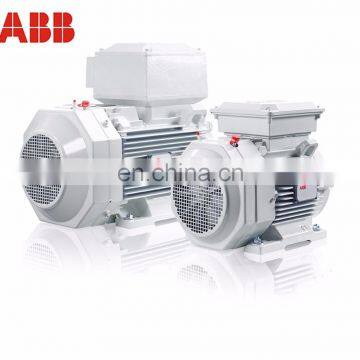

M2SV series smoke-venting three-phase induction motors are suitable for extracting of strong smoke and high-temperature poisonous gas in case of fire emergency.Motors are extensively applied for fire-fighting and ventilation system of constructions like for instance tunnels,metros,shopping malls,closed parking areas and high buildings

Outstanding features:

●Insulation class F and H are available to improve the motor's life at high temperatures;

●High reliability ensures the continual running time at rated abnormal high temperatures.

Mechanical designs:

●Terminal boxes

Terminal boxes remounted either on the top,or on either side of the motor.The terminal box of motors 80 to 132 can be turned 4*90° and those of 160-315 can rotated 2*180°.To enable the supply of suitable terminations for the motor,please state cable type,quality and size when ordering.

●Polished outward appearance

The external design of the motors is consistent with the design of the ABB*M2000*Family.The frame,.cooling ribs,terminal box and fan cover have been reshaped to meet customer's design preference.

Conditions of operation:

duty:S1

voltage:220~240V;380~420V,50HZ

380~420V;660~690V,50HZ

an altitude should not be over 1000 meters above sea level

insulation class:F or H

output power:0.18kW~200kW

an ambient temperature not exceeding:+40℃

Technical data table

Dimension Drawing

Packing & Delivery

Packaging
Packaging Details	The normal package is wooden box same as the ABB standards. If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use PE film for packing or pack it according to customers special request.
Delivery	2 days after deposit 30% if there are stocks,or else 30 days after deposit 30%.

FAQ

Q1. What is your terms of payment?

A:Usually,we accept T/T,irrevocable L/C at sight.For long term business relations, we have more advantage terms for payment.
Q2. What is your terms of delivery?

A: We accept FOB,CIF. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
A:It usually takes 2~14 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
