Digital Electric Strain Direct Soil Shear Apparatus/ Civil Engineering Equipment

FOB Price

USD $999 - $2,999 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Hensgrand		Place of Origin	Shandong, China
Model Number	HS-1		Power	Electronic

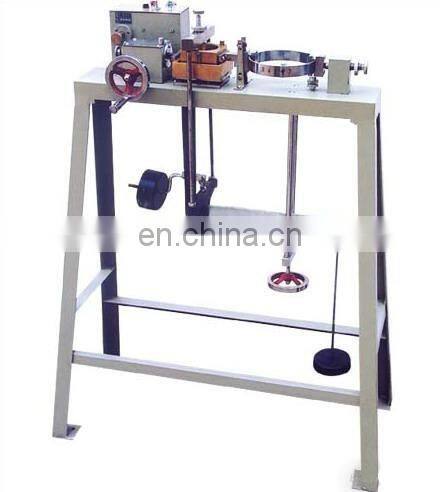

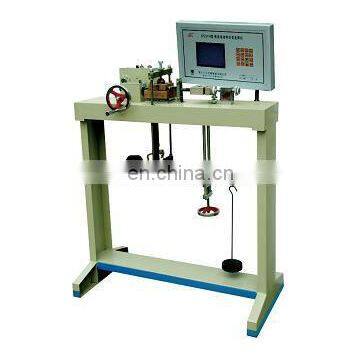

Digital Electric Strain Direct Shear Apparatus / Civil Engineering Equipment

Application:

This apparatus is used to test resisting shear strength of soil specimen.

The direct shear apparatus is driven by a stepper motor and controlled by

a microprocessor system, with load cell and linear electronic transducers

to operate independently and perform standard or cyclic tests. Programmed

by keyboard input and obtaining all data concerning load, and horizontal

displacements from the display.

Specification:

1. Large LCD display

2. Accepts specimens: 61.8x20mm

3. Area of soil sample: 30cm2

4. Lever ratio:1:12

5. Vertical Loading:50, 100, 200, 300, 400(Kpa)

6. Max. horizontal loading:1.2KN

7. Variable speed, 0.01 to 2.99mm/minute

8. Voltage: AC220VAC 60 Hz

9. Dimension: 1000x680x1300mm; weight: 215kg
